FX 25 LE - Weed Eater Featherlite Extreme String Trimmer, Type 3 Handle & Shaft Assembly Parts Diagram

Featherlite Extreme String Trimmer, Type 3

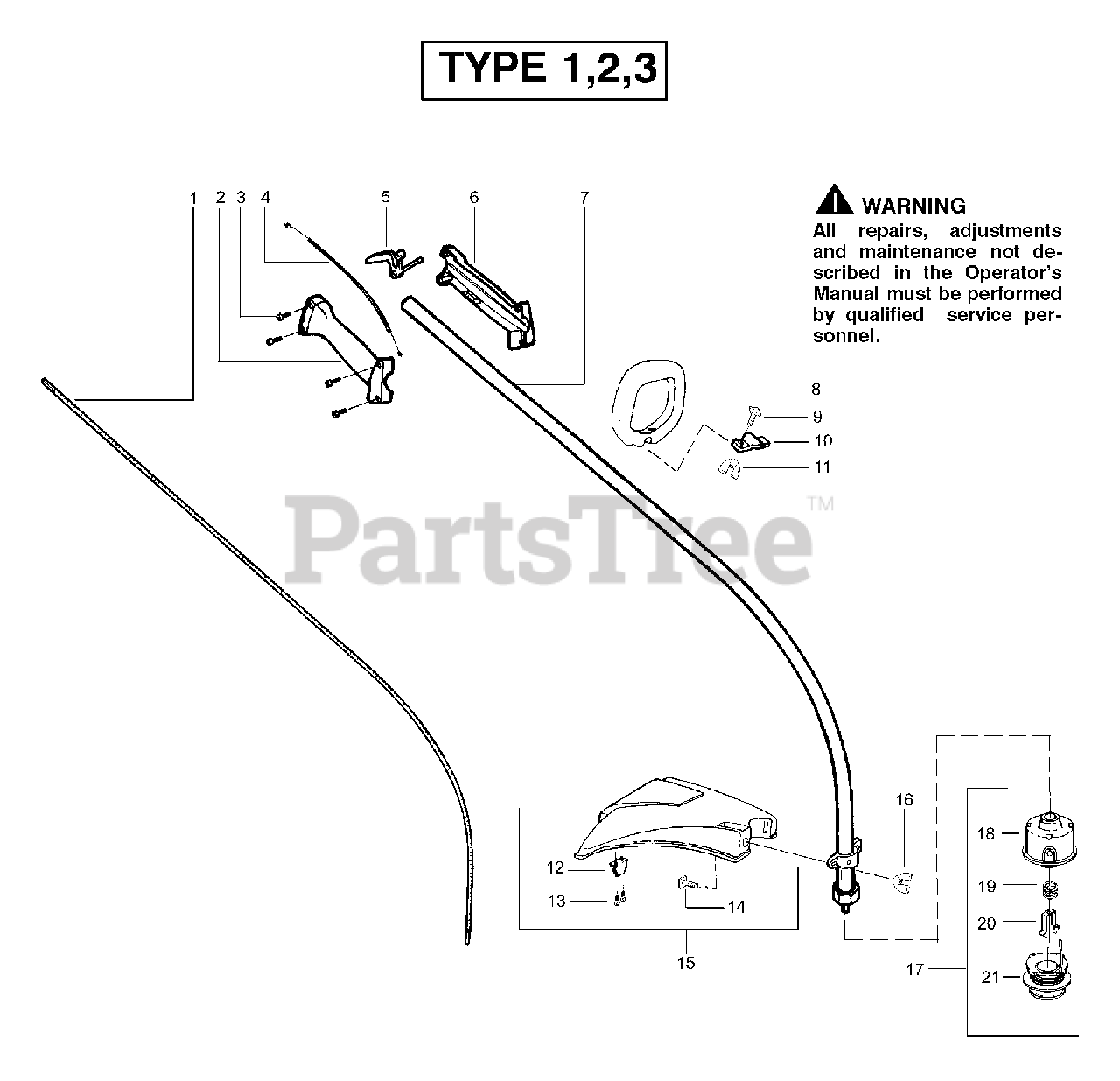

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530095803

Shaft Flex

$9.99

$

In Stock, only 1 left!

0

2

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 530016349

Screw Throttle Hsg.

$6.49

$

In Stock, only 4 left!

0

4

Poulan 530071548

Assy Throttle Cable

$

$

Not available

5

Poulan 530038682

Trigger

$3.99

$

In Stock, Qty 13

0

6

Poulan 530038580

Throttle Hsg. (Left)

$6.49

$

In Stock, only 1 left!

0

7

Poulan 530071315

Assy Drive Shaft Hsg.

$

$

Not available

8

Poulan 530038584

Handle Assist

$

$

Not available

9

Poulan 530015820

Bolt Handle/Shield

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 530038599

Clamp Handle

$2.49

$

In Stock, only 3 left!

0

11

Poulan 530016118

Wingnut Handle/Shield
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530052286

Line Limiter

$

$

Not available

13

Poulan 530015886

Screw Line Limiter

$6.49

$

In Stock, Qty 17

0

14

Poulan 530015820

Bolt Handle/Shield

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530069759

Kit Shield Assy

Note: (Incl. 12,13,14,16)

$21.99

$

Usually ships in 3-10 days

0

16

Poulan 530016118

Wingnut Handle/Shield
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

17

Poulan 952711593

Accy W/E TNG 5 Cutting Head

Note: (Incl. 18-21)

$

$

Not available

18

Poulan 530095770

Assy Hub

$15.99

$

Usually ships in 3-10 days

0

19

Poulan 530401958

Spring Compression

$4.99

$

In Stock, Qty 6

0

20

Poulan 530401957

Clip Retainer Head

$4.99

$

In Stock, Qty 6

0

21

Poulan 952711594

Accy W/E Spool w/Line

$6.49

$

Usually ships in 3-10 days

0

Poulan 530163531

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530054864

Decal Start Inst.

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530055350

Decal Shaft Warning

Note: Not Shown

$

$

Not available
