FX 26 S - Weed Eater Featherlite Extreme String Trimmer, Type 1 Cutting Equipment Type 1 Parts Diagram

Featherlite Extreme String Trimmer, Type 1

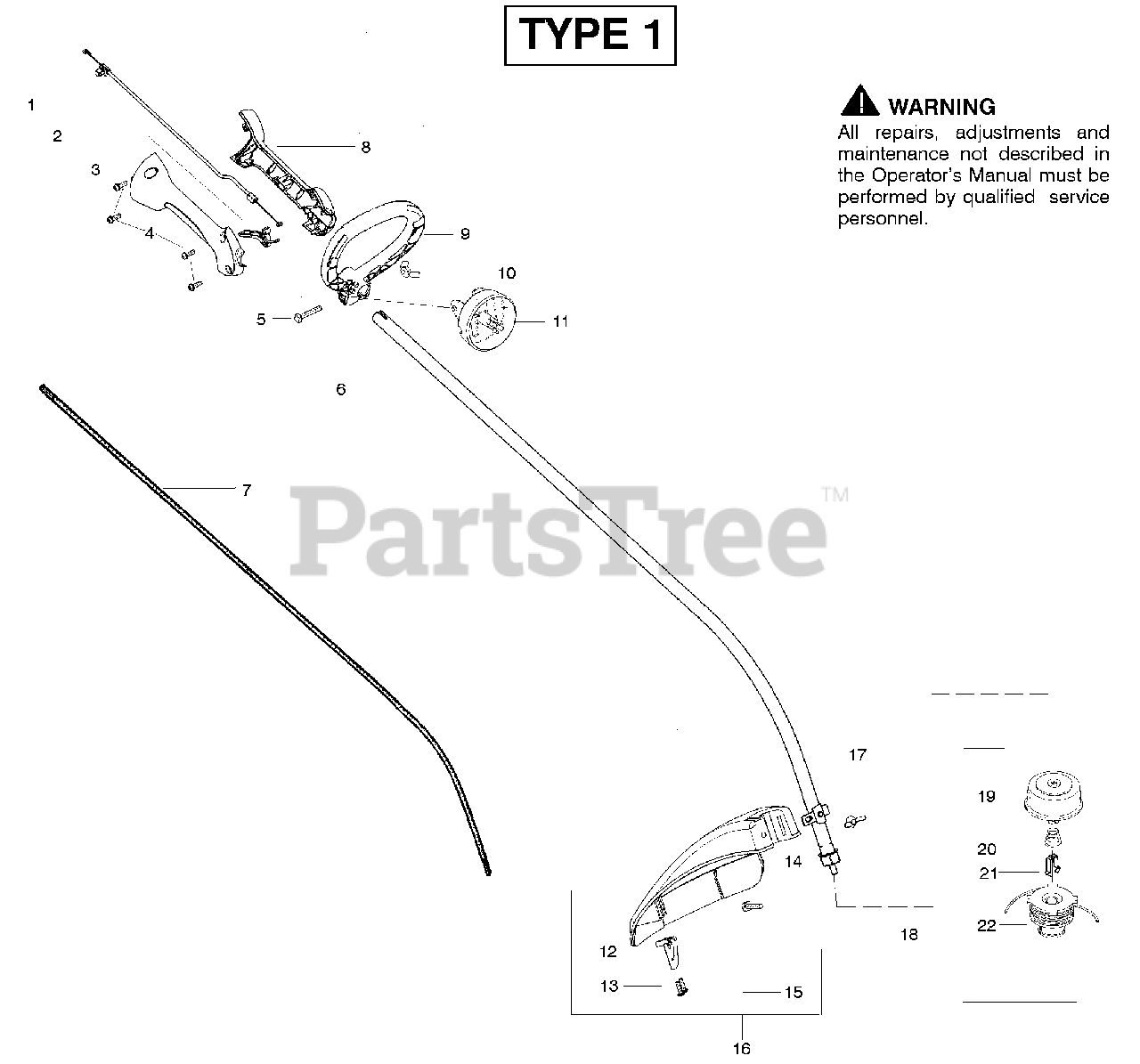

Cutting Equipment Type 1 Parts Diagram

  • Title

1

Poulan 530057991

Assy-Throttle Cable

$13.99

$

In Stock, only 2 left!

0

2

Poulan 530058000

Trigger

$

$

Not available

3

Poulan 530057582

Throttle Hsg. (Right)

$11.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

Screw-Throttle Hsg.

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530015786

Bolt-Handle

$5.99

$

In Stock, only 4 left!

0

6

Poulan 530071971

Kit-Drive Shaft Assy.
(Superseded to 581494909)

$

$

Not available

7

Poulan 530095803

Shaft- Flex

$

$

Not available

8

Poulan 530057581

Throttle Hsg. (Left)

$

$

Not available

9

Poulan 545026201

Assy-Handle

Note: (Incl . 5,10,11)

$

$

Not available

10

Poulan 530016152

Wingnut
(Superseded to 530401992)

$

$

Not available

11

Poulan 530150338

Spool Buddy
(Superseded to 545026201)

$

$

Not available

12

Poulan 530052286

Line Limiter

$

$

Not available

13

Poulan 530015966

Screw-Line Limiter

$

$

Not available

14

Poulan 530095563

Dust Cup

$29.99

$

Usually ships in 3-10 days

0

15

Poulan 530015820

Bolt

$2.49

$

In Stock, Qty 10

0

16

Poulan 530071795

Kit-Shield Assy

Note: (Incl. 12,13,15,17)

$

$

Not available

17

Poulan 530016152

Wingnut
(Superseded to 530401992)

$

$

Not available

18

Poulan 952711621

Accy-TNG VI Cutting Head

Note: (Incl. 19,20,21,22)

$

$

Not available

19

Poulan 530095776

Assy-Hub
(Superseded to 530071306)

$

$

Not available

20

Poulan 530053241

Spring-Compression

$

$

Not available

21

Poulan 530401957

Clip-Retainer-Head

$3.99

$

In Stock, Qty 20+

0

22

Poulan 952711616

Accy- Spool w/Line
(Superseded to 952701719)

$

$

Not available

22

Poulan 530055350

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
