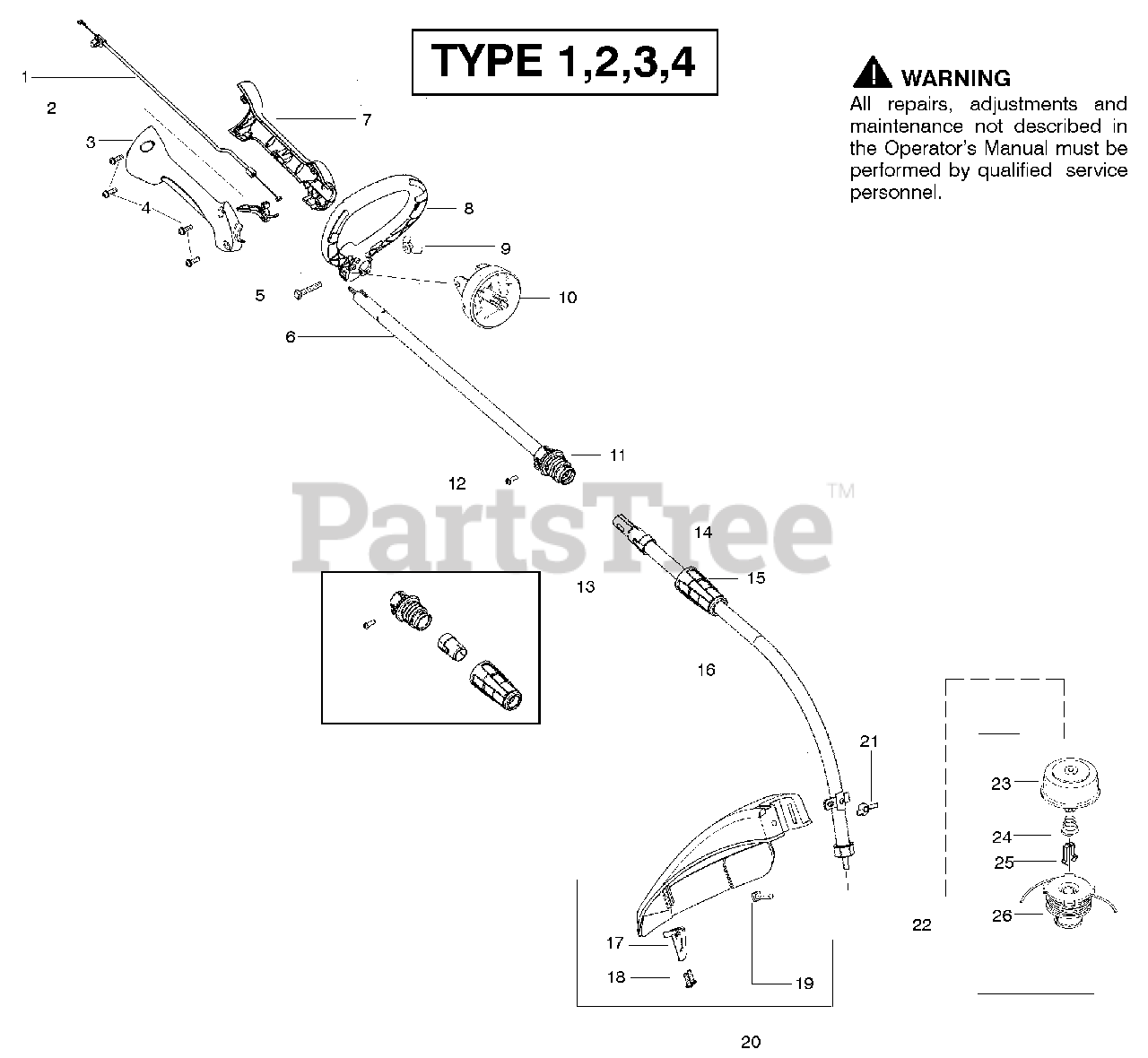

FX 26 SC - Weed Eater Featherlite Extreme String Trimmer, Type 2 Cutting Equipment Type 1,2,3,4 Parts Diagram

Featherlite Extreme String Trimmer, Type 2

Cutting Equipment Type 1,2,3,4 Parts Diagram

  • Title

1

Poulan 530057991

Assy-Throttle Cable

$13.99

$

In Stock, only 3 left!

0

2

Poulan 530058000

Trigger

$6.49

$

In Stock, Qty 20+

0

3

Poulan 530057582

Throttle Hsg. (Right)

$11.99

$

In Stock, only 2 left!

0

4

Poulan 530015880

Screw-Throttle Hsg.

$4.99

$

In Stock, Qty 8

0

5

Poulan 530015821

Bolt-Handle

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 545008059

Kit-Drive Shaft
(Superseded to 545008061)

Note: (Incl. 11,12)

$26.99

$

In Stock, Qty 6

0

7

Poulan 530057581

Throttle Hsg. (Left)

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 545026201

Assy-Handle

Note: (Incl . 5,9,10)

$

$

Not available

9

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530150338

Spool Buddy
(Superseded to 545026201)

$

$

Not available

11

Collet (Ref. 13)

$

$

Not available

12

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

13

Poulan 545008057

Kit-Coupler Shaft
(Superseded to 581535001)

Note: (Incl. 11,12,14,15)

$9.99

$

Usually ships in 3-10 days

0

14

Collar-Shaft (Ref. 13)

$

$

Not available

15

Nut-Collet (Ref. 13)

$

$

Not available

16

Poulan 545008066

Kit-Shaft Lower
(Superseded to 581494907)

Note: (Incl. 14,15)

$53.99

$

In Stock, Qty 6

0

17

Poulan 530052286

Line Limiter

$

$

Not available

18

Poulan 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 530071795

Kit-Shield Assy

Note: (Incl. 17,18,19,21)

$18.99

$

In Stock, only 1 left!

0

21

Poulan 530016152

Wingnut
(Superseded to 530401992)

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 952711621

Accy-TNG VI Cutting Head

Note: (Incl. 23,24,25,26)

$

$

Not available

23

Poulan 530095776

Assy-Hub
(Superseded to 530071306)

$

$

Not available

24

Poulan 530053241

Spring-Compression

$

$

Not available

25

Poulan 530401957

Clip-Retainer-Head

$4.99

$

In Stock, Qty 8

0

26

Poulan 952711616

Accy- Spool w/Line

$

$

Not available

26

Poulan 545207301

Decal-Shaft Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 527291101

Decal-Spark Arrestor Warning

Note: Not Shown

$

$

Not available
