FX691V-CS50 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

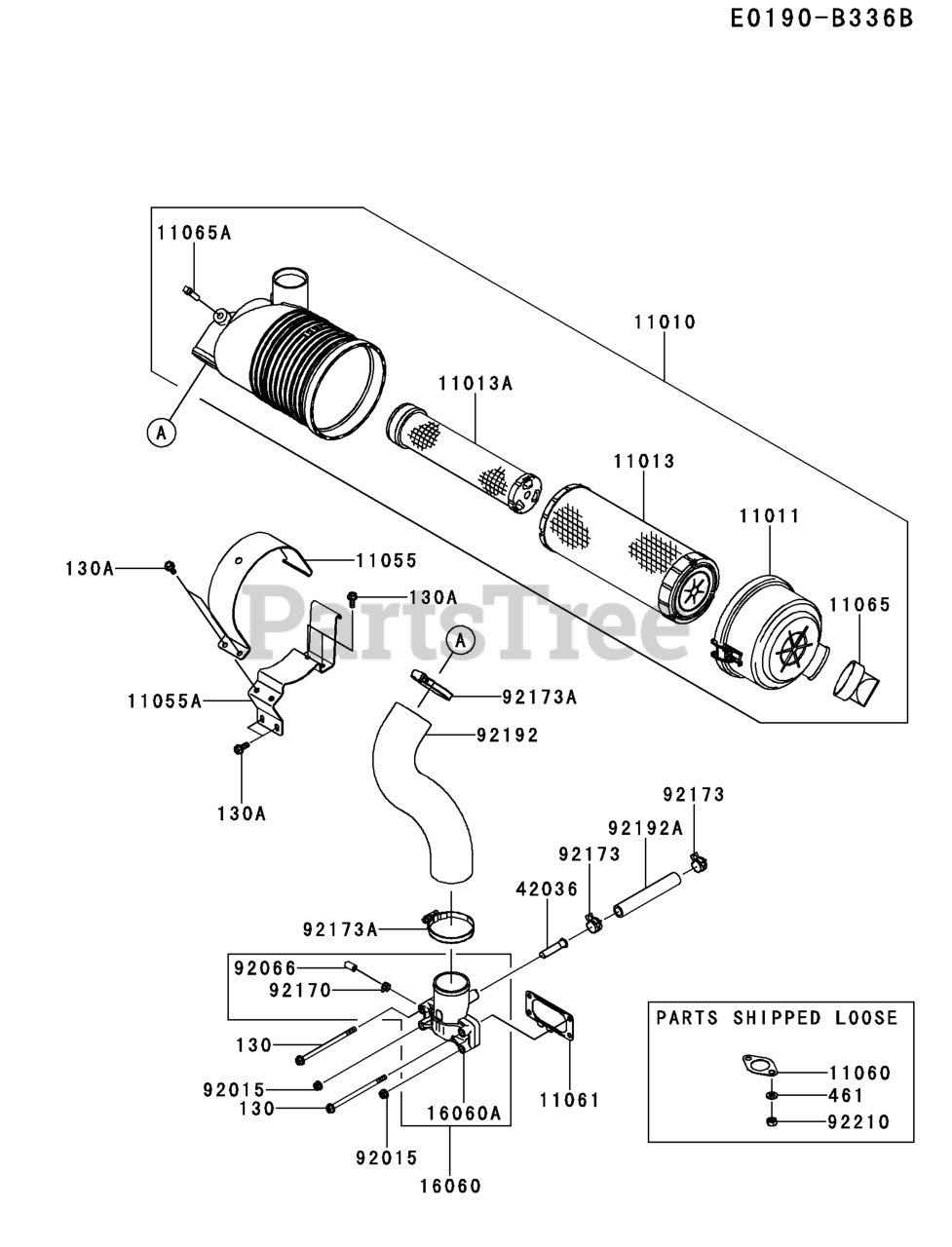

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7028

FILTER-ASSY-AIR

$118.99

$

In Stock, Qty 20+

0

11011

Kawasaki 11011-7056

CASE-AIR FILTER

$47.99

$

In Stock, Qty 20+

0

11013

Kawasaki 11013-7044

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7045

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11055

Kawasaki 11055-7011-9H

BRACKET

$13.99

$

In Stock, Qty 14

0

11055A

Kawasaki 11055-7012-9H

BRACKET

$20.99

$

In Stock, Qty 12

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7043

GASKET,CARBURETOR

$3.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7031

CAP

$13.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7032

CAP

$4.49

$

In Stock, only 1 left!

0

16060

Kawasaki 16060-0047

PIPE-INTAKE

$44.99

$

Usually ships in 2-5 days

0

16060A

Kawasaki 16060-7040

PIPE-INTAKE

$41.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-7022

SLEEVE,BREATHER
(Superseded to 420360781)

$1.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0095

PLUG

$5.49

$

In Stock, Qty 10

0

92170

Kawasaki 92170-2042

CLAMP

$1.49

$

In Stock, Qty 10

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 10

0

92173A

Kawasaki 92173-7010

CLAMP

$8.99

$

In Stock, Qty 20+

0

92192

Kawasaki 92192-1360

TUBE

$56.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-7146

TUBE,12.6X18.6X118

$2.49

$

In Stock, Qty 19

0

92210

Kawasaki 92210-7027

NUT,M8

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130AA06110

BOLT-FLANGED,6X110

$3.49

$

Usually ships in 2-5 days

0

130A

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
