FX730V-AS01 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

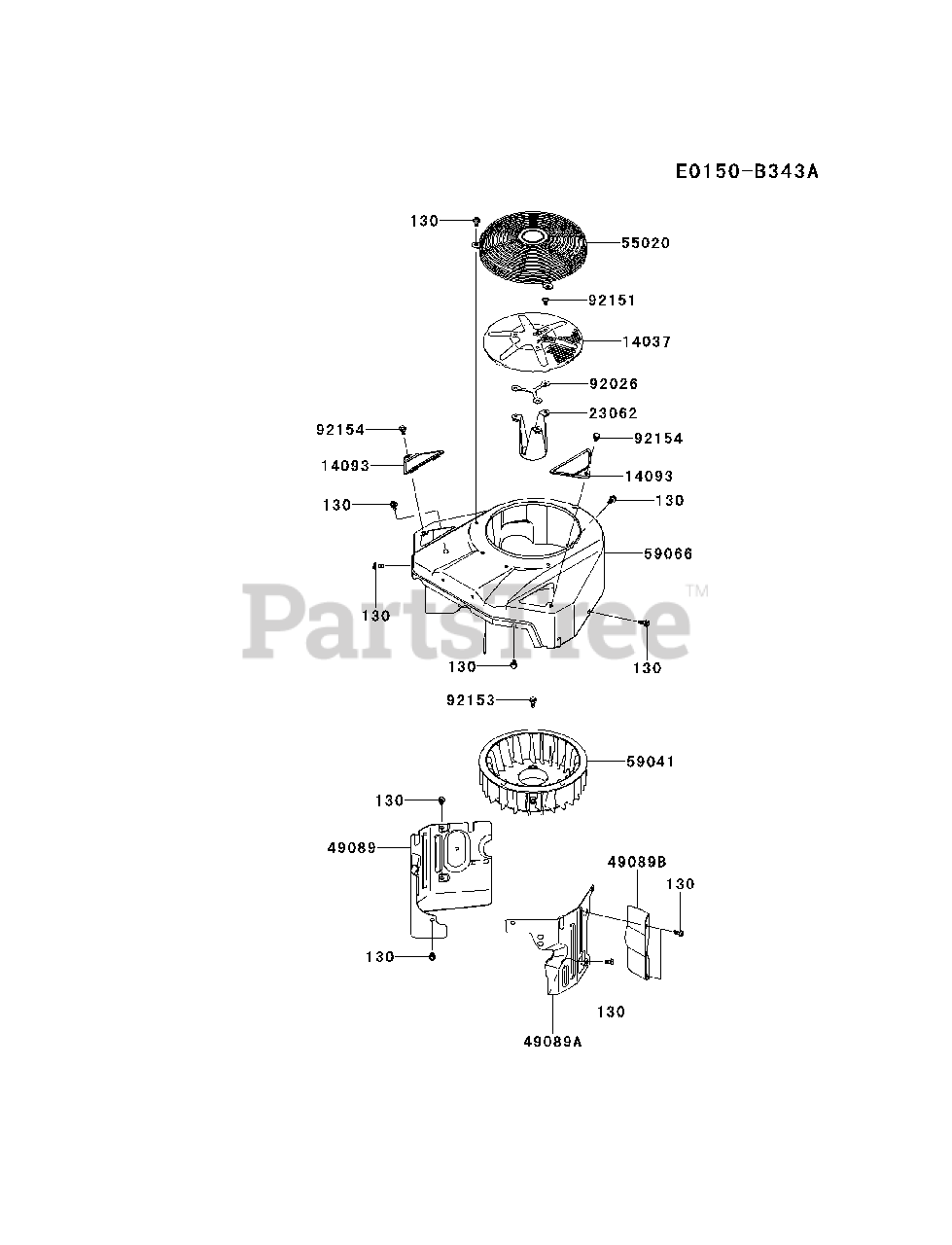

COOLING-EQUIPMENT Parts Diagram

  • Title

130

Kawasaki 130BA0612

BOLT-FLANGED,6X12
(Superseded to 92009-7008)

$1.99

$

In Stock, Qty 20+

0

14037

Kawasaki 14037-7008-9H

SCREEN
(Superseded to 14037-7008)

$35.99

$

In Stock, Qty 11

0

14093

Kawasaki 14093-0235

COVER

$2.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-7024

BRACKET-COMP

$12.99

$

In Stock, only 2 left!

0

49089

Kawasaki 49089-0927

SHROUD-ENGINE,#1

$34.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 49089-0928

SHROUD-ENGINE,#2

$33.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 49089-7076

SHROUD-ENGINE
(Superseded to 49089-7076-753)

$7.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-7017-9H

GUARD
(Superseded to 55020-7014-9H)

$50.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-0013

FAN

$

$

Not available

59066

Kawasaki 59066-0749

HOUSING-FAN

$

$

Not available

92026

Kawasaki 92026-7007

SPACER

$5.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

BOLT,FLANGED,6X16

$4.49

$

In Stock, only 1 left!

0

92154

Kawasaki 92154-1119

BOLT

$2.49

$

In Stock, Qty 6

0
