FX730V-AS39 - Kawasaki Engine FX730V-AS39 CYLINDER & CRANKCASE Parts Diagram

Engine

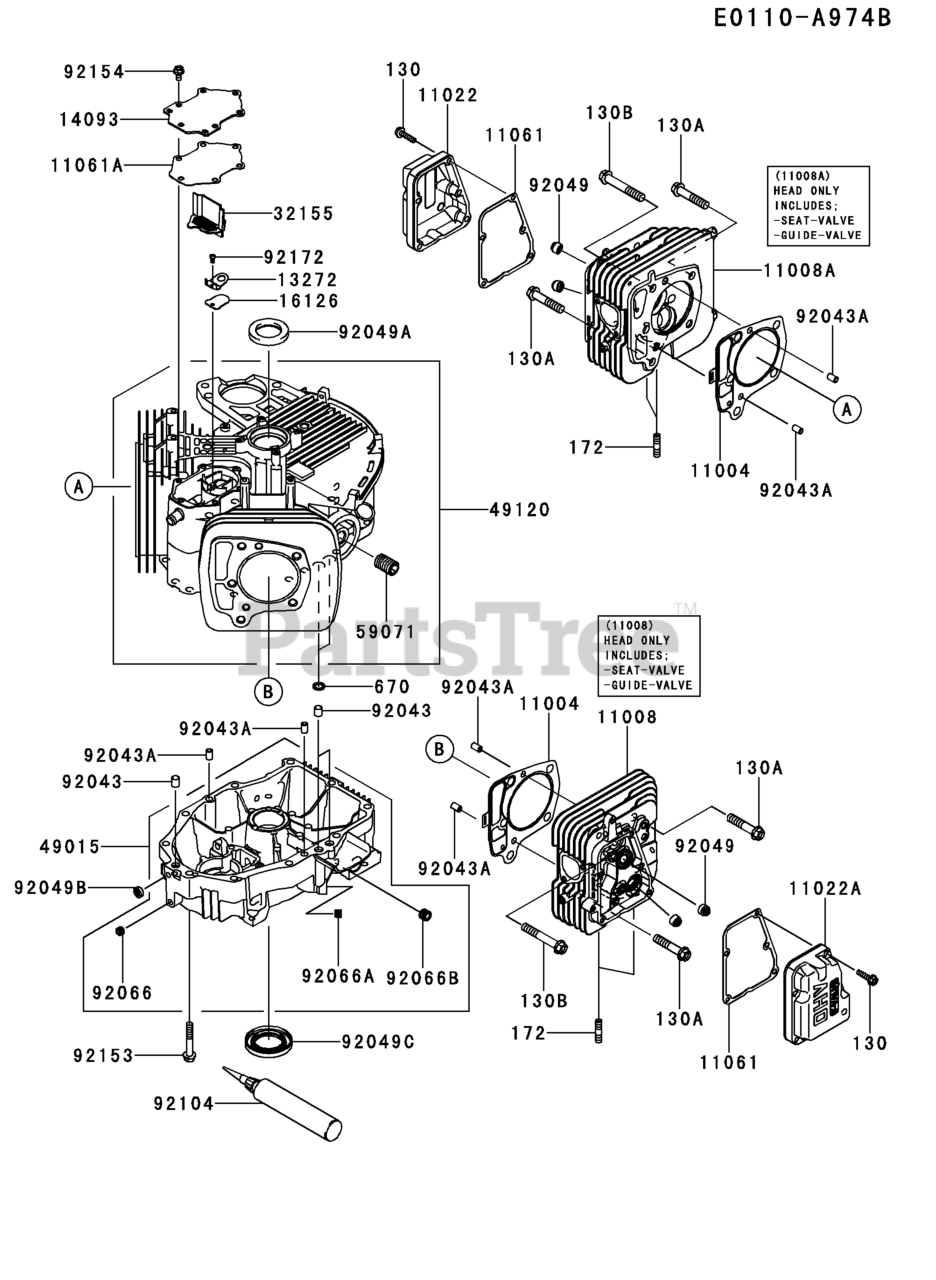

FX730V-AS39 CYLINDER & CRANKCASE Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7026

CYLINDER HEAD GASKET
(Superseded to KM-11004-0762)

$33.99

$

Usually ships in 3-6 days

0

11008

Cub Cadet KM-11008-0845

HEAD ASSEMBLY-# 2 CYL

$236.99

$

In Stock, only 1 left!

0

11008A

Cub Cadet KM-11008-0861

CYLINDER HEAD-#1

$236.99

$

In Stock, only 1 left!

0

11022

Cub Cadet KM-11022-0046

ROCKER CASE #1 CYLINDER

$17.99

$

Usually ships in 2-5 days

0

11022A

Cub Cadet KM-11022-0047

ROCKER CASE #2

$17.99

$

In Stock, only 1 left!

0

11061

Cub Cadet KM-11061-1285

ROCKER COVER GASKET

$4.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7094

BREATHER GASKET

$8.99

$

In Stock, Qty 11

0

13272

Cub Cadet KM-13272-1374

PLATE-BREATHER

$1.99

$

In Stock, Qty 16

0

14093

Cub Cadet KM-14093-0455

BREATHER COVER

$2.99

$

Usually ships in 2-5 days

0

16126

Cub Cadet KM-16126-7020

VALVE- BREATHER

$4.99

$

In Stock, Qty 17

0

32155

Cub Cadet KM-32155-2214

BREATHER PIPE

$2.99

$

In Stock, Qty 7

0

49015

Cub Cadet KM-49015-0023

CRANKCASE COVER

$204.99

$

In Stock, only 1 left!

0

49120

Cub Cadet KM-49120-0858

HOUSING-CRANKCASE

$609.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-0743

JOINT-OIL FILTER

$2.99

$

Usually ships in 2-5 days

0

92043

Cub Cadet KM-92043-0858

PIN

$2.49

$

In Stock, Qty 17

0

92043A

Cub Cadet KM-92043-1263

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

OIL SEAL VALVE ST

$8.49

$

In Stock, Qty 20+

0

92049A

Cub Cadet KM-92049-7010

OIL SEAL

$3.49

$

In Stock, Qty 14

0

92049B

Cub Cadet KM-92049-7019

OIL SEAL -SO 8X14X5

$2.49

$

In Stock, Qty 17

0

92049C

Cub Cadet KM-92049-7028

OIL SEAL CRANK

$14.99

$

In Stock, Qty 15

0

92066

Cub Cadet KM-92066-0880

PLUG-OIL

$3.99

$

In Stock, only 2 left!

0

92066A

Cub Cadet KM-92066-0881

PLUG

$4.49

$

In Stock, Qty 11

0

92066B

Cub Cadet KM-92066-2223

PLUG-CRANKCASE CVR

$1.99

$

Usually ships in 2-5 days

0

92104

Cub Cadet KM-92104-0007

GASKET-LIQUID

$51.99

$

In Stock, Qty 5

0

92153

Cub Cadet KM-92153-7054

BOLT

$2.99

$

In Stock, Qty 9

0

92154

Cub Cadet KM-92154-2938

FLANGED BOLT

$0.99

$

In Stock, Qty 10

0

92172

Cub Cadet KM-92172-0870

SCREW 4 x 8

$0.99

$

In Stock, Qty 5

0

130

Cub Cadet KM-130BA0625

FLANGED BOLT 6X25

$1.49

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130CA1050

FLANGED BOLT

$4.49

$

In Stock, only 3 left!

0

130B

Cub Cadet KM-130CA1065

FLANGED BOLT

$2.99

$

Usually ships in 2-5 days

0

172

Cub Cadet KM-172BA0822

BOLT-STUD 8 x 22

$2.49

$

In Stock, Qty 20+

0

670

Cub Cadet KM-670B2011

O-RING

$1.49

$

Usually ships in 2-5 days

0

Cub Cadet 952SFX730S395

COMPLETE ENGINE FX730

$2715.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-59341-0017

SHORT BLOCK 1-1/8" x 108.8mm

$1947.99

$

Usually ships in 2-5 days

0
