FX730V-AS39 - Kawasaki Engine FX730V-AS39 LUBRICATION Parts Diagram

Engine

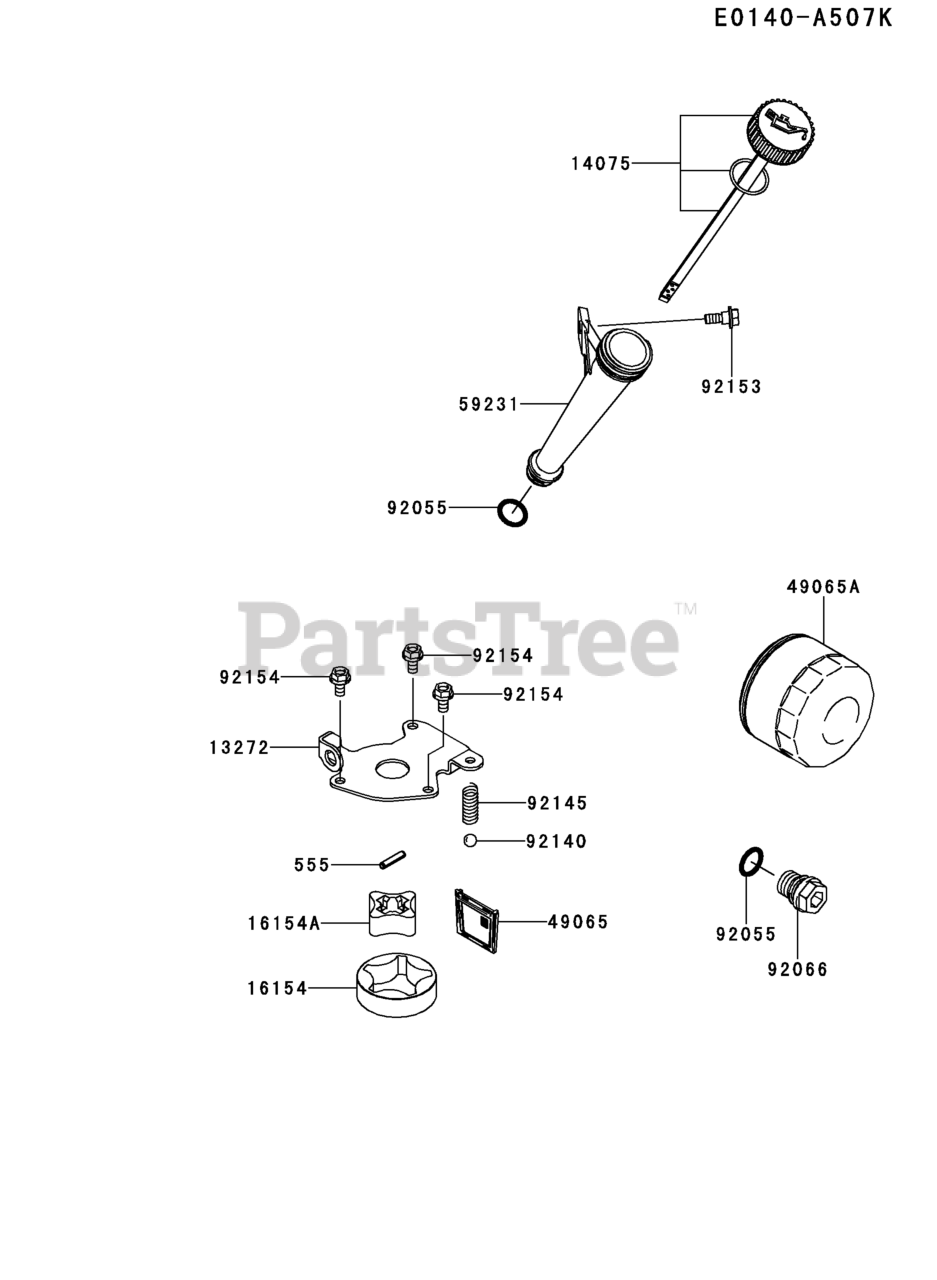

FX730V-AS39 LUBRICATION Parts Diagram

  • Title

13272

Cub Cadet KM-13272-7011

PLATE-OIL PUMP

$8.49

$

Usually ships in 2-5 days

0

14075

Cub Cadet KM-14075-0707

OIL CAP W/DIPSTICK

$10.99

$

In Stock, Qty 8

0

16154

Cub Cadet KM-16154-7010

ROTOR-OIL PMP OUTE

$18.99

$

In Stock, only 2 left!

0

16154A

Cub Cadet KM-16154-7011

ROTOR-OIL PMP INNE

$8.99

$

In Stock, Qty 7

0

49065

Cub Cadet KM-49065-7006

FILTER-OIL SCREEN
(Superseded to KM-49065-0720)

$3.49

$

In Stock, Qty 20+

0

49065A

Cub Cadet KM-49065-7007

ENGINE OIL FILTER
(Superseded to KM-49065-0721)

$18.99

$

In Stock, Qty 20+

0

59231

Cub Cadet KM-59231-0746

OIL FILLER TUBE

$8.49

$

Usually ships in 2-5 days

0

92055

Cub Cadet KM-92055-0892

RING-O-15.8X2.4

$0.99

$

In Stock, Qty 16

0

92066

Cub Cadet KM-92066-0774

OIL DRAIN PLUG

$5.49

$

In Stock, only 3 left!

0

92140

Cub Cadet KM-92140-7003

BALL

$1.49

$

In Stock, Qty 5

0

92145

Cub Cadet KM-92145-1809

OIL RELIEF SPRING

$0.99

$

In Stock, Qty 13

0

92153

Cub Cadet KM-92153-7007

BOLT

$4.49

$

In Stock, only 3 left!

0

92154

Cub Cadet KM-92154-2938

FLANGED BOLT

$0.99

$

In Stock, Qty 10

0

555

Cub Cadet KM-555A0420

SPRING PIN OIL P

$0.99

$

In Stock, Qty 15

0
