FX730V-AS40 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

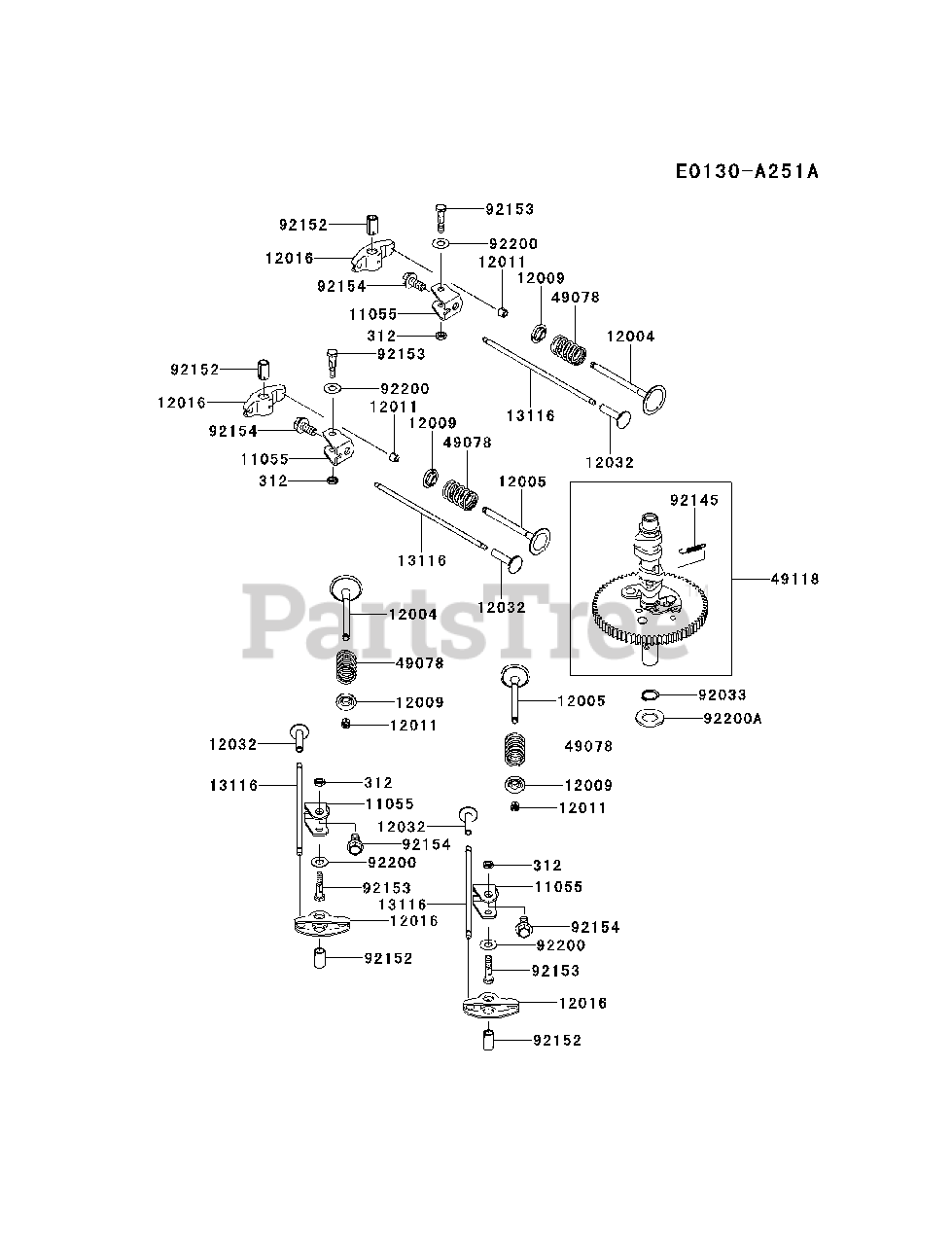

VALVE/CAMSHAFT Parts Diagram

  • Title

312

Kawasaki 312AA0600

NUT-HEX,6MM
(Superseded to 43032-002)

$0.99

$

In Stock, Qty 20+

0

11055

Kawasaki 110557009

BRACKET
(Superseded to 11054-7018)

$3.49

$

Usually ships in 2-5 days

0

12004

Kawasaki 120040733

VALVE-INTAKE
(Superseded to 12004-0705)

$25.99

$

In Stock, only 4 left!

0

12005

Kawasaki 12005-0750

VALVE-EXHAUST
(Superseded to 12005-0777)

$27.99

$

In Stock, Qty 20+

0

12009

Kawasaki 120097001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 7

0

12011

Kawasaki 120112056

COLLET

$2.99

$

In Stock, only 3 left!

0

12016

Kawasaki 120160040

ARM-ROCKER
(Superseded to 12016-2066)

$13.99

$

In Stock, Qty 16

0

12032

Kawasaki 120327001

TAPPET

$8.99

$

In Stock, Qty 11

0

13116

Kawasaki 131160725

ROD-PUSH
(Superseded to 13116-7007)

$9.49

$

In Stock, Qty 10

0

49078

Kawasaki 490787002

SPRING-ENGINE VALVE,IN

$6.99

$

In Stock, Qty 13

0

49118

Kawasaki 491187022

CAMSHAFT-COMP

$

$

Not available

92033

Kawasaki 92033-0727

RING-SNAP
(Superseded to 92033-0778)

$0.99

$

In Stock, Qty 20+

0

92145

Kawasaki 921451653

SPRING

$1.49

$

In Stock, Qty 10

0

92152

Kawasaki 921521689

COLLAR

$5.49

$

In Stock, Qty 18

0

92153

Kawasaki 921537100

BOLT,6X29.5

$3.49

$

In Stock, Qty 20+

0

92154

Kawasaki 921541267

BOLT,8X18.2

$

$

Not available

92200

Kawasaki 922002151

WASHER,8.1X18X0.5

$1.49

$

Usually ships in 2-5 days

0

92200A

Kawasaki 922007048

WASHER,16.3X30X2.28

$2.49

$

In Stock, only 2 left!

0
