FX820A-BS06 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

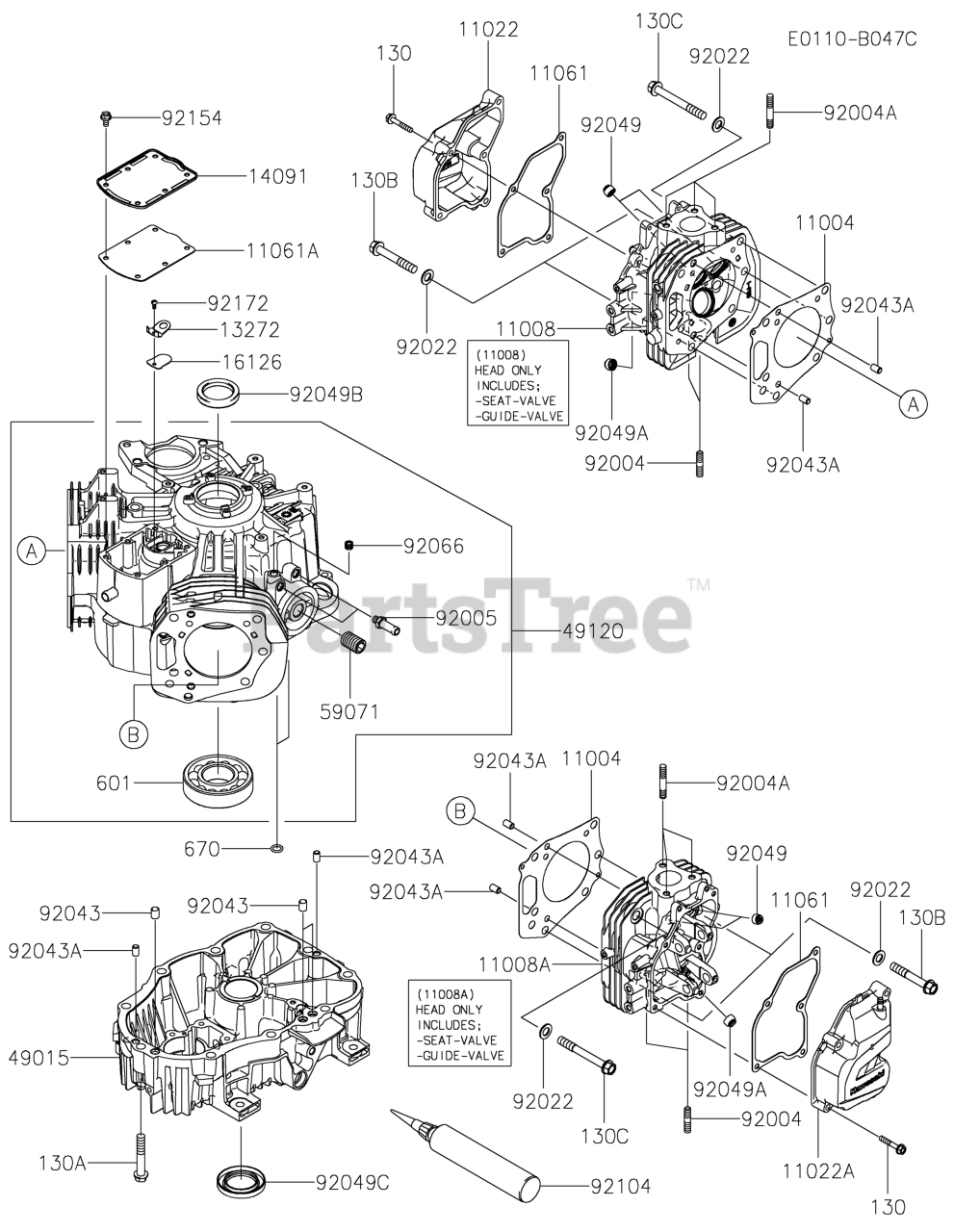

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 11004-0803

GASKET-HEAD

$55.99

$

Usually ships in 2-5 days

0

11008

Kawasaki 11008-1472

HEAD-COMP-CYLINDER,#1

$258.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-1473

HEAD-COMP-CYLINDER,#2

$255.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 11022-0736

CASE-ROCKER,#1

$18.99

$

Usually ships in 2-5 days

0

11022A

Kawasaki 11022-0738

CASE-ROCKER,#2

$18.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-1406

GASKET,CASE-ROCKER

$11.99

$

Usually ships in 2-5 days

0

11061A

Kawasaki 11061-7081

GASKET,BREATHER

$3.49

$

In Stock, Qty 20+

0

13272

Kawasaki 13272-1374

PLATE
(Superseded to 13272-7004)

$1.99

$

In Stock, Qty 20+

0

14091

Kawasaki 14091-7060

COVER,BREATHER

$3.49

$

In Stock, only 2 left!

0

16126

Kawasaki 16126-7020

VALVE,BREATHER

$4.99

$

In Stock, Qty 19

0

49015

Kawasaki 49015-0742

COVER-CRANKCASE

$284.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-0913

CRANKCASE-COMP

$653.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0743

JOINT,OIL FILTER

$2.99

$

In Stock, only 2 left!

0

92004

Kawasaki 92004-0823

STUD,8X22
(Superseded to 172BA0822)

$2.49

$

In Stock, Qty 20+

0

92004A

Kawasaki 92004-1208

STUD,8X35

$5.49

$

Usually ships in 2-5 days

0

92005

Kawasaki 92005-0991

FITTING

$7.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-1768

WASHER,11.5X20.5X1.6

$3.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-0858

PIN

$2.49

$

In Stock, Qty 20+

0

92043A

Kawasaki 92043-1263

PIN,6.2X8X14

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-0862

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-2100

SEAL-OIL,VSB-7X12X9.7

$5.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7024

SEAL-OIL,SD 40X54X9 R HS

$6.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7026

SEAL-OIL,SD 40X62X8 L VS

$9.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0881

PLUG

$4.49

$

In Stock, Qty 12

0

92104

Kawasaki 92104-0007

GASKET-LIQUID,TB1217H

$51.99

$

In Stock, Qty 14

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92172

Kawasaki 92172-0870

SCREW,4X8

$0.99

$

In Stock, Qty 10

0

130

Kawasaki 130BA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130CA1060

BOLT-FLANGED,10X60

$4.49

$

In Stock, Qty 10

0

130B

Kawasaki 130CA1065

BOLT-FLANGED,10X65
(Superseded to 130P1065)

$3.49

$

In Stock, Qty 20+

0

130C

Kawasaki 130CA1085

BOLT-FLANGED,10X85

$

$

Currently unavailable

601

Kawasaki 601A6309

BEARING-BALL

$72.99

$

Usually ships in 2-5 days

0

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, Qty 20+

0
