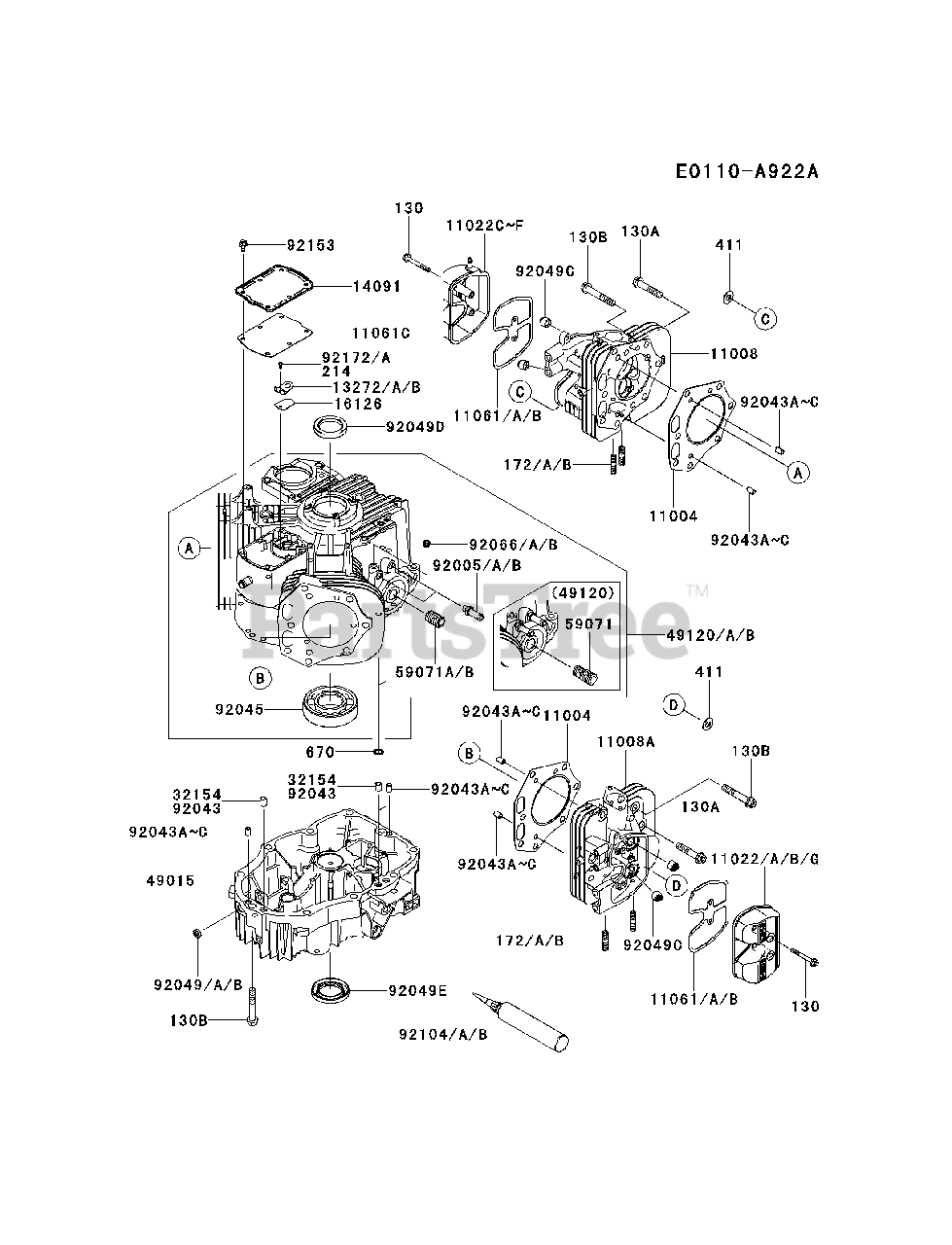

FX850V-AS14 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

CYLINDER/CRANKCASE Parts Diagram

  • Title

92049D

Kawasaki 92049-7024

SEAL-OIL,SD 40X54X9 R HS

$6.49

$

In Stock, Qty 11

0

92049E

Kawasaki 92049-7026

SEAL-OIL,SD 40X62X8 L VS

$8.99

$

In Stock, Qty 20+

0

92066A

Kawasaki 92066-0762

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 11

0

92066B

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 11

0

92104A

Kawasaki 92104-0007

GASKET-LIQUID,TB1217H

$51.99

$

In Stock, Qty 7

0

92104B

Kawasaki 92104-7001

GASKET-LIQUID,TB1217H
(Superseded to 921040007)

$51.99

$

In Stock, Qty 7

0

92153

Kawasaki 92153-7043

BOLT,6X12

$

$

Not available

92172A

Kawasaki 92172-0870

SCREW,4X8

$0.99

$

In Stock, Qty 6

0

130

Kawasaki 130BA0650

BOLT-FLANGED,6X50
(Superseded to 92003-179)

$1.49

$

In Stock, Qty 6

0

130A

Kawasaki 130CA1050

BOLT-FLANGED,10X50

$4.49

$

Usually ships in 2-5 days

0

130B

Kawasaki 130CA1060

BOLT-FLANGED,10X60

$4.49

$

In Stock, Qty 5

0

172

Kawasaki 172BA0818

BOLT-STUD,8X18

$1.99

$

In Stock, Qty 20+

0

172B

Kawasaki 172BA0822

BOLT-STUD,8X22
(Superseded to 172G0822)

$2.49

$

In Stock, Qty 20+

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, only 4 left!

0

411

Kawasaki 411AA1000

WASHER-PLAIN,10MM
(Superseded to 92200-1095)

$0.99

$

In Stock, only 4 left!

0

670

Kawasaki 670B2011

O RING,11MM

$1.49

$

In Stock, only 4 left!

0
