FX850V-BR31 - Kawasaki Engine THROTTLE-EQUIPMENT Parts Diagram

Engine

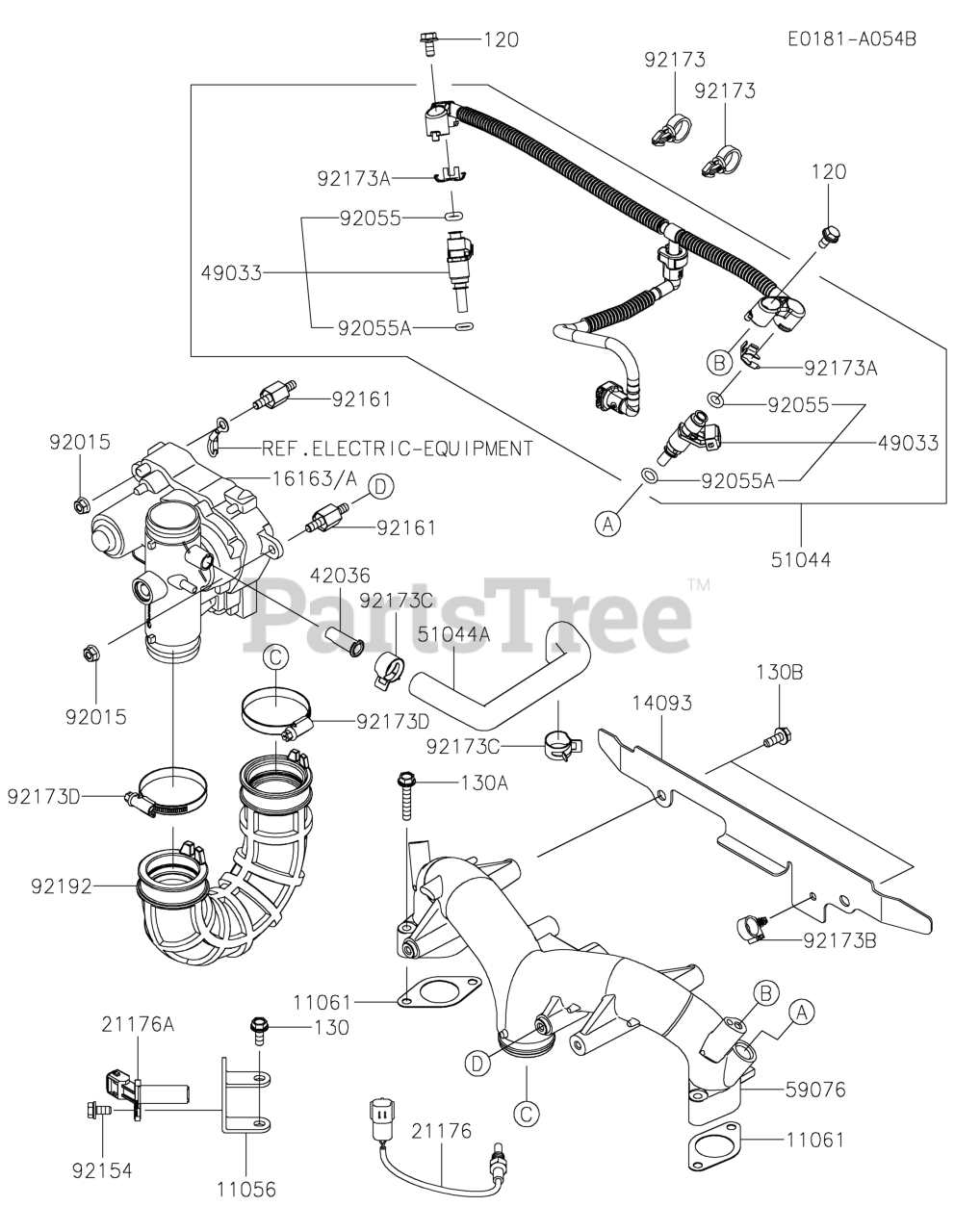

THROTTLE-EQUIPMENT Parts Diagram

  • Title

11056

Kawasaki 11056-7994

BRACKET,CPS

$4.49

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-7070

GASKET,HEAD/MANIFOLD

$2.49

$

In Stock, Qty 20+

0

14093

Kawasaki 14093-0640

COVER

$8.99

$

Usually ships in 2-5 days

0

16163A

Kawasaki 16163-1185

THROTTLE-ASSY

$

$

Not available

21176

Kawasaki 21176-0771

SENSOR

$28.99

$

In Stock, Qty 8

0

21176A

Kawasaki 21176-0772

SENSOR

$32.99

$

In Stock, Qty 9

0

42036

Kawasaki 42036-0800

SLEEVE

$1.49

$

Usually ships in 2-5 days

0

49033

Kawasaki 49033-0044

NOZZLE-INJECTION

$69.99

$

Usually ships in 2-5 days

0

51044

Kawasaki 51044-0794

TUBE-ASSY

$351.99

$

Usually ships in 2-5 days

0

51044A

Kawasaki 51044-0875

TUBE-ASSY,BREATHER

$9.49

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-0035

MANIFOLD-INTAKE

$139.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92055

Kawasaki 92055-0818

RING-O,NOZZLE-INJECTION,PURPLE

$16.99

$

Usually ships in 2-5 days

0

92055A

Kawasaki 92055-0819

RING-O,NOZZLE-INJECTION,GREEN

$16.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92161

Kawasaki 92161-1840

DAMPER

$3.99

$

In Stock, Qty 17

0

92173

Kawasaki 92173-1184

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92173A

Kawasaki 92173-1690

CLAMP,INJECTOR

$

$

Not available

92173B

Kawasaki 92173-1738

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92173C

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, only 4 left!

0

92173D

Kawasaki 92173-7009

CLAMP

$8.99

$

In Stock, Qty 8

0

92192

Kawasaki 92192-1819

TUBE,INTAKE

$32.99

$

Usually ships in 2-5 days

0

120

Kawasaki 120CA0620

BOLT-SOCKET,6X20
(Superseded to 120P0620)

$

$

Not available

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130BA-0816

BOLT-FLANGED,8X16

$1.49

$

Usually ships in 2-5 days

0
