FX850V-DS11 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

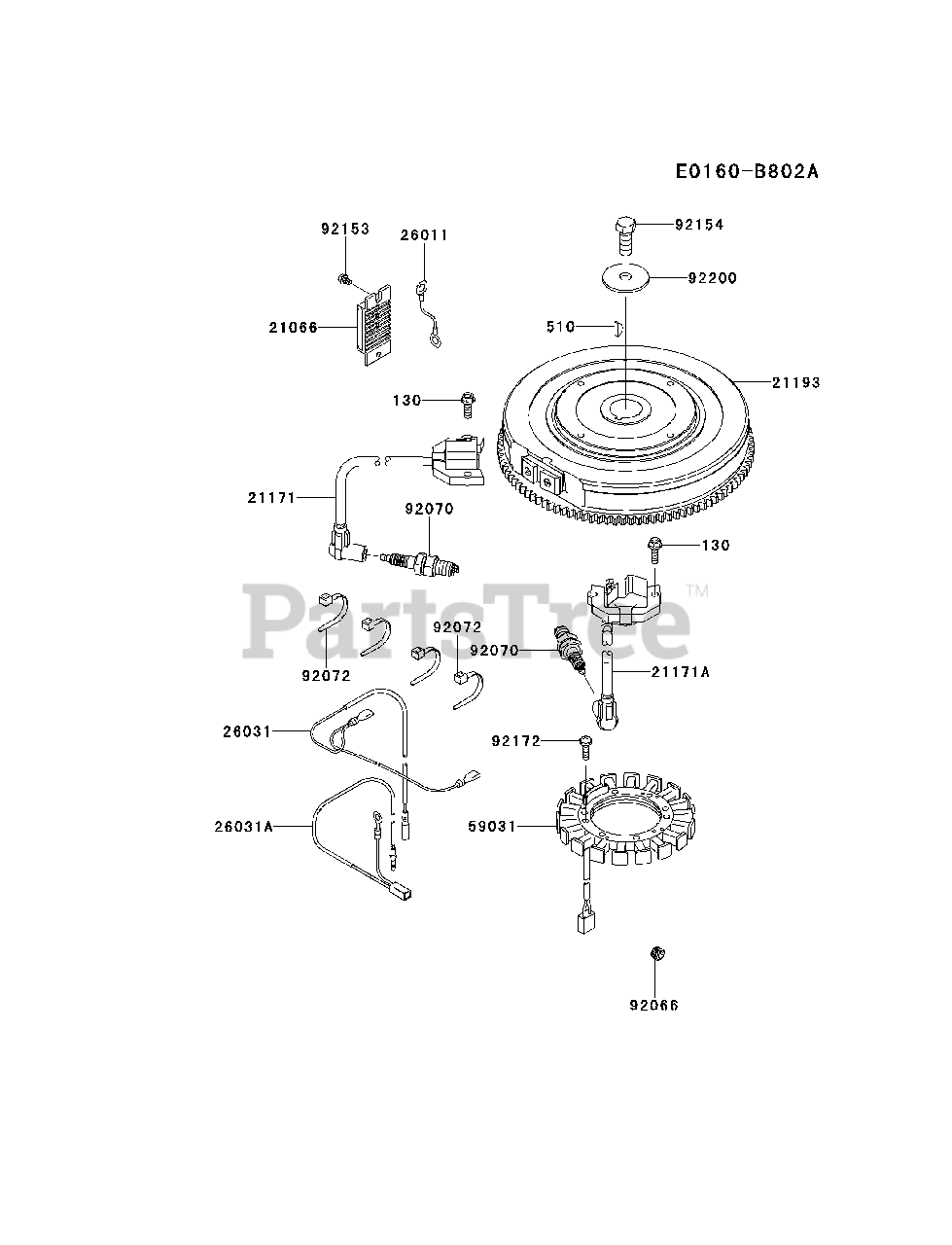

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 210660740

REGULATOR-VOLTAGE

$

$

Not available

21171

Kawasaki 211710743

COIL-ASSY-IGNITION

$82.99

$

In Stock, Qty 20+

0

21171A

Kawasaki 211710744

COIL-ASSY-IGNITION

$82.99

$

In Stock, Qty 20+

0

21193

Kawasaki 211930015

FLYWHEEL-ASSY
(Superseded to 21193-0706)

$315.99

$

In Stock, only 1 left!

0

26011

Kawasaki 260112234

WIRE-LEAD

$2.99

$

In Stock, only 3 left!

0

26031

Kawasaki 260317033

HARNESS

$6.99

$

In Stock, Qty 8

0

26031A

Kawasaki 260317034

HARNESS

$8.99

$

In Stock, Qty 6

0

59031

Kawasaki 590317010

COIL-CHARGING
(Superseded to 59031-7015)

$113.99

$

In Stock, only 3 left!

0

92066

Kawasaki 92066-0762

PLUG
(Superseded to 920660881)

$4.49

$

In Stock, Qty 12

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES,SOLID
(Superseded to BPR4ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92072

Kawasaki 920727003

BAND

$1.49

$

In Stock, Qty 6

0

92153

Kawasaki 921537029

BOLT

$1.49

$

In Stock, Qty 9

0

92154

Kawasaki 921547003

BOLT,12X30

$4.99

$

In Stock, Qty 16

0

92172

Kawasaki 921727018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Kawasaki 922007040

WASHER,12.2X46X3

$3.49

$

In Stock, only 3 left!

0

130

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
