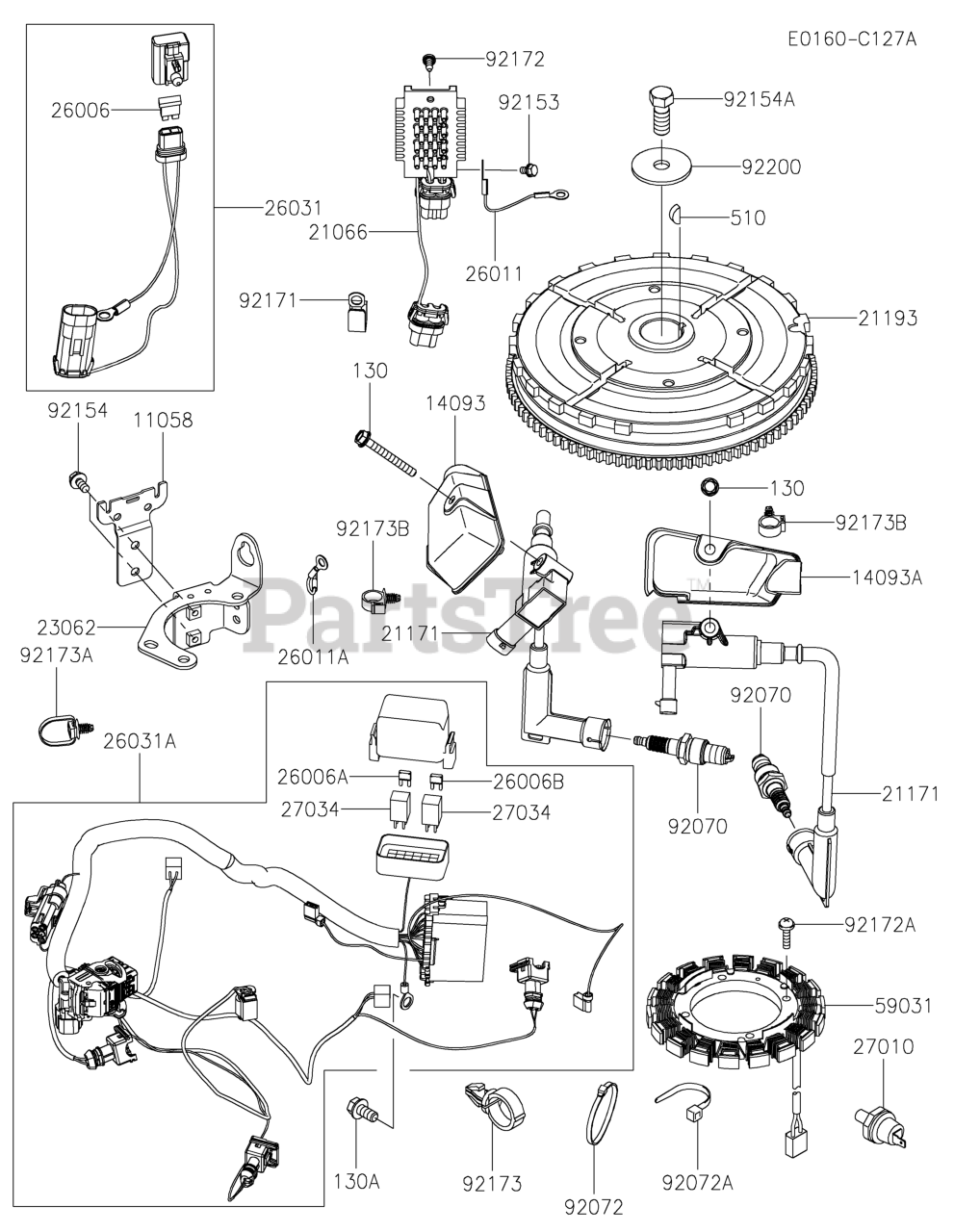

FX850V-ES47 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11058

Kawasaki 11058-1249

BRACKET

$5.99

$

Usually ships in 2-5 days

0

14093

Kawasaki 14093-0493

COVER,COIL #1

$3.49

$

Usually ships in 2-5 days

0

14093A

Kawasaki 14093-0494

COVER,COIL #2

$3.49

$

Usually ships in 2-5 days

0

21066

Kawasaki 21066-0747

REGULATOR-VOLTAGE

$74.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-0746

COIL-ASSY-IGNITION

$86.99

$

Usually ships in 2-5 days

0

21193

Kawasaki 21193-0034

FLYWHEEL-ASSY

$316.99

$

Usually ships in 2-5 days

0

23062

Kawasaki 23062-0992

BRACKET-COMP

$9.99

$

Usually ships in 2-5 days

0

26006

Kawasaki 26006-0036

FUSE,40A

$7.49

$

Usually ships in 2-5 days

0

26006A

Kawasaki 26006-0045

FUSE,10A

$5.99

$

Usually ships in 2-5 days

0

26006B

Kawasaki 26006-0046

FUSE,2A

$2.49

$

Usually ships in 2-5 days

0

26011

Kawasaki 26011-0931

WIRE-LEAD

$4.49

$

Usually ships in 2-5 days

0

26011A

Kawasaki 26011-7025

WIRE-LEAD,L=95

$2.99

$

In Stock, Qty 6

0

26031

Kawasaki 26031-2299

HARNESS

$22.99

$

Usually ships in 2-5 days

0

26031A

Kawasaki 26031-2397

HARNESS

$254.99

$

Usually ships in 2-5 days

0

27010

Kawasaki 27010-0830

SWITCH,OIL PRESSURE

$23.99

$

In Stock, Qty 7

0

27034

Kawasaki 27034-0010

RELAY

$9.49

$

In Stock, only 2 left!

0

59031

Kawasaki 59031-0013

COIL-CHARGING

$73.99

$

In Stock, Qty 9

0

92070

Kawasaki 92070-7004

PLUG-SPARK,BPR4ES
(Superseded to BPR4ES)

$3.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-0775

BAND

$1.49

$

Usually ships in 2-5 days

0

92072A

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92153

Kawasaki 92153-7029

BOLT

$1.49

$

In Stock, Qty 9

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92154A

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 20+

0

92171

Kawasaki 92171-7008

CLAMP

$1.99

$

In Stock, only 1 left!

0

92172

Kawasaki 92172-1091

SCREW,5X12

$0.99

$

Usually ships in 2-5 days

0

92172A

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92173

Kawasaki 92173-1184

CLAMP

$1.99

$

Usually ships in 2-5 days

0

92173A

Kawasaki 92173-1515

CLAMP

$1.99

$

In Stock, Qty 5

0

92173B

Kawasaki 92173-1738

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7040

WASHER,12.2X46X3

$3.49

$

In Stock, Qty 11

0

130

Kawasaki 130BA0640

BOLT-FLANGED,6X40
(Superseded to 130B0640)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA-0816

BOLT-FLANGED,8X16

$1.49

$

Usually ships in 2-5 days

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
