FX921V-CS08 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

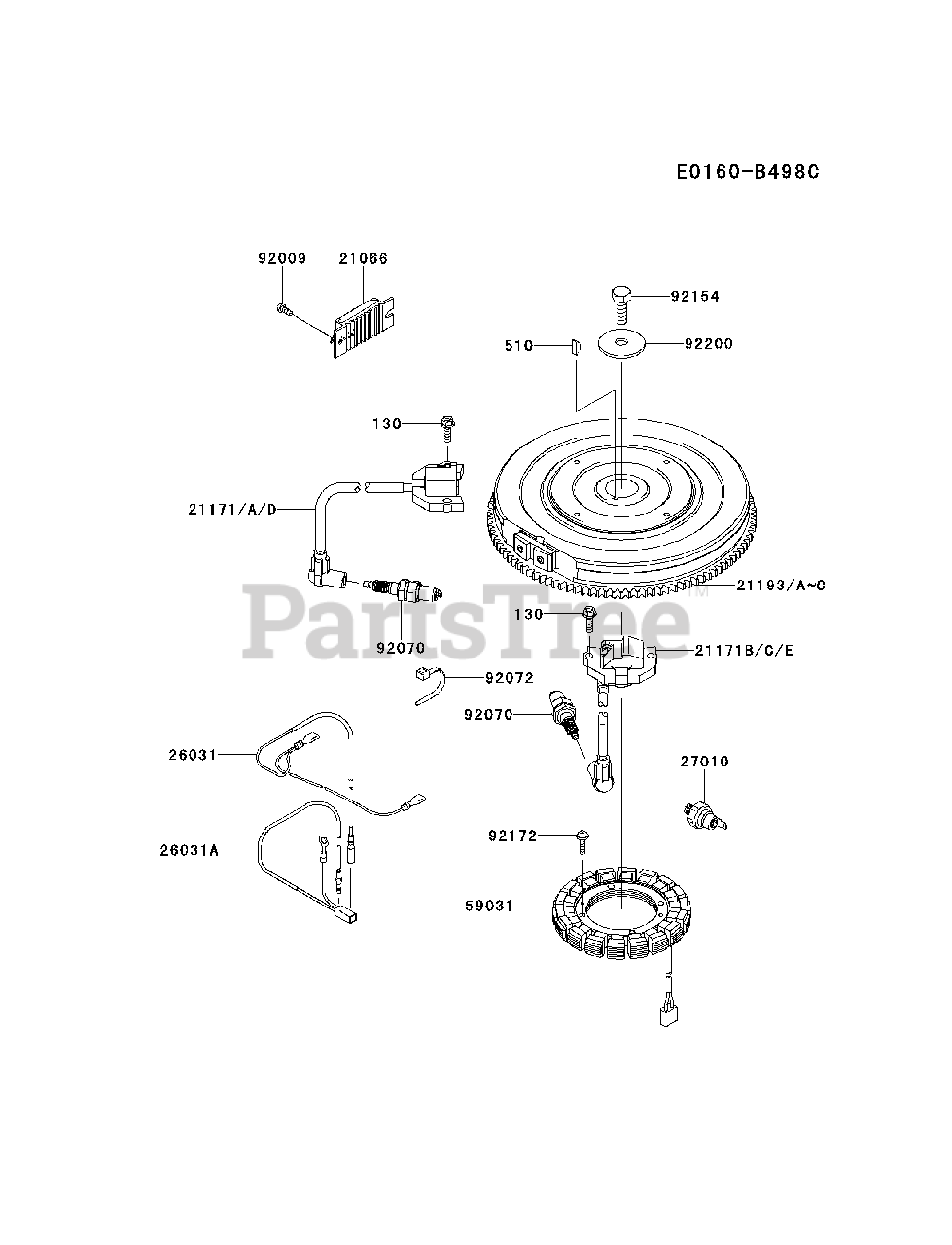

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

21066

Kawasaki 21066-7011

REGULATOR-VOLTAGE
(Superseded to 21066-7001)

$77.99

$

In Stock, Qty 20+

0

21171

Kawasaki 21171-0711

COIL-ASSY-IGNITION
(Superseded to 211710743)

$77.99

$

In Stock, Qty 20+

0

21171B

Kawasaki 21171-0712

COIL-ASSY-IGNITION
(Superseded to 21171-0744)

$77.99

$

In Stock, Qty 8

0

21193

Kawasaki 21193-0707

FLYWHEEL-ASSY
(Superseded to 21193-0018)

$321.99

$

In Stock, only 1 left!

0

26031

Kawasaki 26031-7033

HARNESS

$6.99

$

In Stock, Qty 6

0

26031A

Kawasaki 26031-7034

HARNESS

$8.99

$

In Stock, Qty 12

0

27010

Kawasaki 27010-7001

SWITCH
(Superseded to 27010-0817)

$23.99

$

In Stock, only 3 left!

0

59031

Kawasaki 59031-7017

COIL-CHARGING

$127.99

$

In Stock, Qty 8

0

92009

Kawasaki 92009-2308

SCREW

$0.99

$

In Stock, only 3 left!

0

92070

Kawasaki 92070-2088

PLUG-SPARK,BPR5ES,SOLID
(Superseded to BPR5ES)

$3.99

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92154

Kawasaki 92154-7003

BOLT,12X30

$4.99

$

In Stock, only 1 left!

0

92172

Kawasaki 92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 7

0

92200

Kawasaki 92200-7040

WASHER,12.2X46X3

$3.49

$

In Stock, only 2 left!

0

130

Kawasaki 130AA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, Qty 20+

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 9

0
