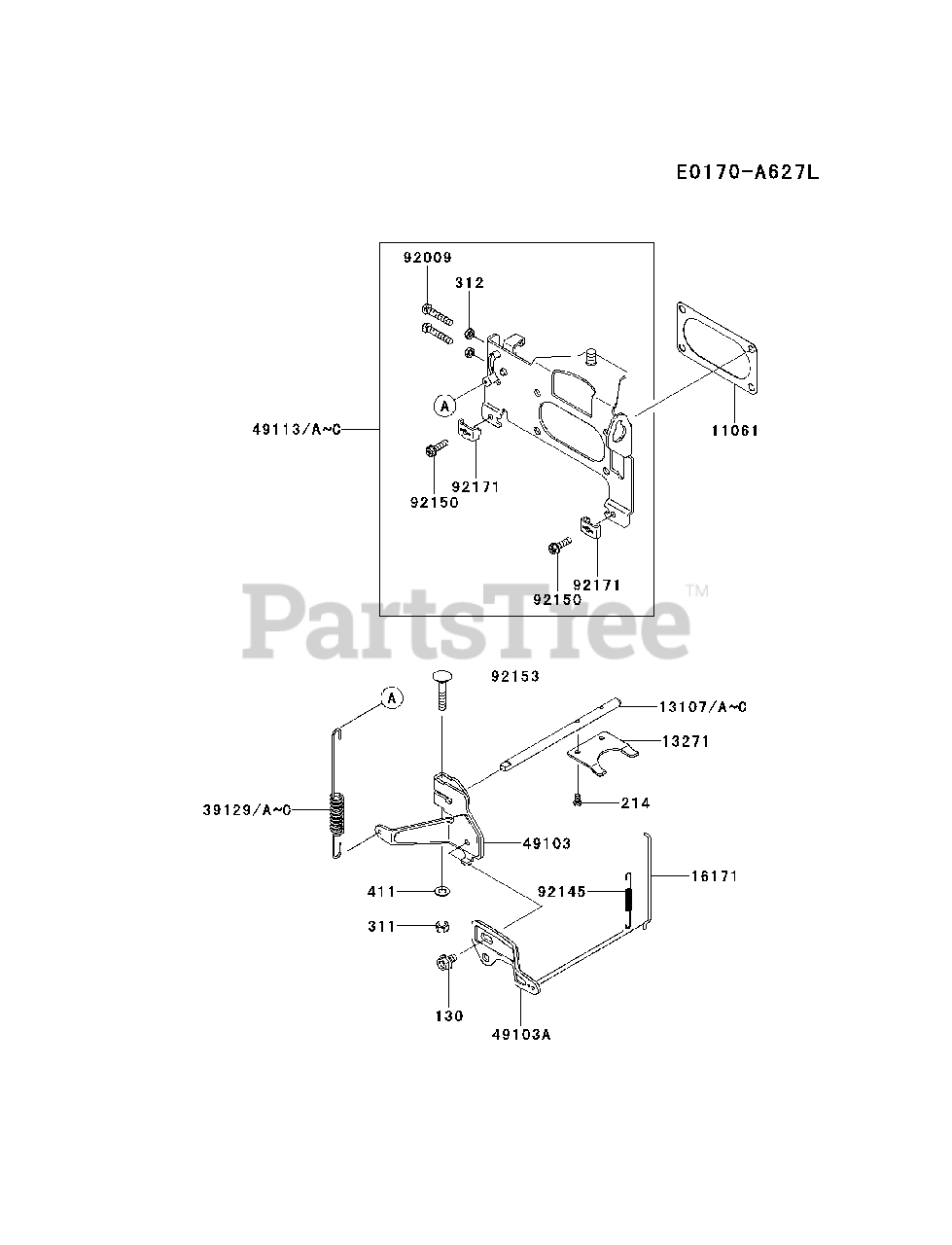

FX921V-ES00 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title

11061

Kawasaki 110617056

GASKET,PIPE-INTAKE

$1.49

$

In Stock, Qty 20+

0

13107B

Kawasaki 131077050

SHAFT
(Superseded to 13107-7040)

$12.99

$

In Stock, only 1 left!

0

13271

Kawasaki 132717038

PLATE

$3.49

$

In Stock, Qty 20+

0

16171

Kawasaki 16171-7018

LINK
(Superseded to 16171-0038)

$0.99

$

In Stock, only 2 left!

0

39129B

Kawasaki 391297027

SPRING-GOVERNOR
(Superseded to 39129-7017)

$

$

Not available

49103

Kawasaki 491037009

ARM-GOVERNOR

$4.49

$

Usually ships in 2-5 days

0

49103A

Kawasaki 491037010

ARM-GOVERNOR

$3.49

$

Usually ships in 2-5 days

0

49113

Kawasaki 491130008

PANEL-COMP-CONTROL
(Superseded to 49113-7048)

$28.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092381

SCREW,5X30

$1.49

$

In Stock, only 4 left!

0

92145

Kawasaki 921457050

SPRING

$1.49

$

In Stock, Qty 13

0

92150

Kawasaki 921502182

BOLT,5X18

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7033

BOLT,6X35

$

$

Not available

92171

Kawasaki 921717018

CLAMP

$2.99

$

In Stock, Qty 18

0

130

Kawasaki 130BA0610

BOLT-FLANGED,6X10
(Superseded to 130B0610)

$0.99

$

In Stock, Qty 20+

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$4.99

$

In Stock, Qty 20+

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

312

Kawasaki 312AA0500

NUT-HEX,5MM

$0.99

$

In Stock, Qty 9

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, Qty 11

0
