FXT00V-BS42 - Kawasaki Engine FXT00V-BS42 CYLINDER & CRANKCASE Parts Diagram

Engine

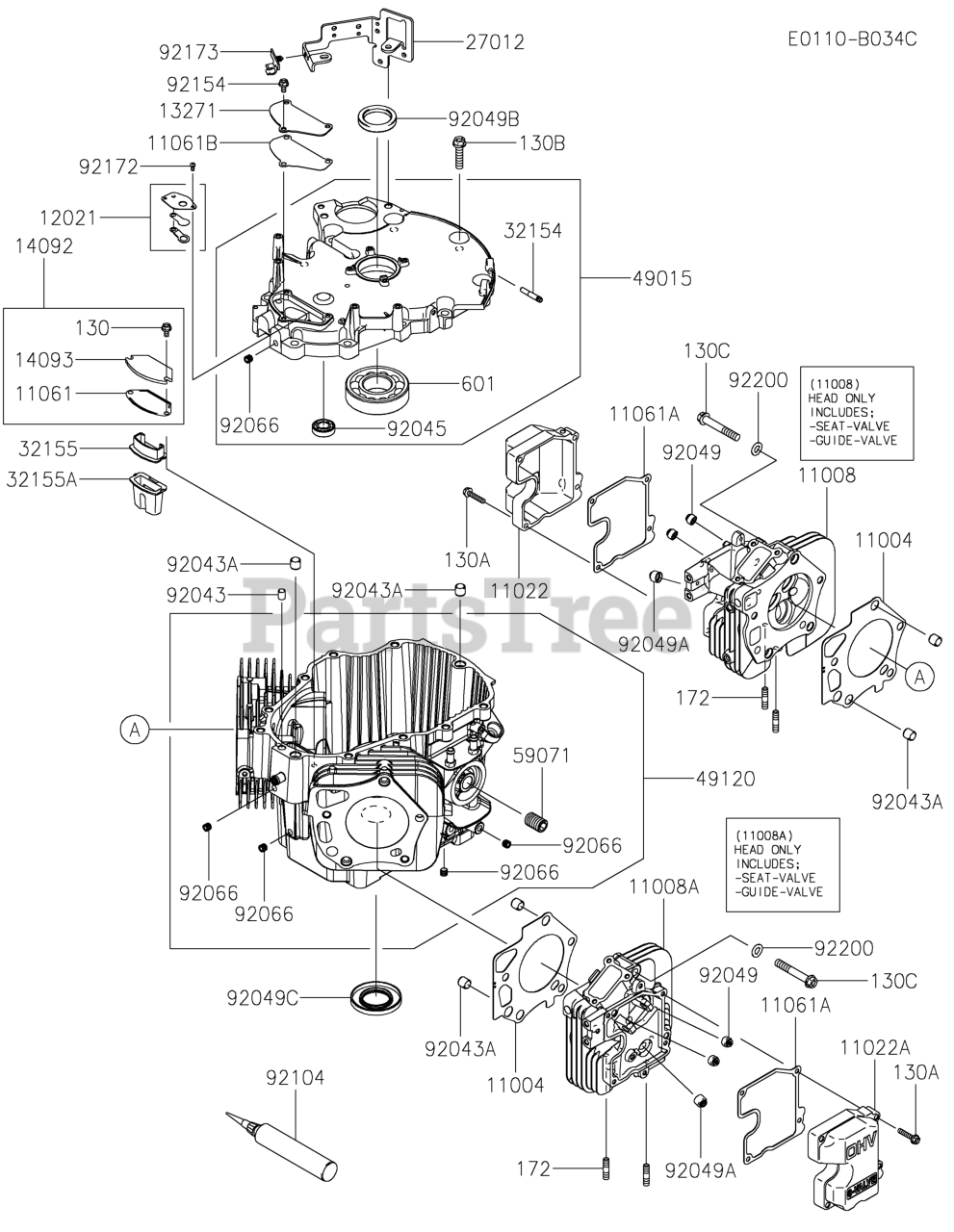

FXT00V-BS42 CYLINDER & CRANKCASE Parts Diagram

  • Title

11004

Cub Cadet KM-11004-0792

HEAD GASKET

$33.99

$

Usually ships in 3-6 days

0

11008

Cub Cadet KM-11008-0916

CYLINDER HEAD #1

$310.99

$

Usually ships in 3-6 days

0

11008A

Cub Cadet KM-11008-0957

CYLINDER HEAD #2

$310.99

$

Usually ships in 3-6 days

0

11022

Cub Cadet KM-11022-0730

ROCKER COVER #1

$19.99

$

Usually ships in 2-5 days

0

11022A

Cub Cadet KM-11022-0731

ROCKER COVER #2

$19.99

$

Usually ships in 2-5 days

0

11061

Cub Cadet KM-11061-0816

BREATHER GASKET

$3.49

$

Usually ships in 2-5 days

0

11061A

Cub Cadet KM-11061-7055

ROCKER COVER GASKET

$14.99

$

In Stock, Qty 10

0

11061B

Cub Cadet KM-11061-7065

GASKET-BREATHER COVER

$6.99

$

In Stock, only 2 left!

0

12021

Cub Cadet KM-12021-7003

VALVE ASSEMBLY-REED

$6.49

$

In Stock, only 3 left!

0

13271

Cub Cadet KM-13271-7037

PLATE-BREATHER CVR

$2.99

$

Usually ships in 2-5 days

0

14092

Cub Cadet KM-14092-0992

BREATHER COVER
(Superseded to KM-99999-0380)

$9.49

$

Usually ships in 2-5 days

0

14093

Cub Cadet KM-14093-1283

COVER,BREATHER

$5.49

$

Usually ships in 3-6 days

0

27012

Cub Cadet KM-27012-0846

HARNESS HOOK

$16.99

$

Usually ships in 3-6 days

0

32154

Cub Cadet KM-32154-7020

PIPE

$3.49

$

Usually ships in 3-6 days

0

32155

Cub Cadet KM-32155-2211

BREATHER PIPE

$1.99

$

Usually ships in 3-6 days

0

32155A

Cub Cadet KM-32155-2212

BREATHER PIPE

$2.49

$

Usually ships in 3-6 days

0

49015

Cub Cadet KM-49015-0721

CRANKCASE COVER

$214.99

$

Usually ships in 3-6 days

0

49120

Cub Cadet KM-49120-0914

CRANKCASE

$667.99

$

Usually ships in 3-6 days

0

59071

Cub Cadet KM-59071-0743

JOINT-OIL FILTER

$2.99

$

In Stock, only 2 left!

0

92043

Cub Cadet KM-92043-0858

PIN

$2.49

$

In Stock, Qty 18

0

92043A

Cub Cadet KM-92043-1266

PIN

$1.49

$

In Stock, only 3 left!

0

92045

Cub Cadet KM-92045-7002

BALL BEARING

$9.49

$

Usually ships in 2-5 days

0

92049

Cub Cadet KM-92049-7001

OIL SEAL VALVE ST
(Superseded to KM-92049-0862)

$10.99

$

Usually ships in 3-6 days

0

92049A

Cub Cadet KM-92049-7020

OIL SEAL

$4.49

$

In Stock, only 2 left!

0

92049B

Cub Cadet KM-92049-7024

OIL SEAL

$6.49

$

In Stock, Qty 6

0

92049C

Cub Cadet KM-92049-7025

OIL SEAL

$16.99

$

In Stock, only 2 left!

0

92066

Cub Cadet KM-92066-0881

PLUG

$4.49

$

In Stock, only 3 left!

0

92104

Cub Cadet KM-92104-0007

GASKET-LIQUID

$51.99

$

In Stock, only 2 left!

0

92154

Cub Cadet KM-92154-2938

FLANGED BOLT

$0.99

$

In Stock, Qty 20+

0

92172

Cub Cadet KM-92172-0870

SCREW 4 x 8

$0.99

$

Usually ships in 2-5 days

0

92173

Cub Cadet KM-92173-1983

CLAMP

$0.99

$

Usually ships in 3-6 days

0

92200

Cub Cadet KM-92200-1864

WASHER 10.5x19.5x1.6

$0.99

$

In Stock, only 2 left!

0

130

Cub Cadet KM-130BA0616

FLANGED BOLT 6X16

$1.49

$

In Stock, only 2 left!

0

130A

Cub Cadet KM-130BA0630

BOLT-FLANGED-6X30

$1.99

$

In Stock, Qty 13

0

130B

Cub Cadet KM-130CA1040

FLANGED BOLT

$3.49

$

Usually ships in 2-5 days

0

130C

Cub Cadet KM-130CA1065

FLANGED BOLT

$2.99

$

In Stock, Qty 6

0

172

Cub Cadet KM-172BA0822

BOLT-STUD 8 x 22

$2.49

$

In Stock, Qty 12

0

601

Cub Cadet KM-92045-0712

BALL BEARING
(Superseded to KM-601A6308)

$

$

Not available

Cub Cadet 952SFXT00S425

COMPLETE ENGINE FXT00V-*S42

$4125.99

$

Usually ships in 3-6 days

0
