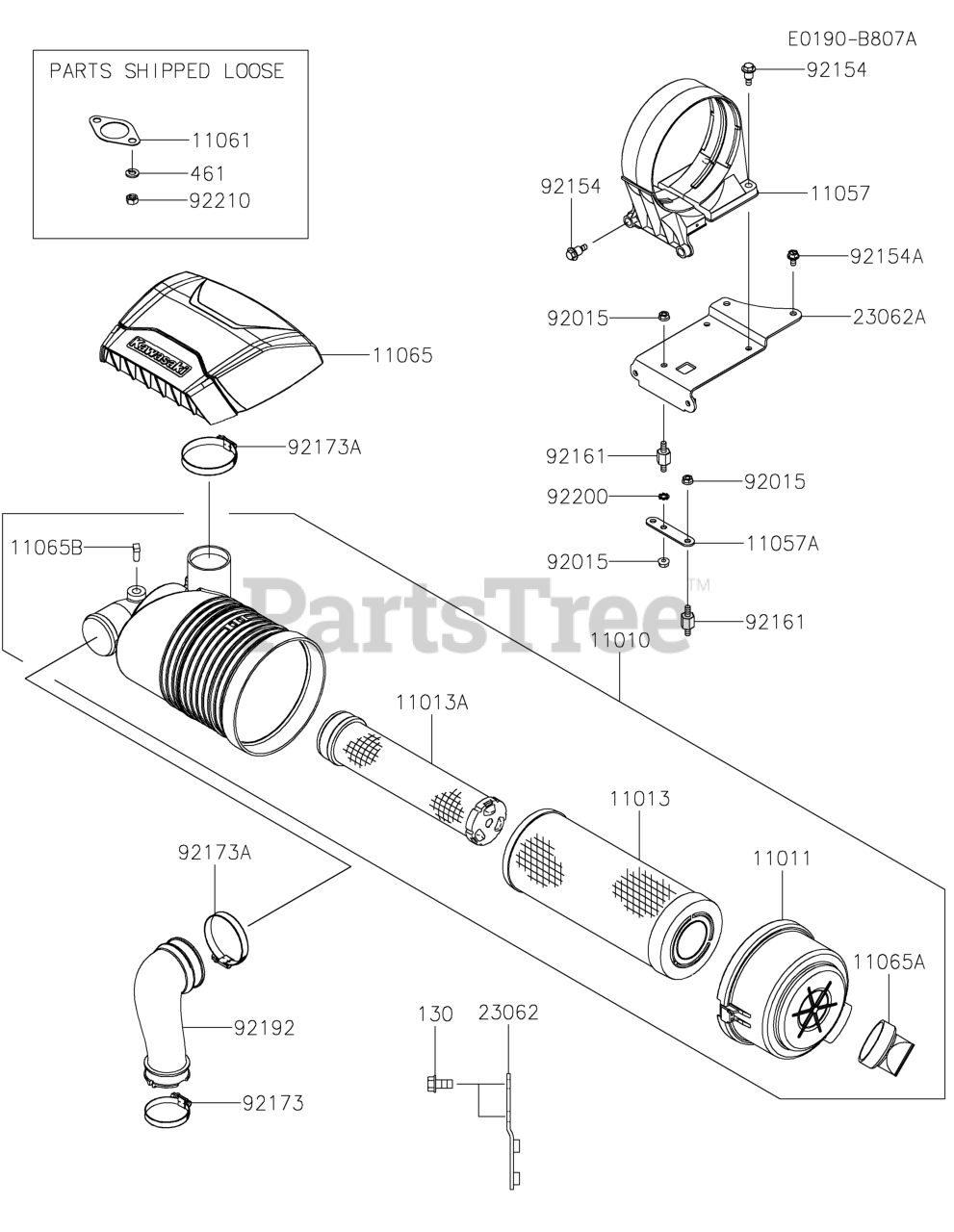

FXT00V-BS44 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7028

FILTER-ASSY-AIR

$118.99

$

In Stock, Qty 20+

0

11011

Kawasaki 11011-7056

CASE-AIR FILTER

$47.99

$

In Stock, Qty 20+

0

11013

Kawasaki 11013-7044

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7045

ELEMENT-AIR FILTER

$28.99

$

In Stock, Qty 20+

0

11057

Kawasaki 11057-0803

BRACKET,A/C BAND

$12.99

$

Usually ships in 2-5 days

0

11057A

Kawasaki 11057-2611

BRACKET

$1.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-7061

GASKET,MUFFLER
(Superseded to 11060-2383)

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 110651389

CAP,RAIN

$

$

Currently unavailable

11065A

Kawasaki 11065-7031

CAP

$13.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 11065-7032

CAP

$4.49

$

In Stock, only 1 left!

0

23062

Kawasaki 23062-1320

BRACKET-COMP

$11.99

$

Usually ships in 2-5 days

0

23062A

Kawasaki 23062-1327

BRACKET-COMP

$23.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92154

Kawasaki 92154-2665

BOLT

$0.99

$

In Stock, Qty 8

0

92154A

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92161

Kawasaki 92161-1840

DAMPER

$3.99

$

In Stock, Qty 17

0

92173

Kawasaki 92173-7009

CLAMP

$8.99

$

In Stock, Qty 11

0

92173A

Kawasaki 92173-7010

CLAMP

$8.99

$

In Stock, Qty 20+

0

92192

Kawasaki 92192-1836

TUBE,THROTTLE-A/C

$17.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-1759

WASHER

$0.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT,M8

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130BA-0816

BOLT-FLANGED,8X16

$1.49

$

Usually ships in 2-5 days

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
