FY 850 F - Electrolux/AYP Tiller (1998)

Tiller

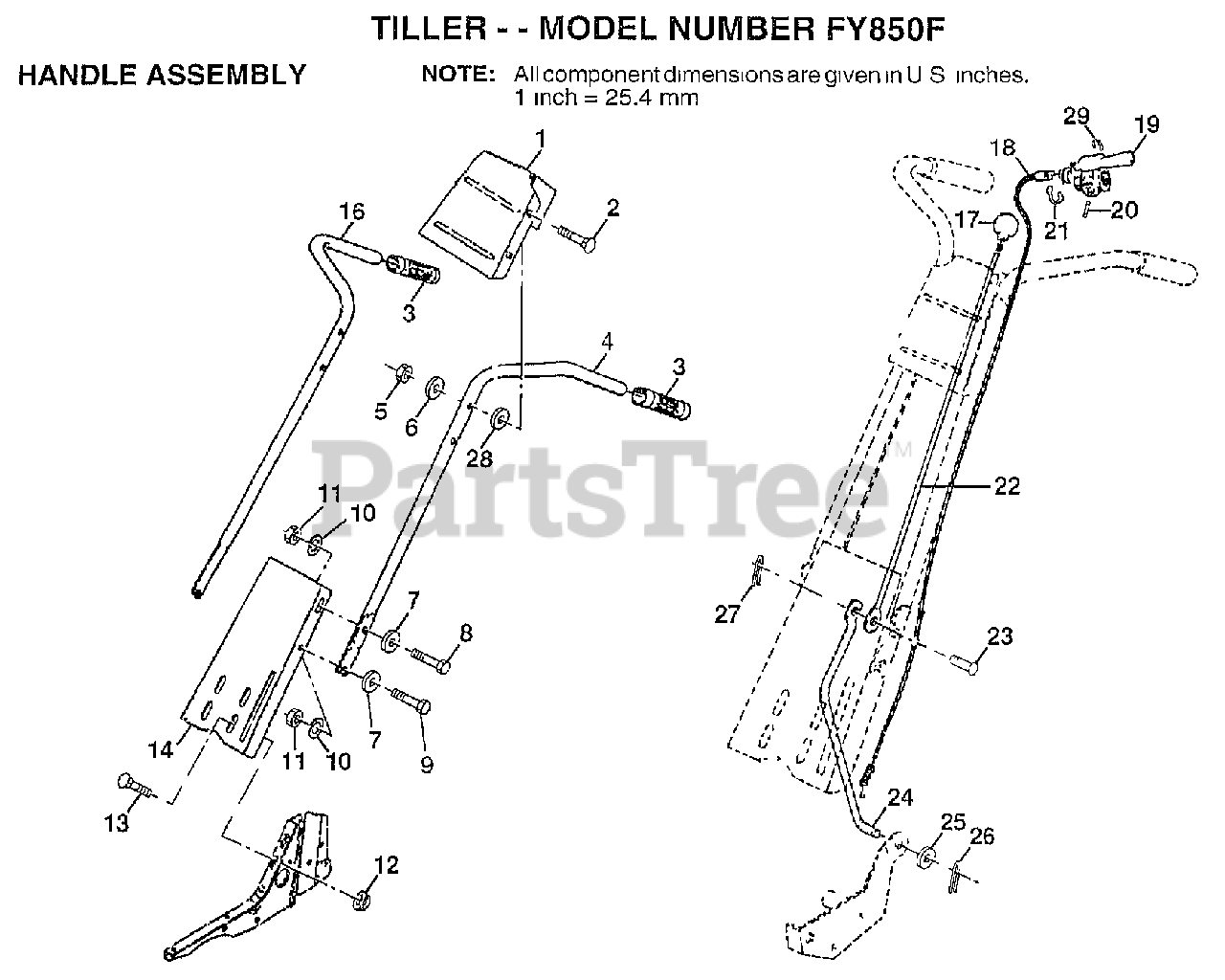

FY 850 F - Electrolux/AYP Tiller (1998) > Parts Diagrams (6) > HANDLE

  • Title
131268X505

1

HANDLE BRKT

Part# 131268X505

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140512

2

BOLT

Part# 72140512

OEM Warranty Repair Part for Electrolux/AYP

Not available

9266R

3

SUB= 624A78

Part# 9266R

OEM Warranty Repair Part for Electrolux/AYP

Not available

153138

4

HANDLE.LH TILLER

Part# 153138

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $16.11

73680500

5

SUB= 73690500

Part# 73680500

OEM Warranty Repair Part for Murray

Not available

19111116

6

WASHER

Part# 19111116 (Superseded to 819111116)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

19121414

7

WASHER

Part# 19121414 (Superseded to 819121414)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.03

74760516

8

SUB= 77394

Part# 74760516

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760512

9

BOLT

Part# 74760512

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040500

10

LOCKWASHER

Part# 10040500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

73220500

11

NUT.HEX.5/16-18

Part# 73220500 (Superseded to 873220500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

98000129

12

NUT

Part# 98000129 (Superseded to 898000129)

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140506

13

BOLT

Part# 72140506 (Superseded to 872140506)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $1.67

674A150505

14

HANDLE PANEL

Part# 674A150505

OEM Warranty Repair Part for Electrolux/AYP

Not available

153139

16

"HANDLE-RH,TILLER"

Part# 153139

OEM Warranty Repair Part for Electrolux/AYP

Not available

106932X

17

KNOB T(3/8 HOLE)

Part# 106932X (Superseded to 532106932)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

3066J

18

CABLE CLUTCH T

Part# 3066J

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $34.65

151229

19

LEVER CONTRL TINE

Part# 151229

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $27.94

154805

20

"PIN PIVOT,GROOVED"

Part# 154805

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $4.46

12000027

21

E-RING

Part# 12000027

OEM Warranty Repair Part for Electrolux/AYP

Not available

101248K

22

ROD REVERSE TI

Part# 101248K

OEM Warranty Repair Part for Electrolux/AYP

Not available

1778E

23

RIVET.RD.HD.DRILL

Part# 1778E

OEM Warranty Repair Part for Electrolux/AYP

Not available

2613J

24

REVERSE ROD TI

Part# 2613J

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131316

25

WASHER

Part# 19131316 (Superseded to 819131316)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

76020412

26

COTTER PIN

Part# 76020412 (Superseded to 876020412)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

76020308

27

SUB= 3145

Part# 76020308 (Superseded to 876020308)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

19131312

28

WASHER

Part# 19131312

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

12000059

29

RETAINER RING

Part# 12000059

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46
