G 1000 - Shindaiwa Generator Generator 1000 Parts Diagram

Generator

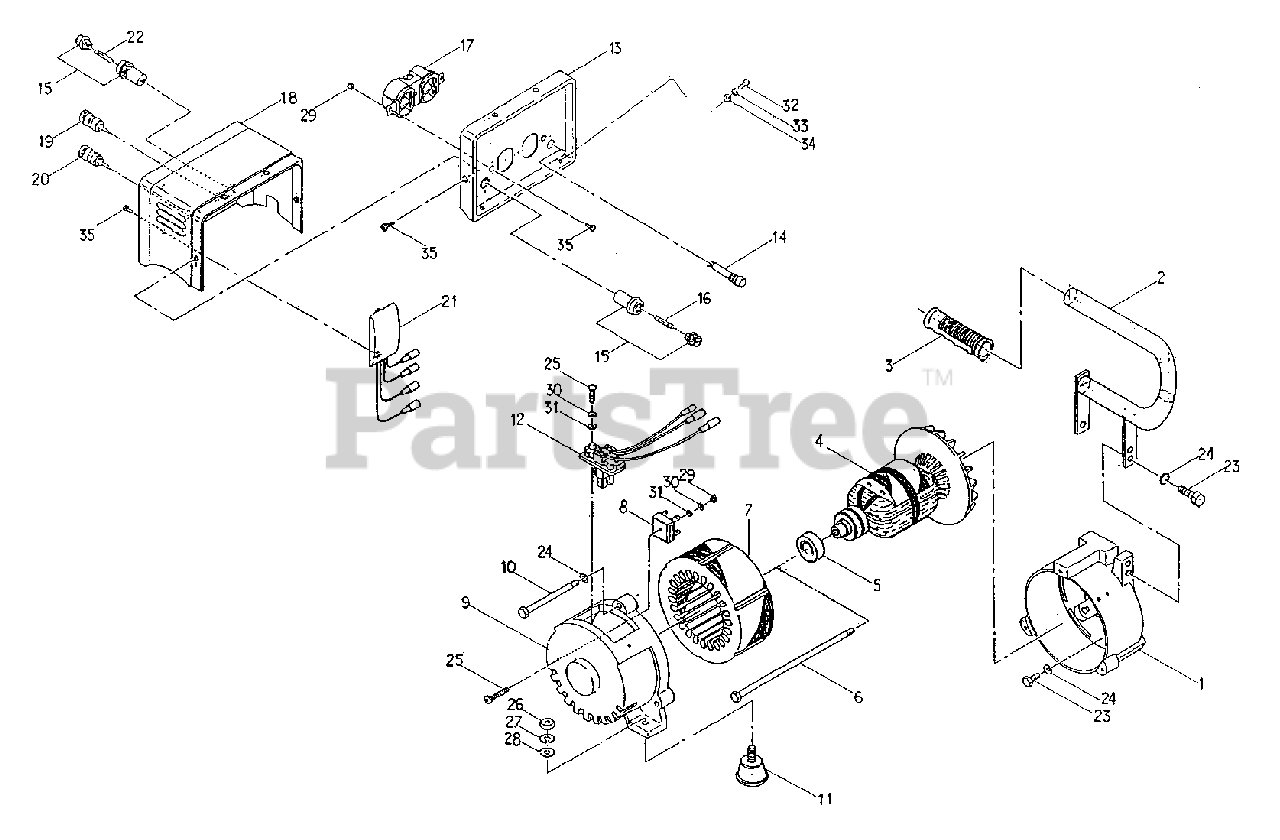

Generator 1000 Parts Diagram

  • Title

1

Echo G0100-00140

BRACKET - FRONT
(Superseded to Discontinued)

$

$

Not available

2

Echo G1310-00050

HANDLE
(Superseded to Discontinued)

$

$

Not available

3

Echo G1320-00020

GRIP
(Superseded to Discontinued)

$

$

Not available

4

Echo G0200-00120

ROTOR ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 00062-02DDU

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

6

Echo G0300-00040

THRU BOLT
(Superseded to Discontinued)

Note: M6 x 165

$

$

Not available

7

Echo G0400-00580

STATOR ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 015S1-5VB10

BLOCK, DIODE

$

$

Currently unavailable

9

Echo G0800-00100

BRACKET - REAR
(Superseded to Discontinued)

$

$

Not available

10

Echo G0900-00040

BOLT, BRACKET
(Superseded to Discontinued)

Note: M6 x 75

$

$

Not available

11

Echo G0600-00230

RUBBER MOUNT UNIT
(Superseded to Discontinued)

$

$

Not available

12

Echo 9114433110

BRUSH HOLDER ASSY

$

$

Currently unavailable

13

Echo C0111-00290

PANEL A
(Superseded to Discontinued)

$

$

Not available

14

Echo 01400-110R0

NEON LAMP - 110V

$

$

Currently unavailable

15

Echo 01100-00010

HOLDER, FUSE
(Superseded to Discontinued)

$

$

Not available

16

Echo 01200-00006

FUSE

Note: 6A (AC)

$

$

Currently unavailable

17

Echo 00601-12515

OUTLET - 125V 15A

Note: 125V 15A

$

$

Currently unavailable

18

Echo C0211-00190

CONTROL BOX ASSY

$

$

Currently unavailable

19

Echo 00920-1201B

OUTPUT TERMINAL - BLACK

Note: BLACK

$

$

Currently unavailable

20

Echo 00920-1201R

OUTPUT TERMINAL - RED
(Superseded to Discontinued)

Note: RED

$

$

Not available

21

Echo C0310-00310

AVR UNIT
(Superseded to Discontinued)

$

$

Not available

22

Echo 01200-00010

FUSE
(Superseded to Discontinued)

Note: 10A (DC)

$

$

Not available

23

Echo 00105-06150

BOLT - 6X15
(Superseded to Discontinued)

$

$

Not available

24

Echo 00303-06000

LOCKWASHER - 6
(Superseded to Discontinued)

Note: M6

$

$

Not available

25

Echo 00100-04250

SCREW - 4X25
(Superseded to Discontinued)

Note: M4 x 25

$

$

Not available

26

Echo 00200-08000

NUT - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

27

Echo 00303-08000

LOCKWASHER - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

28

Echo 00300-08000

WASHER - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

29

Echo 00200-04000

NUT - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

30

Echo 00303-04000

LOCKWASHER - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

31

Echo 00300-04000

WASHER - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

32

Echo 00105-05150

BOLT - 5X15

$

$

Currently unavailable

33

Echo 00303-05000

LOCKWASHER - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

34

Echo 00300-05000

WASHER - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

35

Echo 00112-04100

SCREW - 4X10 -- TAPPING
(Superseded to Discontinued)

Note: M4 x 10

$

$

Not available
