G 1236 (55AC5GMR050) - Cub Cadet Walk-Behind Mower Vari-Touch Drive Assembly Parts Diagram

Walk-Behind Mower

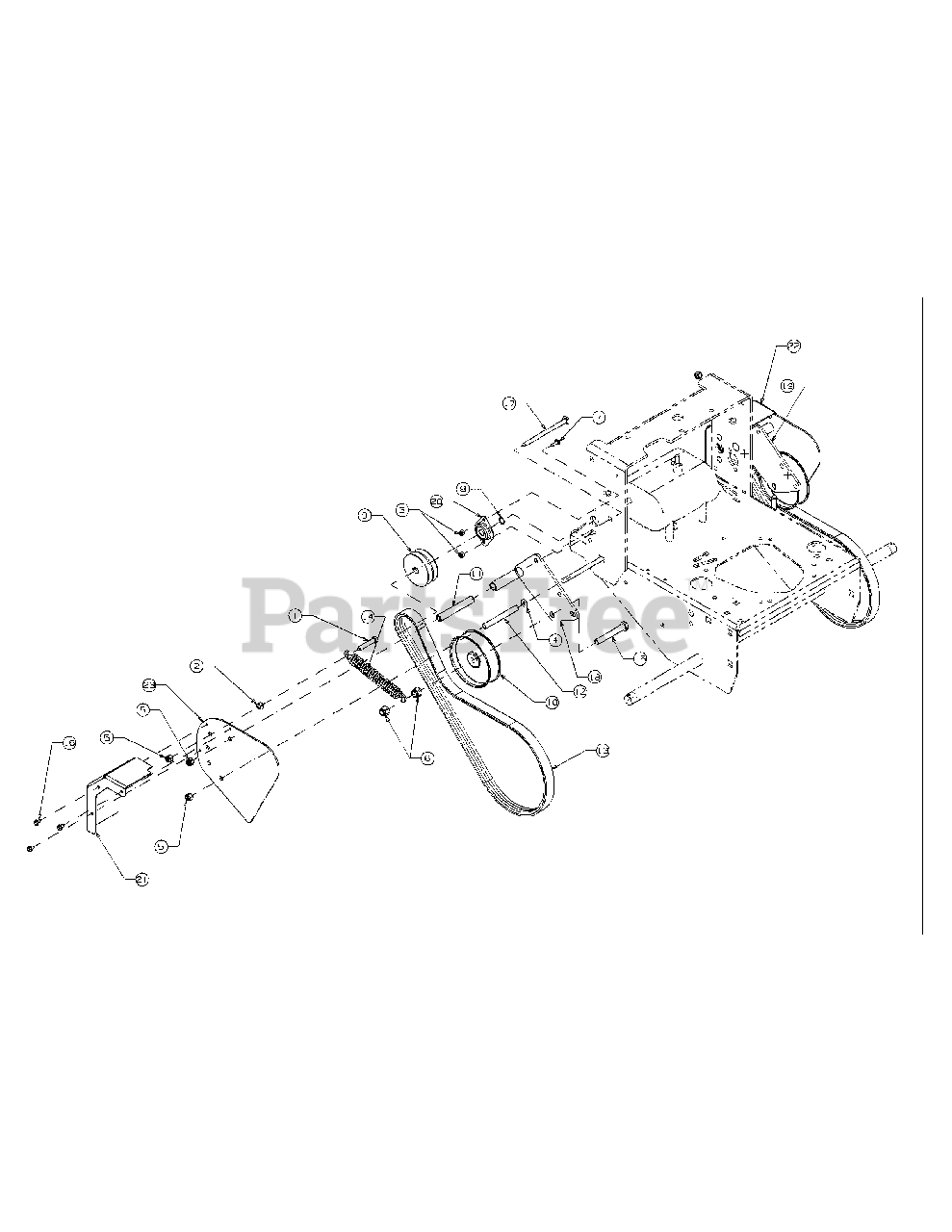

Vari-Touch Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16, 2.00

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00083192

Flat Washer
(Superseded to 736-0258)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$7.49

$

In Stock, only 1 left!

0

7

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .750

$

$

Not available

8

Cub Cadet 00021964

External Retain Ring

$

$

Not available

9

Cub Cadet 00021969

Jackshaft Pulley

$

$

Not available

10

Cub Cadet 00021976

Flat Idler Drive

$

$

Not available

11

Cub Cadet 00036665

Idler Sleeve

$

$

Not available

12

Cub Cadet 01000130

Spacer Tube

$

$

Not available

13

Cub Cadet 01000151

Belt, V

$68.99

$

In Stock, only 2 left!

0

14

Cub Cadet 01000199

Extension Spring

$18.99

$

In Stock, Qty 16

0

15

Cub Cadet 01000226

Hex Cap Screw, 1/2-13, 3.50

$

$

Not available

16

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 01000642

Carriage Bolt, 3/8-16 x 5.50

$18.99

$

In Stock, only 3 left!

0

18

Cub Cadet 01001009-0637

Right Idler Bracket

$

$

Not available

19

Cub Cadet 01001011-0637

Left Idler Bracket

$

$

Not available

20

Cub Cadet 02000487

Bearing Housing
(Superseded to 741-04566)

$16.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02005514-0637

Right Hand Outer Belt Cover

$

$

Not available

22

Cub Cadet 02005515-0637

Left Hand Outer Belt Cover

$

$

Not available

23

Cub Cadet 02005534-0637

Belt Guard

$

$

Not available
