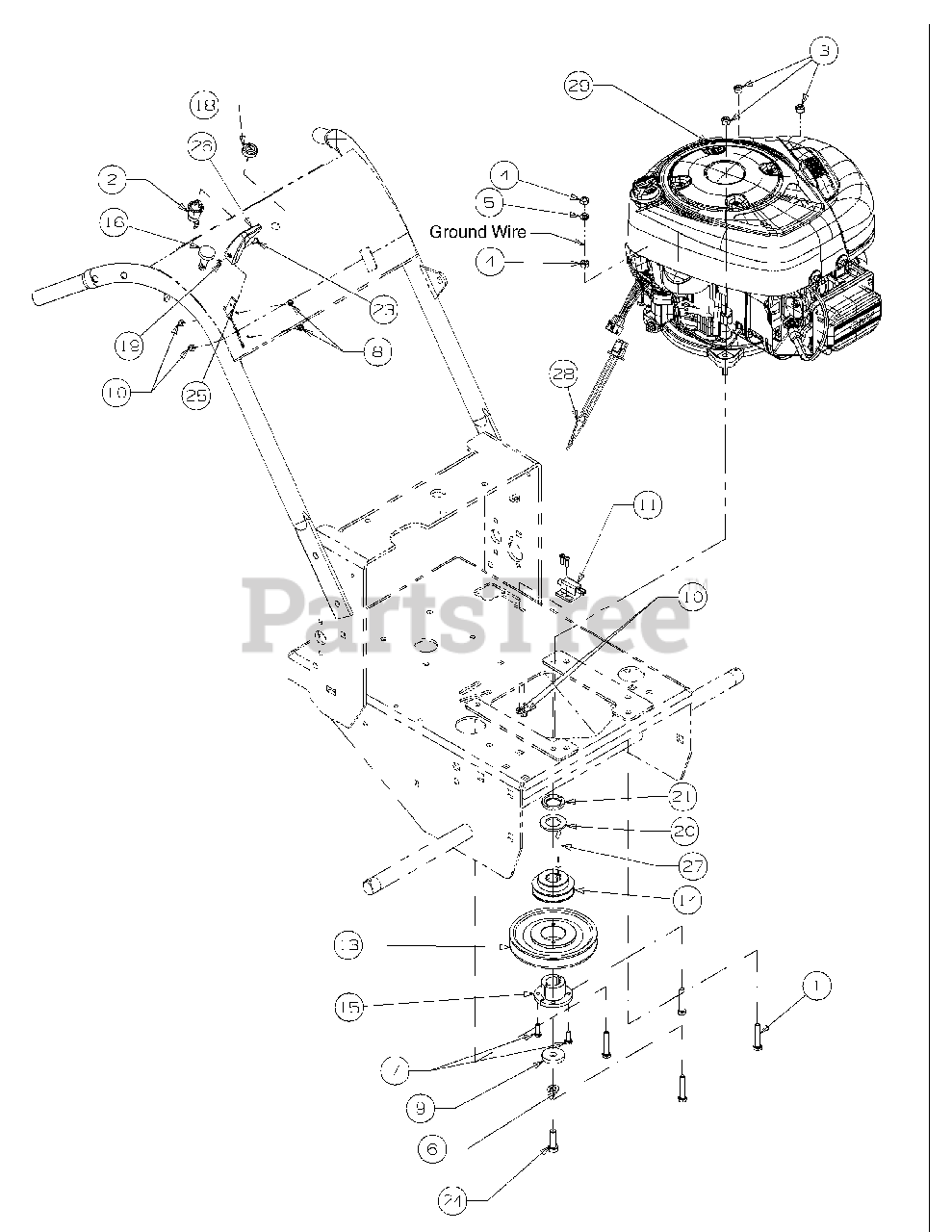

G 1236 (55AC5GMR250) - Cub Cadet Walk-Behind Mower Briggs Engine Accessories Parts Diagram

Walk-Behind Mower

Briggs Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Cap Screw, 5/16-18 x 1-3/4

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

3

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

5

Cub Cadet 00012168

Lock Washer, 5/16 Zinc

$

$

Not available

6

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

7

Cub Cadet 00013131

Hex Cap Screw, 1/4-20 x 0.75

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

11

Cub Cadet 00018324

Delta Switch

$

$

Not available

13

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00021972

Traction Pulley

$

$

Not available

15

Cub Cadet 00021973

Bushing

$

$

Not available

16

Cub Cadet 00030466

Choke Cable

$

$

Not available

17

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00032097

Nut w/cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

19

Cub Cadet 00060056

Nut, 8-32, w/Star Washer

$7.49

$

In Stock, only 1 left!

0

20

Cub Cadet 00072586

Flat Washer
(Superseded to 736-0250)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 00073094

Spacer, Engine Pulley

$15.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-3217

Screw, 8-32 x 0.375

$7.49

$

In Stock, only 4 left!

0

24

Cub Cadet 01002884

Hex Cap Screw, 7/16-20 x 1-1/4

$

$

Not available

25

Cub Cadet 01003273P

Throttle Cable

$

$

Not available

26

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

In Stock, Qty 5

0

27

Cub Cadet 01007533

Key Stick, 1/4 x 1/4 x 2-3/4

$12.99

$

In Stock, Qty 8

0

28

Cub Cadet 01009826P

Harness Adaptor

$

$

Not available

29

Cub Cadet 02005500

12.5 Hp Briggs Engine
(Superseded to BS-219902-3015)

$1574.99

$

Usually ships in 3-6 days

0

Cub Cadet 00021521

Harness Wire

Note: Not shown

$

$

Not available

Cub Cadet 01000194

Belt
(Superseded to 01000194P)

Note: Not shown

$57.99

$

In Stock, only 4 left!

0

Cub Cadet BS-797007

Air Filter (Primary)
(Superseded to BS-794421)

Note: Not shown

$16.99

$

In Stock, Qty 20+

0

Cub Cadet BS-697292

Air Filter (safety)

Note: Not shown

$5.99

$

In Stock, Qty 20+

0

Cub Cadet BS-492932S

Oil Filter

Note: Not shown

$12.99

$

In Stock, Qty 20+

0

Cub Cadet BS-298090S

Fuel Filter

Note: Not shown

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

Note: Not shown

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 00021521

Harness Wire

Note: Not shown

$

$

Not available
