G 1332 (55AI5GMQ750) - Cub Cadet Walk-Behind Mower Fabricated Cutter Deck 32-Inch Parts Diagram

Walk-Behind Mower

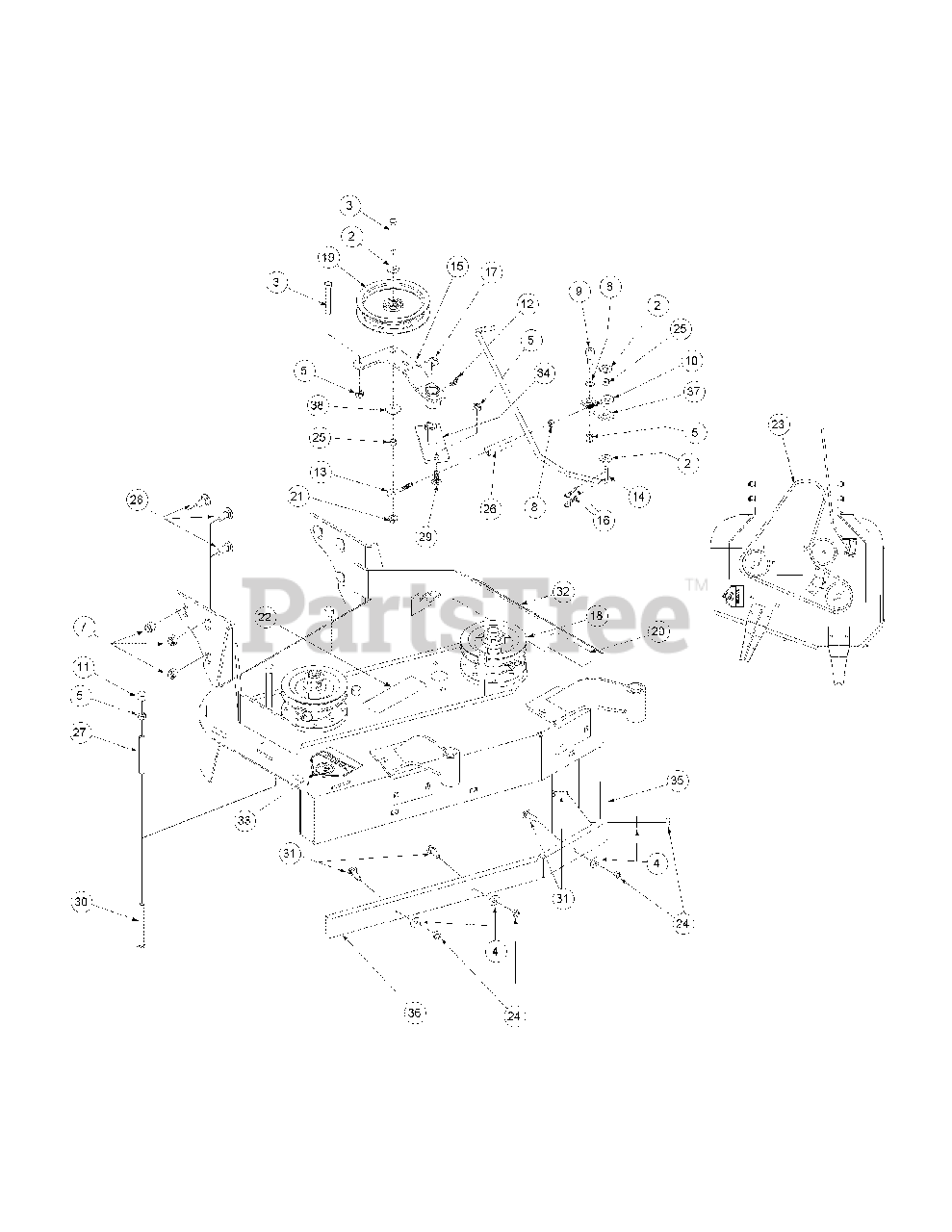

Fabricated Cutter Deck 32-Inch Parts Diagram

  • Title

1

Cub Cadet 01005046-0637

Deck Stiffener

$

$

Not available

2

Cub Cadet 00006168

Flat Washer, 3/8 Zinc
(Superseded to 936-3015)

$3.99

$

In Stock, only 3 left!

0

3

Cub Cadet 710-3022

Hex Cap Screw, 3/8-16 x 2.75

$4.49

$

In Stock, Qty 10

0

4

Cub Cadet 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 10

0

5

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00012402

Shim Washer

$

$

Not available

7

Cub Cadet 01010119

FlangeLock Nut, 1/2-13

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00013433

Hex Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00014439

Shoulder Bolt

$15.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00014459

Eye Bolt, Right Hand

$10.99

$

In Stock, only 3 left!

0

11

Cub Cadet 00018468

Cap, Black Vinyl

$

$

Not available

12

Cub Cadet 00021958

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, only 4 left!

0

13

Cub Cadet 00019271

Eye Bolt, Left Hand

$13.99

$

In Stock, Qty 5

0

14

Cub Cadet 00021884

Blade Clutch, Rod

$

$

Not available

15

Cub Cadet 00021895

Idler Arm

$158.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 741-04333

Bearing

$9.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00021956

Hair Pin, 3/8"-1/2"
(Superseded to 914-04023)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 00021961

E-Ring, Retainer

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01007499

Deck Pulley

$157.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00021977

Idler Deck Take-up

$66.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 00030633

Decal Rotating Blade

$

$

Not available

21

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 00030779

Belt Drive

$70.99

$

In Stock, only 3 left!

0

24

Cub Cadet 00034224

Lock Nut, 3/8-16

$

$

Not available

25

Cub Cadet 00062715

Turnbuckle, Sleeve

$17.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 00092370

Turnbuckle

$26.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01000160

Spacer, Belt Guide

$

$

Not available

28

Cub Cadet 01000517

Carriage Bolt, 1/2-13 x 1-1/4
(Superseded to 710-05375)

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 9

0

30

Cub Cadet 01000644

Carriage Bolt, 3/8-16 x 4.5

$

$

Not available

31

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 7

0

32

Cub Cadet 01006882

Deck 32"

$

$

Not available

33

Cub Cadet 01002166

Decal, Danger, Hands and Feet

$11.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 00063043

Idler Base

$51.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01003047-0637

Bumper, Deck 32"

$

$

Not available

36

Cub Cadet 01003048-0637

Bumper, Deck 32"

$

$

Not available

37

Cub Cadet 01003153-0637

Pivot Arm

$14.99

$

In Stock, only 3 left!

0

38

Cub Cadet 936-0133

Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available
