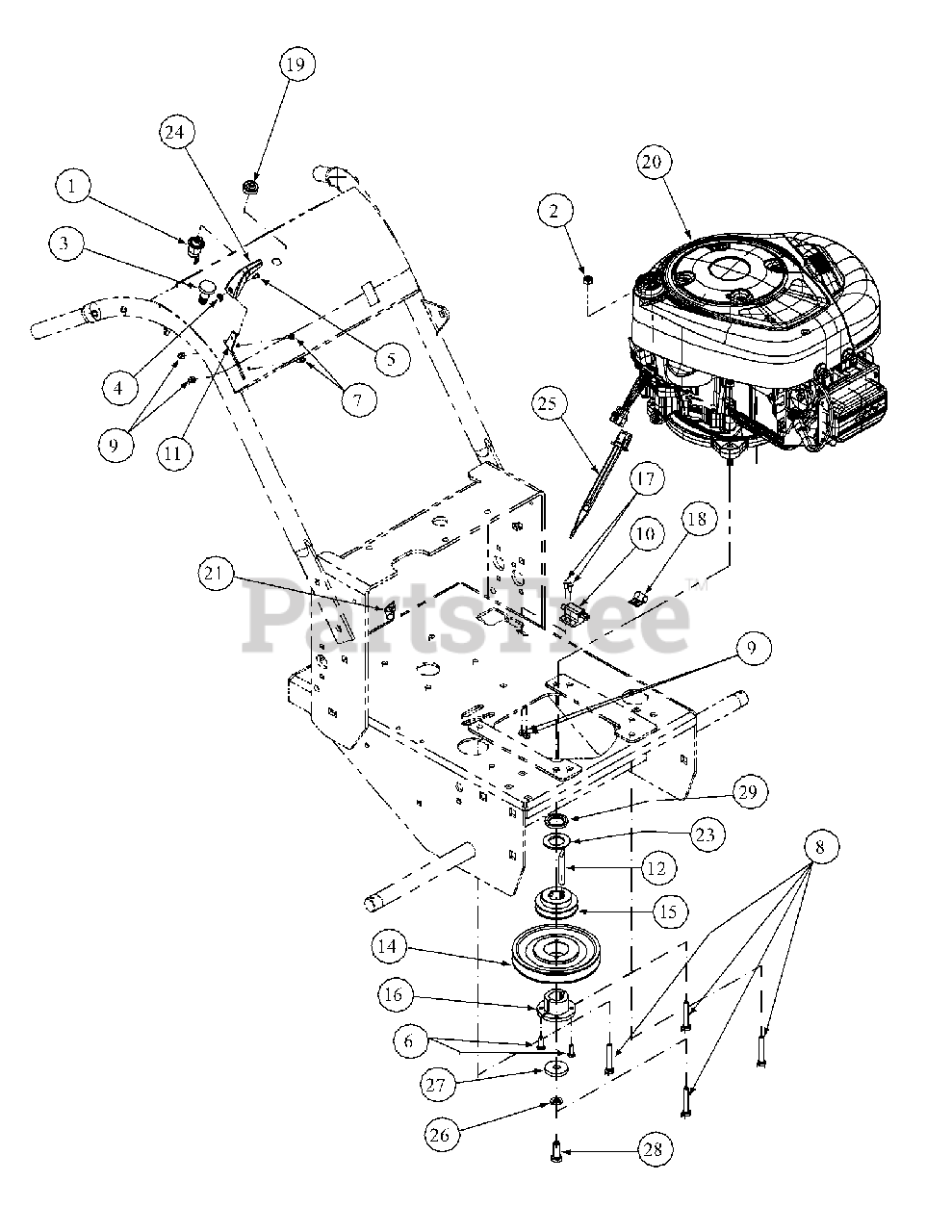

G 1336 (55AE200R718) - MTD Pro Walk-Behind Mower Briggs Engine Assembly Parts Diagram

Pro Walk-Behind Mower

Briggs Engine Assembly Parts Diagram

  • Title

1

MTD 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

2

MTD 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

3

MTD 00030466

Choke Cable

$

$

Not available

4

MTD 00060056

Nut, 8-32, w/Star Washer

$6.99

$

In Stock, only 1 left!

0

5

MTD 710-3217

Screw, 8-32 x 0.375

$6.99

$

In Stock, Qty 10

0

6

MTD 00013131

Hex Cap Screw, 1/4-20 x 0.75

$6.49

$

In Stock, only 1 left!

0

7

MTD 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

8

MTD 00013198

Hex Cap Screw, 5/16-18 x 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 13

0

9

MTD 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

10

MTD 00018324

Delta Switch

$

$

Not available

11

MTD 01003273P

Throttle Cable

$

$

Not available

12

MTD 01007533

Key Stick, 1/4 x 1/4 x 2-3/4

$11.99

$

Usually ships in 3-6 days

0

13

MTD 00021521

Harness Wire

$

$

Not available

14

MTD 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

15

MTD 00021972

Traction Pulley

$

$

Not available

16

MTD 00021973

Bushing

$

$

Not available

17

MTD 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

18

MTD 00031081

Support Clamp Tubing, 1/2"

$6.49

$

Usually ships in 3-6 days

0

19

MTD 00032097

Nut w/cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

21

MTD 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

MTD 01000194

Belt
(Superseded to 01000194P)

$54.99

$

In Stock, only 1 left!

0

23

MTD 00072586

Flat Washer
(Superseded to 736-0250)

$4.49

$

In Stock, Qty 9

0

24

MTD 731-04914

Throttle Control Knob

$13.99

$

In Stock, only 3 left!

0

25

MTD 01009826P

Harness Adaptor

$

$

Not available

26

MTD 00012195

Lock Washer, 7/16

$

$

Not available

27

MTD 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

28

MTD 01002885

Hex Cap Screw, M10 x 1.5, 30mm, GR10.9

$

$

Not available

29

MTD 00073094

Spacer, Engine Pulley

$14.99

$

Usually ships in 3-6 days

0
