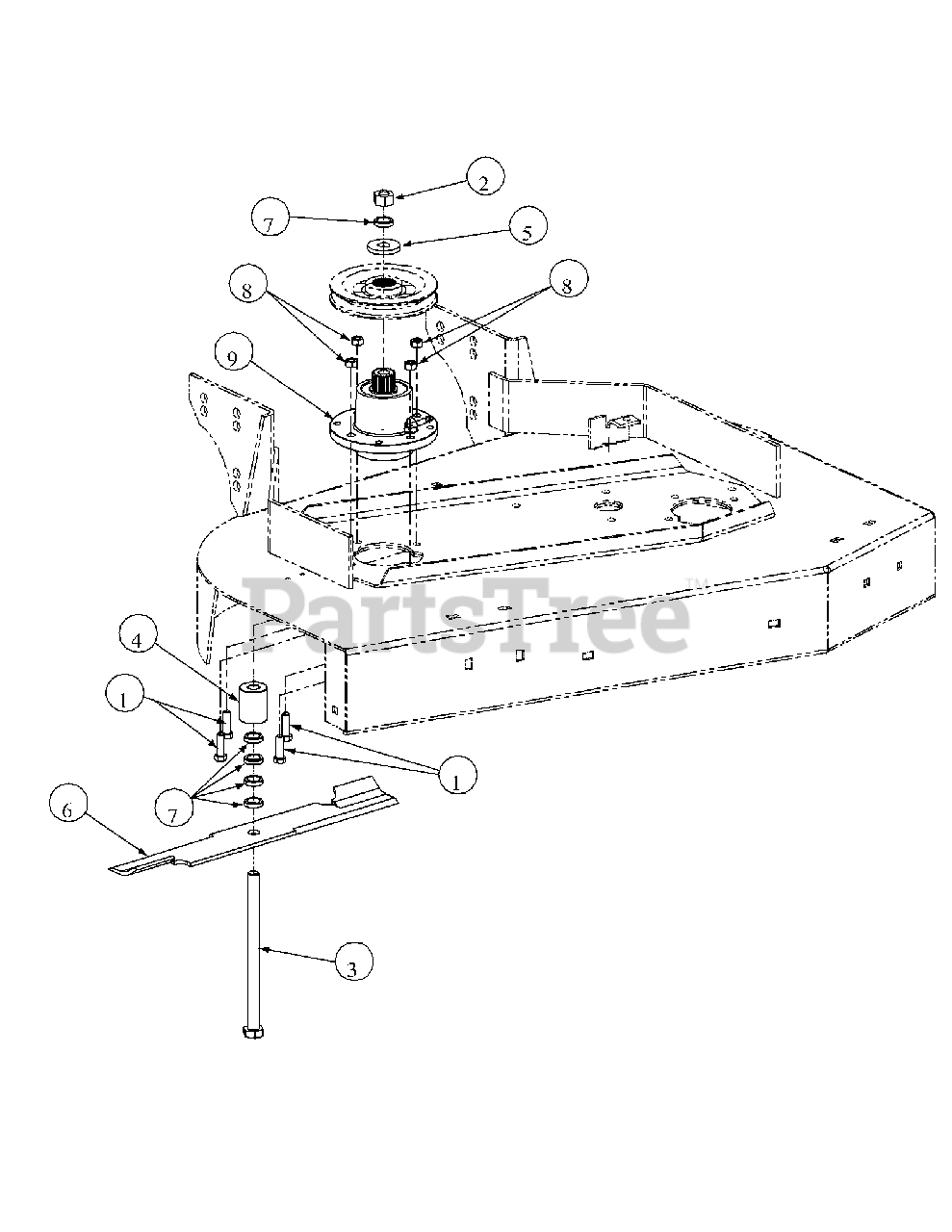

G 1336 (55AE200R718) - MTD Pro Walk-Behind Mower Spindle Assembly Parts Diagram

Pro Walk-Behind Mower

Spindle Assembly Parts Diagram

  • Title

1

MTD 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

Usually ships in 3-6 days

0

2

MTD 00011807

Hex Nut, 5/8-11

$

$

Not available

3

MTD 01007591P

Hex Cap Screw, 5/8-11 x 9

$

$

Not available

4

MTD 01007577P

Blade Spacer, .630 x 1.500 x 1.850

$29.99

$

Usually ships in 3-6 days

0

5

MTD 01007595P

Flat Washer, .656 ID x 1.313 OD

$18.99

$

Usually ships in 3-6 days

0

6

MTD 00050125

18" Rotary Blade (36" Deck)

$45.99

$

Usually ships in 3-6 days

0

7

MTD 00021924

Blade Spacer, 5/8 ID, 1/4 Thick

$

$

Not available

8

MTD 00034224

Lock Nut, 3/8-16

$

$

Not available

9

MTD 01007491P

Spindle Assembly

$373.99

$

Usually ships in 3-6 days

0

MTD 01007642

Grease Fitting, 1/4-28 x 1.609
(Superseded to 737-04352)

Note: (not shown)

$16.99

$

Usually ships in 3-6 days

0
