G 1336 (55AI5GMR750) - Cub Cadet Walk-Behind Mower Kawasaki Kai Engine Assembly 13HP Parts Diagram

Walk-Behind Mower

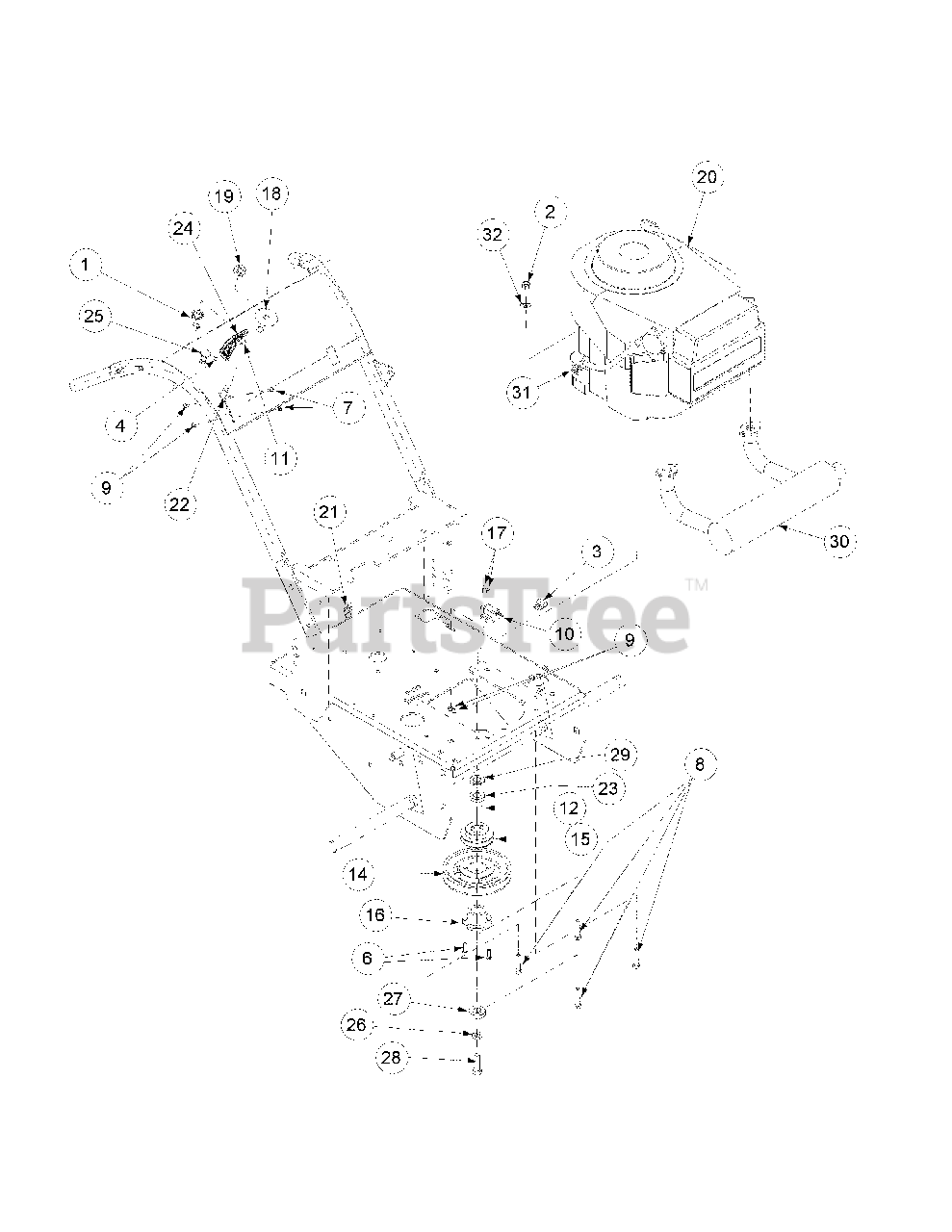

Kawasaki Kai Engine Assembly 13HP Parts Diagram

  • Title

1

Cub Cadet 01010141P

Ignition ON/OFF Switch

$

$

Not available

2

Cub Cadet 00012165

Lock Nut, Nylon Insert, 5/16-18

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00031081

Support Clamp

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 00060056

Nut, 8-32, w/ Star Washer

$7.49

$

In Stock, only 1 left!

0

5

Cub Cadet 01000194

Belt (not shown)
(Superseded to 01000194P)

$57.99

$

In Stock, only 3 left!

0

6

Cub Cadet 00013131

Hex Cap Screw, 1/4-20 x 3/4

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00013198

HHCS, 5/16-18 x 2
(Superseded to 710-3103)

$4.99

$

In Stock, Qty 12

0

9

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 00018324

Delta Switch

$

$

Not available

11

Cub Cadet 710-3217

Machine Screw, 8-32 x 3.8

$7.49

$

In Stock, only 2 left!

0

12

Cub Cadet 01007533

Key Stick, 1/4 x 1/4 x 2-3/4

$12.99

$

In Stock, only 2 left!

0

13

Cub Cadet 02000048

Harness Wire (not shown)

$

$

Not available

14

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00021972

Traction Pulley

$

$

Not available

16

Cub Cadet 00021973

Bushing

$

$

Not available

17

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002006

Decal, Pull Start Overlay

$

$

Not available

19

Cub Cadet 00032097

Nut w/cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

20

Cub Cadet KM-FH381V-AS22S

13 Hp Kawasaki Kai Engine

$

$

Not available

21

Cub Cadet 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

Cub Cadet 01003273P

Throttle Control Cable

$

$

Not available

23

Cub Cadet 736-0250

Flat Washer

$4.99

$

In Stock, Qty 7

0

24

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

In Stock, only 2 left!

0

25

Cub Cadet 02003479P

Choke Cable

$44.99

$

In Stock, only 2 left!

0

26

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

27

Cub Cadet 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 01002885

Hex Cap Screw, M10 x 1.5, 30mm, GR10.9

$

$

Not available

29

Cub Cadet 00073094

Spacer, Engine Pulley

$15.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01009792

Muffler

$

$

Not available

31

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

32

Cub Cadet 00012169

Flat Washer, 5/16

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-11013-7031

Air Filter

Note: (not shown)

$26.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7025

Pre Cleaner

Note: (not shown)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

Note: (not shown)

$18.99

$

Usually ships in 2-5 days

0

Cub Cadet TC-611049

Spark Plug

Note: (not shown)

$4.99

$

In Stock, Qty 20+

0
