G 1432 (55AD231Q150) - Cub Cadet Walk-Behind Mower FC420V-FS12 Cylinder & Crankshaft Parts Diagram

Walk-Behind Mower

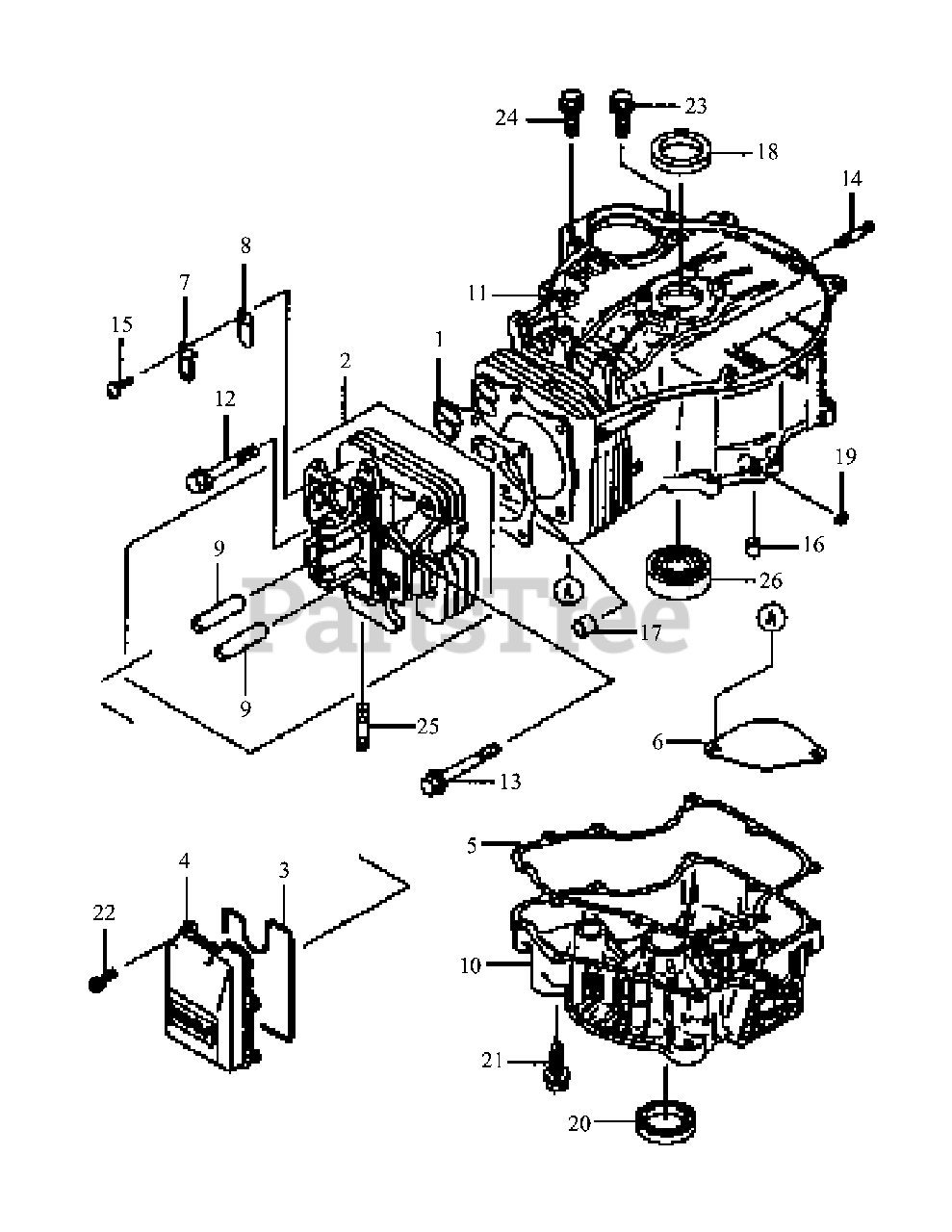

FC420V-FS12 Cylinder & Crankshaft Parts Diagram

  • Title

1

Cub Cadet KM-11004-2096

Gasket, Head

$11.99

$

In Stock, only 3 left!

0

2

Cub Cadet KM-11008-6026

Head, Cylinder

$284.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-11009-2433

Gasket, Rocker Case

$14.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-11022-2070

Case, Rocker

$24.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-11060-2482

Gasket, Crankcase

$22.99

$

In Stock, only 2 left!

0

6

Cub Cadet KM-13183-2264

Plate

$

$

Not available

7

Cub Cadet KM-13270-2055

Plate

$

$

Not available

8

Cub Cadet KM-16126-2113

Valve

$

$

Not available

9

Cub Cadet KM-49002-2107

Guide, Valve

$

$

Not available

10

Cub Cadet KM-49015-6174

Cover, Crankcase

$

$

Not available

11

Cub Cadet KM-49120-2269

Crankcase

$

$

Not available

12

Cub Cadet KM-92002-2273

Bolt

$

$

Not available

13

Cub Cadet KM-92002-2310

Bolt

$

$

Not available

14

Cub Cadet KM-92004-2083

Stud 6x14

$1.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

16

Cub Cadet KM-92043-1263

Pin

$0.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92043-1266

Pin

$1.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92049-2096

Seal, Oil

$8.99

$

In Stock, only 1 left!

0

19

Cub Cadet KM-92049-2097

Seal, Oil

$2.49

$

In Stock, Qty 9

0

20

Cub Cadet KM-92049-2227

Seal, Oil

$6.99

$

In Stock, Qty 12

0

21

Cub Cadet KM-92150-2252

Bolt 8x45

$2.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-130B0614

Bolt, Flange

Note: NLA

$

$

Not available

23

Cub Cadet KM-130B0830

Bolt, Flange
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KM-130B0835

Bolt, Flange

$

$

Not available

25

Cub Cadet KM-171G0820

Bolt, Stud

$

$

Not available

26

Cub Cadet KM-601A6307

Bearing, Ball

$

$

Not available
