G 1432 (55AD231Q150) - Cub Cadet Walk-Behind Mower Handle Assembly Parts Diagram

Walk-Behind Mower

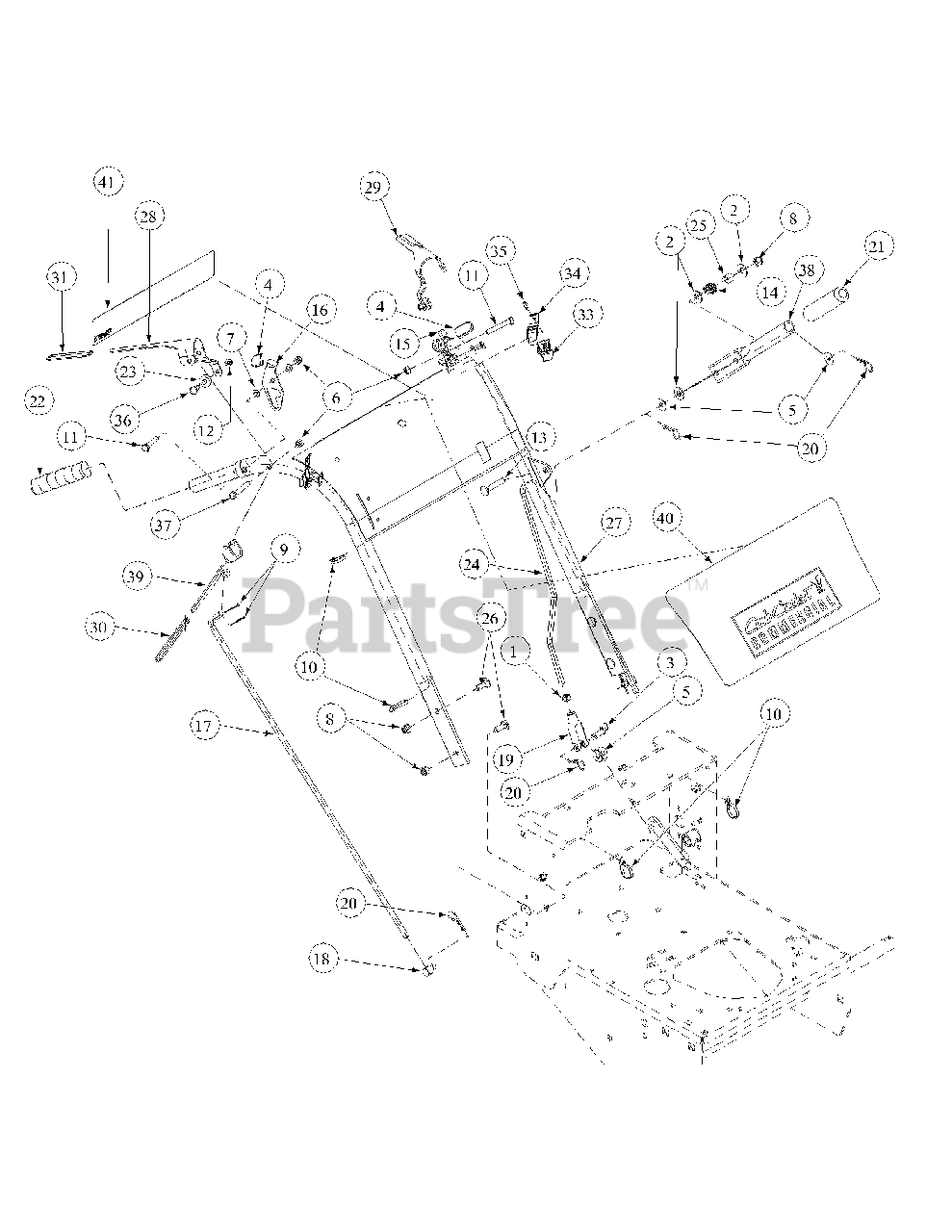

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00006168

Flat Washer, 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 14

0

3

Cub Cadet 00009678

Clevis Pin, 3/8 x 1-1/8 Zinc
(Superseded to 711-05735)

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00011211

Grip, Neutral Latch, 1.25"

$8.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00012158

Flat Washer, 3/8 Zinc

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 00012169

Flat Washer, 5/16 Zinc

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet 00012204

Cotter Pin, 3/32 x 3/4, Zinc

$

$

Not available

10

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.99

$

In Stock, Qty 12

0

12

Cub Cadet 712-04177

Lock Nut, Nylon Insert

$7.49

$

In Stock, only 3 left!

0

13

Cub Cadet 00014270

Carriage Bolt, 3/8-16 x 2
(Superseded to 710-04157)

$9.49

$

In Stock, only 2 left!

0

14

Cub Cadet 00021797

Spring, .850 OD x 1

$9.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 00021858

Neutral Latch, Left Hand

Note: NLA

$

$

Not available

16

Cub Cadet 00021910

Neutral Latch, Right Hand

$

$

Not available

17

Cub Cadet 00021927

Steering Control Rod

$35.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00021943

Joint Swivel

$20.99

$

In Stock, only 1 left!

0

19

Cub Cadet 00021955

Yoke, 3/8-16 Female

$45.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 00021956

Hair Pin 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 00022223

Handle Grip, Black, 1"

$

$

Not available

22

Cub Cadet 00030378

Plastic Handle Grip, Black, 4-5/8

$

$

Not available

23

Cub Cadet 00071691

Control Rod, Hydro Spacer

$12.99

$

In Stock, only 2 left!

0

24

Cub Cadet 00071879

Blade Clutch Rod

$

$

Not available

25

Cub Cadet 00076730

Spring Sleeve

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 2

$5.99

$

In Stock, only 2 left!

0

27

Cub Cadet 01001556-0637

Handle Assembly

$

$

Not available

28

Cub Cadet 02002360-0637

Operator Presence Control RH

$40.99

$

In Stock, only 1 left!

0

29

Cub Cadet 02002362-0637

Operator Presence Control LH

$

$

Not available

30

Cub Cadet 01001714

Control Sleeve, Black

$11.99

$

In Stock, only 2 left!

0

31

Cub Cadet 01001715

Operator Control Sleeve, Yellow

$11.99

$

In Stock, only 1 left!

0

32

Cub Cadet 01001716

Harness Assembly Adapter

$

$

Not available

33

Cub Cadet 01001717

Switch Mounting Snap
(Superseded to 925-3166)

$17.99

$

In Stock, Qty 20+

0

34

Cub Cadet 01001863

Operator Presence Return Spring

$

$

Not available

35

Cub Cadet 01001864

Hex Index Washer Screw, 0.500
(Superseded to 1767754)

$

$

Not available

36

Cub Cadet 01001919

Shoulder Screw, .38 x .412, 1/4-28
(Superseded to 738-0826)

$13.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 01001972

Hex Cap Screw, 5/16-18, 2.00

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01003209-0637

Blade Clutch Lever

$

$

Not available

39

Cub Cadet 02002358-0637

Lever Assembly Control

$

$

Not available

40

Cub Cadet 01006668

Label Commercial Mower Panel

$47.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01006132

Label Commercial Mower Instruction

$

$

Not available
