G 1432 (55AD231Q150) - Cub Cadet Walk-Behind Mower Kawasaki Engine Assembly Parts Diagram

Walk-Behind Mower

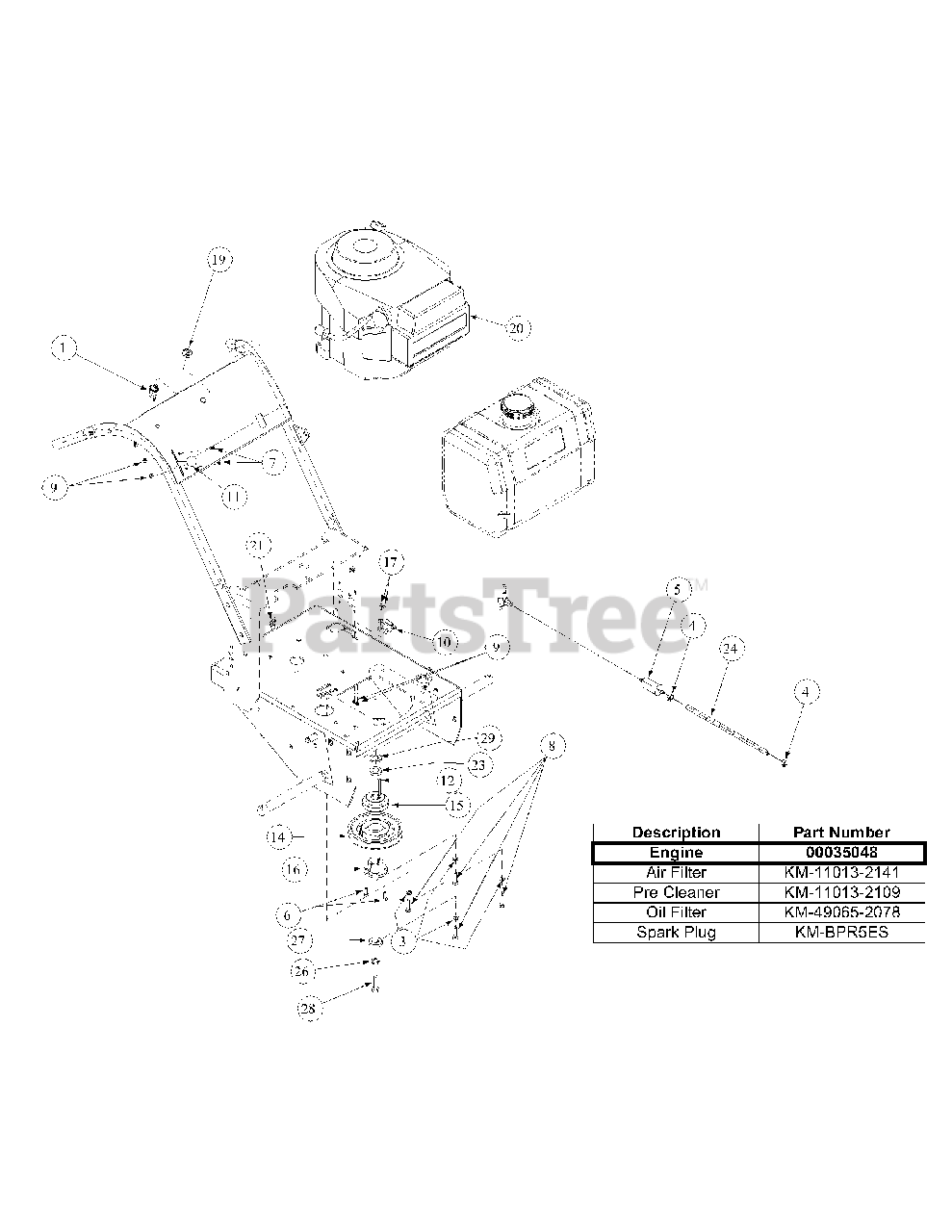

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

3

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available

4

Cub Cadet 00012235

Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 00012292

Kohler Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00014542

Cap Screw, 1.25 x 30

Note: NLA

$

$

Not available

9

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

10

Cub Cadet 00018324

Delta Switch

$

$

Not available

11

Cub Cadet 00019550P

Control Throttle w/Detent, 39.2

$

$

Not available

12

Cub Cadet 01007533

Key Stick, 1/4 x 1/4 x 2-3/4

$11.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 00021521

Harness Wire (not shown)

$

$

Not available

14

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00021972

Traction Pulley

$

$

Not available

16

Cub Cadet 00021973

Bushing

$

$

Not available

17

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 00031081

Support Clamp Tubing, 1/2"

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00032097

Nut w/cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

20

Cub Cadet 00035048

14 HP Kawasaki Engine

Note: NLA

$

$

Not available

21

Cub Cadet 00060807

Support Clamp, 3/8 OD

$

$

Not available

22

Cub Cadet 01000194

Belt (not shown)
(Superseded to 01000194P)

$54.99

$

In Stock, only 1 left!

0

23

Cub Cadet 00072586

Flat Washer
(Superseded to 736-0250)

$4.49

$

In Stock, Qty 10

0

24

12" Fuel Hose x .25 ID

$

$

Not available

26

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

27

Cub Cadet 00013675

Clutch Washer

$8.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 01002885

Hex Cap Screw, M10 x 1.5, 30mm, GR10.9

$

$

Not available

29

Cub Cadet 00073094

Spacer, Engine Pulley

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-11013-2141

Air Filter

$17.99

$

In Stock, Qty 12

0

Cub Cadet KM-11013-2109

Pre Cleaner

$5.49

$

In Stock, Qty 8

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet KM-BPR5ES

Spark Plug

$3.49

$

In Stock, Qty 20+

0
