G 1436 (55AE231R150) - Cub Cadet Walk-Behind Mower FC420V-FS12 Electric Equipment Parts Diagram

Walk-Behind Mower

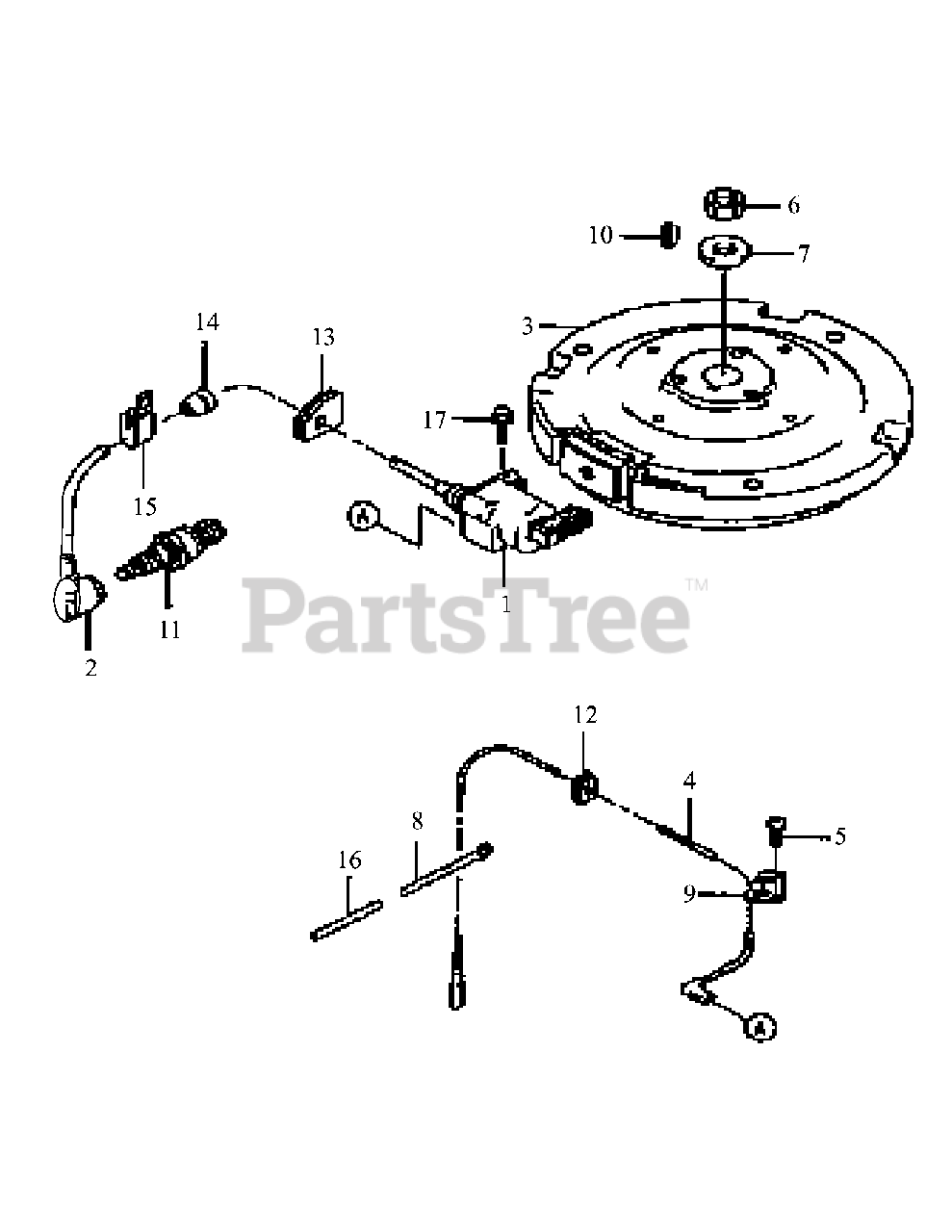

FC420V-FS12 Electric Equipment Parts Diagram

  • Title

1

Cub Cadet KM-21121-2086

Coil, Ignition

$108.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-21130-2060

Cap, Spark Plug

$14.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-21194-2299

Flywheel

$

$

Not available

4

Cub Cadet KM-26011-2331

Wire, Lead L=260

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

6

Cub Cadet KM-92015-2167

Nut

$7.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-92022-2229

Washer

Note: NLA

$3.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-92037-2063

Clamp

$0.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92037-2177

Clamp

$

$

Not available

10

Cub Cadet KM-92038-2094

Key

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KM-BPR5ES

Spark Plug

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92071-2099

Grommet

$

$

Not available

13

Cub Cadet KM-92071-2112

Grommet

$6.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92071-517

Grommet

$

$

Not available

15

Cub Cadet KM-92170-2081

Clamp

$

$

Not available

16

Cub Cadet KM-92190-2167

Tube

$1.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-130B0520

Bolt, Flange

$

$

Not available
