G 1548 (55AE232S750) - Cub Cadet Walk-Behind Mower FH430V-AS22 Air Filter & Muffler Parts Diagram

Walk-Behind Mower

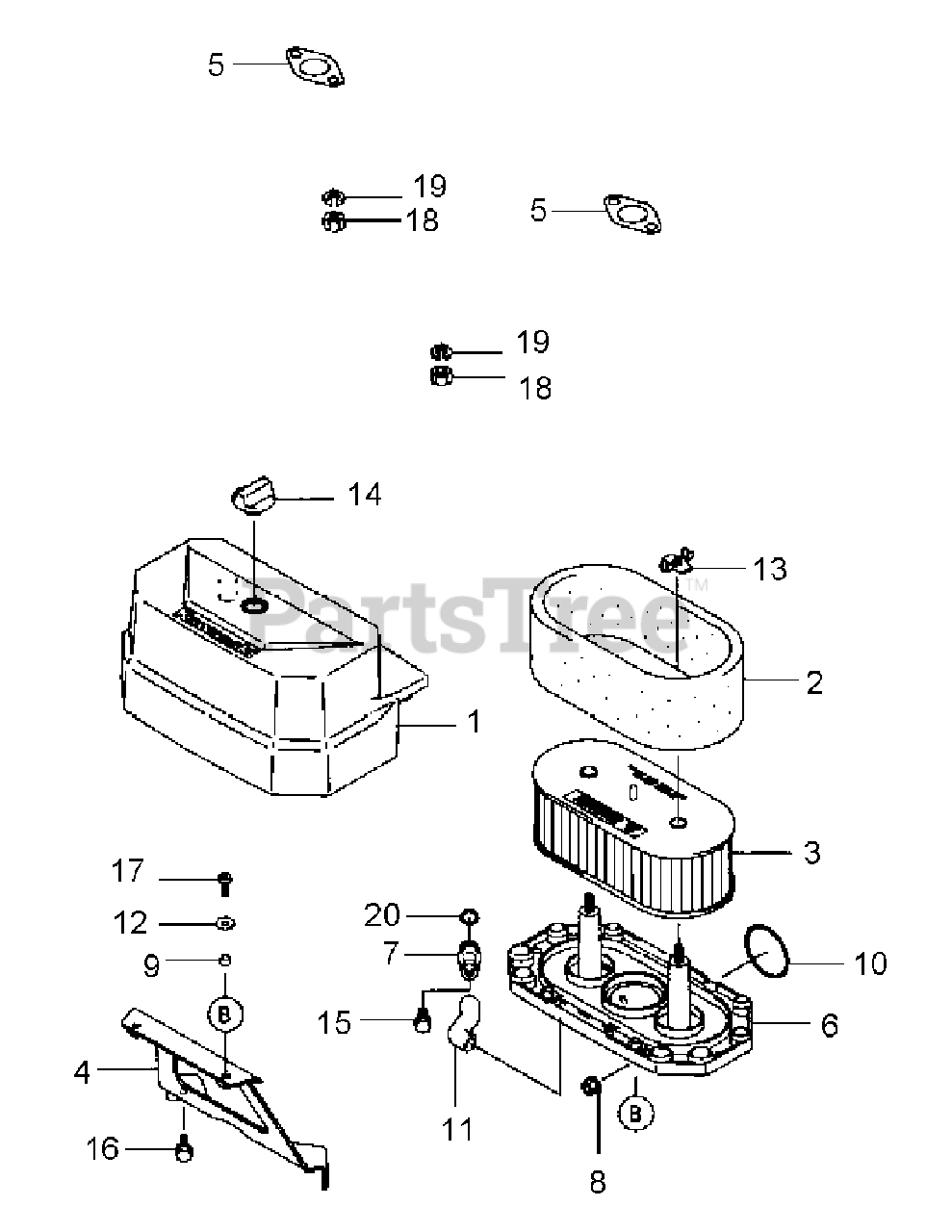

FH430V-AS22 Air Filter & Muffler Parts Diagram

  • Title

1

Cub Cadet KM-11011-7045

AIR FILTER CASE

$22.99

$

In Stock, Qty 13

0

2

Cub Cadet KM-11013-7025

PRE FILTER ELEMENT

$6.99

$

In Stock, Qty 10

0

3

Cub Cadet KM-11013-7031

AIR FILTER ELEMENT

$26.99

$

In Stock, Qty 12

0

4

Cub Cadet KM-11053-7022

BRACKET

$36.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-11060-7021

MUFFLER GASKET

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-16060-7016

INTAKE PIPE

$22.99

$

In Stock, only 4 left!

0

7

Cub Cadet KM-32154-7006

PIPE

$8.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-92015-1367

NUT

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet KM-92026-7001

SPACER, 6.2x7.9x5

Note: NLA

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KM-92055-7015

O-RING

$1.49

$

In Stock, Qty 6

0

11

Cub Cadet KM-92192-7010

TUBE

$8.49

$

In Stock, Qty 10

0

12

Cub Cadet KM-92200-2070

WASHER

$1.49

$

In Stock, only 4 left!

0

13

Cub Cadet KM-92210-7004

NUT

$3.49

$

In Stock, only 3 left!

0

14

Cub Cadet KM-92210-7019

NUT

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-130BA0610

FLANGED BOLT

$1.49

$

In Stock, only 2 left!

0

16

Cub Cadet KM-130BA0612

FLANGED BOLT

$1.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-220B0614

PAN SCREW

$

$

Not available

18

Cub Cadet KM-317R0800

HEX NUT

$2.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-461DA0800

SPRING WASHER

$0.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-670B2010

O-RING 10mm

$1.99

$

In Stock, Qty 7

0
