G 1548 (55AE232S750) - Cub Cadet Walk-Behind Mower FH430V-AS22 Carburetor Parts Diagram

Walk-Behind Mower

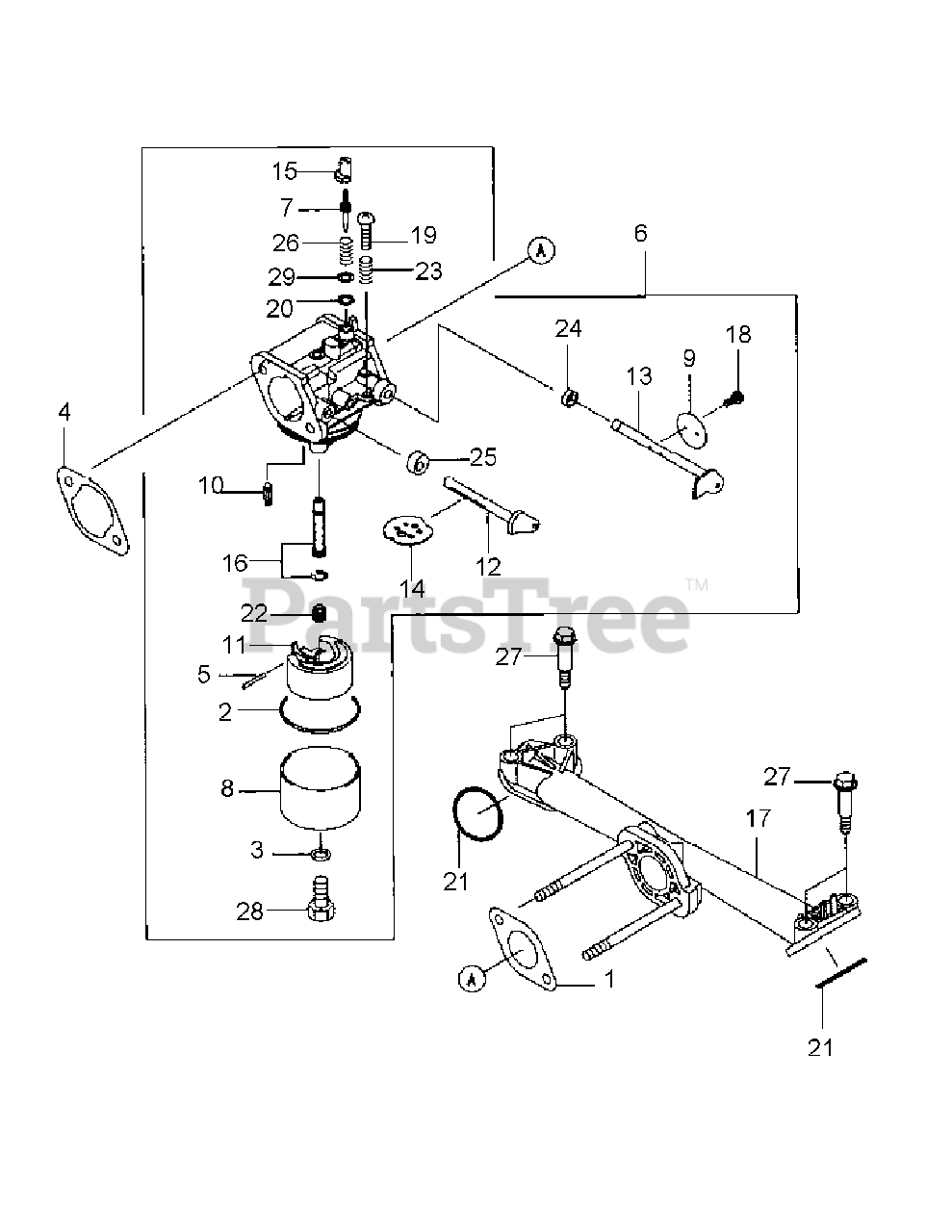

FH430V-AS22 Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11061-7004

INSULATOR GASKET

$2.49

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11061-7009

CHAMBER GASKET

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11061-7010

GASKET

$3.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-11061-7018

AIR CLEANER GASKET

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-13107-7018

SHAFT

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-15003-7061

CARBURETOR ASSY.

$297.99

$

In Stock, Qty 5

0

7

Cub Cadet KM-16014-7002

PILOT AIR SCREW
(Superseded to KM-16014-7005)

$15.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-16020-7003

FLOAT BOWL

$16.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-16025-7006

THROTTLE VALVE

$19.99

$

In Stock, Qty 5

0

10

Cub Cadet KM-16030-7003

FLOAT VALVE

$22.99

$

In Stock, Qty 20+

0

11

Cub Cadet KM-16031-7002

FLOAT

$31.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-16041-7016

CHOKE SHAFT

$17.99

$

In Stock, Qty 7

0

13

Cub Cadet KM-16041-7018

THROTTLE SHAFT

$24.99

$

In Stock, Qty 5

0

14

Cub Cadet KM-16186-7002

CHOKE VALVE ASSY.

$15.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-39076-7001

LIMITER CAP

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet KM-49121-7001

MAIN NOZZLE

$38.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-59076-7005

INTAKE MANIFOLD

$76.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92009-2083

SCREW

$2.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-92009-2349

SCREW

$1.99

$

In Stock, only 2 left!

0

20

Cub Cadet KM-92055-2174

O-RING

Note: NLA

$

$

Not available

21

Cub Cadet KM-92055-7007

O-RING

$0.99

$

In Stock, Qty 20+

0

22

Cub Cadet KM-92063-7026

MAIN JET #88

$18.99

$

In Stock, only 1 left!

0

23

Cub Cadet KM-92081-2234

SPRING

$5.49

$

In Stock, only 3 left!

0

24

Cub Cadet KM-92093-2100

SEAL

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet KM-92093-7003

SEAL

$4.99

$

In Stock, Qty 10

0

26

Cub Cadet KM-92145-7015

SPRING

$3.49

$

In Stock, Qty 6

0

27

Cub Cadet KM-92153-7009

BOLT

$0.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KM-92172-7002

SCREW

$9.49

$

In Stock, Qty 11

0

29

Cub Cadet KM-92200-7014

WASHER

$

$

Not available
