G 1548 (55AI5GMS050) - Cub Cadet Walk-Behind Mower Kawasaki FH430V-CS26 Electrical Equipment Parts Diagram

Walk-Behind Mower

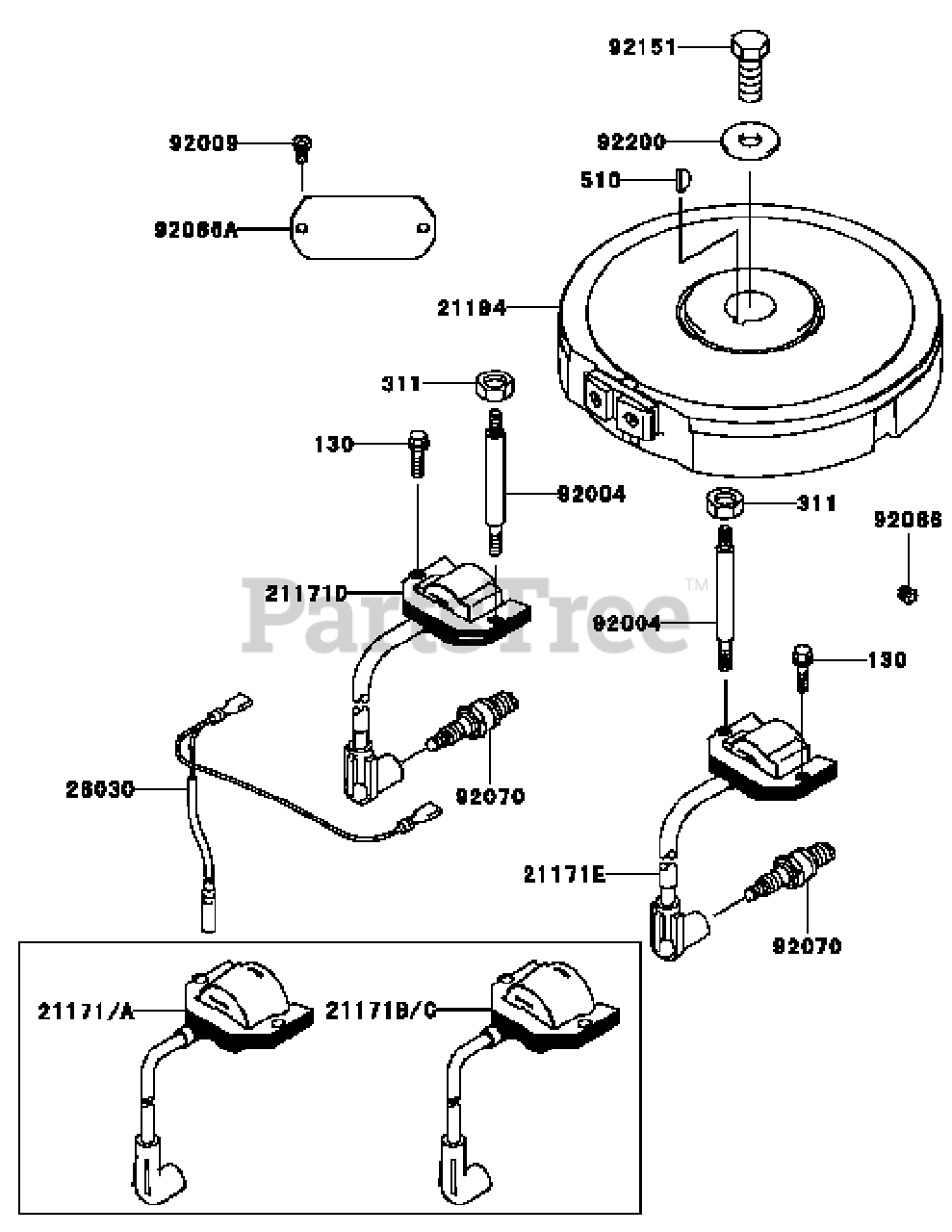

Kawasaki FH430V-CS26 Electrical Equipment Parts Diagram

  • Title

130

Cub Cadet KM-130B0620

BOLT-FLANGED,6X20

$1.49

$

In Stock, Qty 6

0

21171A

Cub Cadet KM-21171-7013

COIL-ASSY-IGNITION
(Superseded to KM-21171-7034)

$81.99

$

In Stock, Qty 20+

0

21171C

Cub Cadet KM-21171-7014

COIL-ASSY-IGNITION
(Superseded to KM-21171-7035)

$54.99

$

In Stock, only 1 left!

0

21171D

Cub Cadet KM-21171-7026

COIL-ASSY-IGNITION
(Superseded to KM-21171-7034)

$81.99

$

In Stock, Qty 20+

0

21171E

Cub Cadet KM-21171-7027

COIL-ASSY-IGNITION
(Superseded to KM-21171-7035)

$54.99

$

In Stock, only 1 left!

0

21194

Cub Cadet KM-21194-7013

FLYWHEEL-COMP

$

$

Not available

26030

Cub Cadet KM-26030-7001

HARNESS

$10.99

$

In Stock, only 1 left!

0

311

Cub Cadet KM-311F0600

NUT-HEX,6MM
(Superseded to KM-311AB0600)

$0.99

$

In Stock, Qty 12

0

510

Cub Cadet KM-510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 9

0

92004

Cub Cadet KM-92004-7008

STUD

$5.99

$

In Stock, Qty 7

0

92009

Cub Cadet KM-92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

92066A

Cub Cadet KM-92066-7005

PLUG

$3.99

$

Usually ships in 2-5 days

0

92070

Cub Cadet TC-611049

PLUG-SPARK,SOLID

$4.99

$

In Stock, Qty 20+

0

92151

Cub Cadet KM-92151-2097

BOLT,12X30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 9

0

92200

Cub Cadet KM-92200-7002

WASHER

$3.49

$

In Stock, only 4 left!

0
