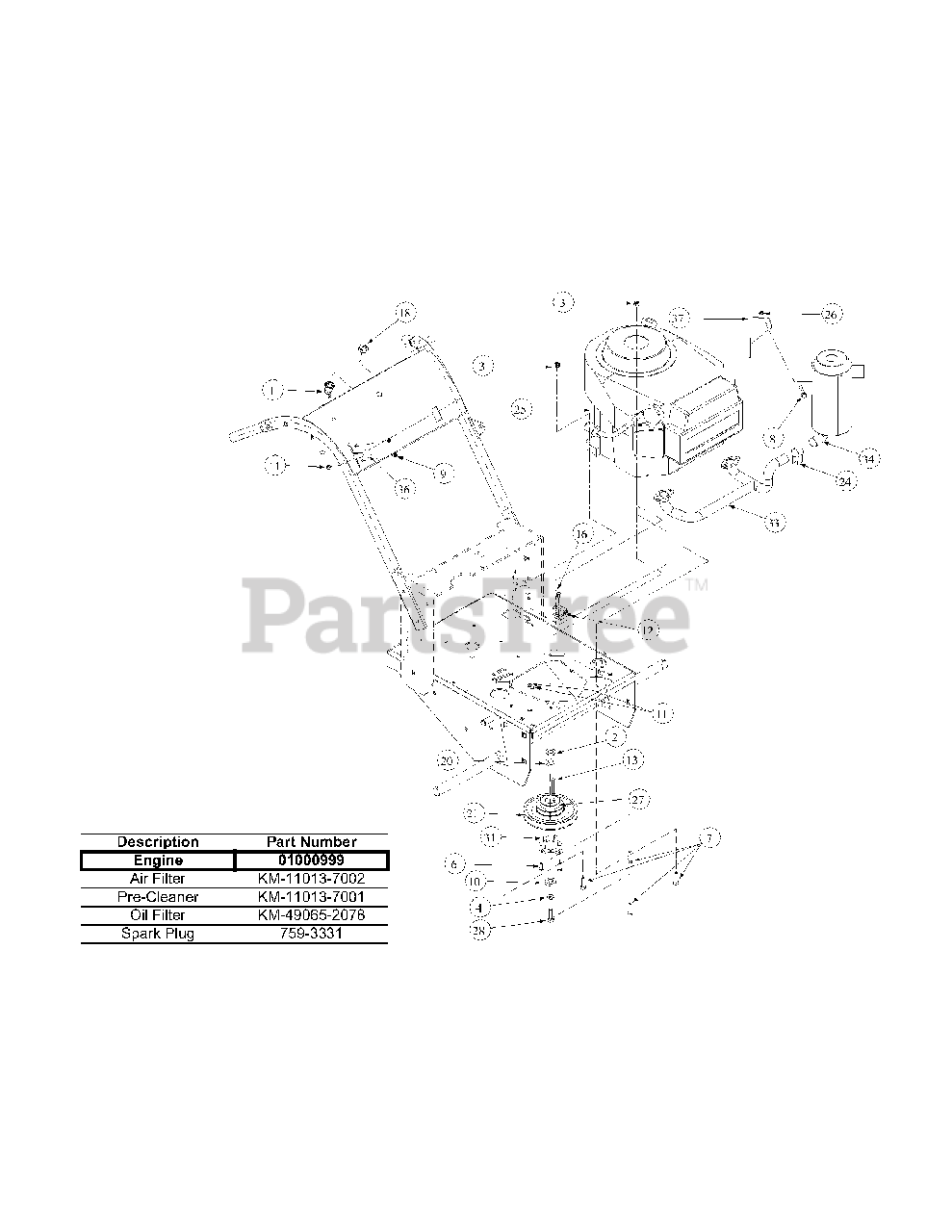

G 1752 (55AE224T150) - Cub Cadet Walk-Behind Mower Kawasaki Engine Assembly Parts Diagram

Walk-Behind Mower

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

2

Cub Cadet 00073094

Engine Pulley Spacer

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet 00012195

Lock Washer

$

$

Not available

6

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.99

$

In Stock, Qty 12

0

8

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 00018324

Delta Switch,

$

$

Not available

13

Cub Cadet 01007533

Key Stick, 1/4 x 1/4 x 2-3/4

$12.99

$

In Stock, only 2 left!

0

14

Cub Cadet 00021521

Harness Wire

$

$

Not available

16

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00032097

Nut, w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

20

Cub Cadet 00072586

Flat Washer
(Superseded to 736-0250)

$4.99

$

In Stock, Qty 7

0

21

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01000194

Belt
(Superseded to 01000194P)

$57.99

$

In Stock, only 3 left!

0

24

Cub Cadet 01000983

Muffler Clamp Assembly

Note: NLA

$

$

Not available

25

Cub Cadet KM-FH500V-AS02

17HP Kawasaki Engine

$

$

Not available

26

Cub Cadet 00022547

Hex Nut Centerlock, 5/16-18

$

$

Not available

27

Cub Cadet 00021972

Traction Pulley

$

$

Not available

28

Cub Cadet 01001082

Hex Cap Screw, 7/16-20 x1-1/4

$7.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 00021973

Bushing

$

$

Not available

32

Cub Cadet 01001811

Harness Hourmeter
(Superseded to 929-04195)

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01001993

Kawasaki Manifold

$

$

Not available

34

Cub Cadet KM-49070-6001

Kawasaki Muffler

$188.99

$

In Stock, Qty 7

0

36

Cub Cadet 01003422

Control Throttle, 42.25

$

$

Not available

37

Cub Cadet 01000192

Kawasaki Muffler Bracket

$

$

Not available

Cub Cadet KM-11013-7002

Air Filter

$21.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7033

Pre Cleaner

$10.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

Usually ships in 2-5 days

0

Cub Cadet 759-3331

Spark Plug

$4.99

$

In Stock, Qty 13

0
