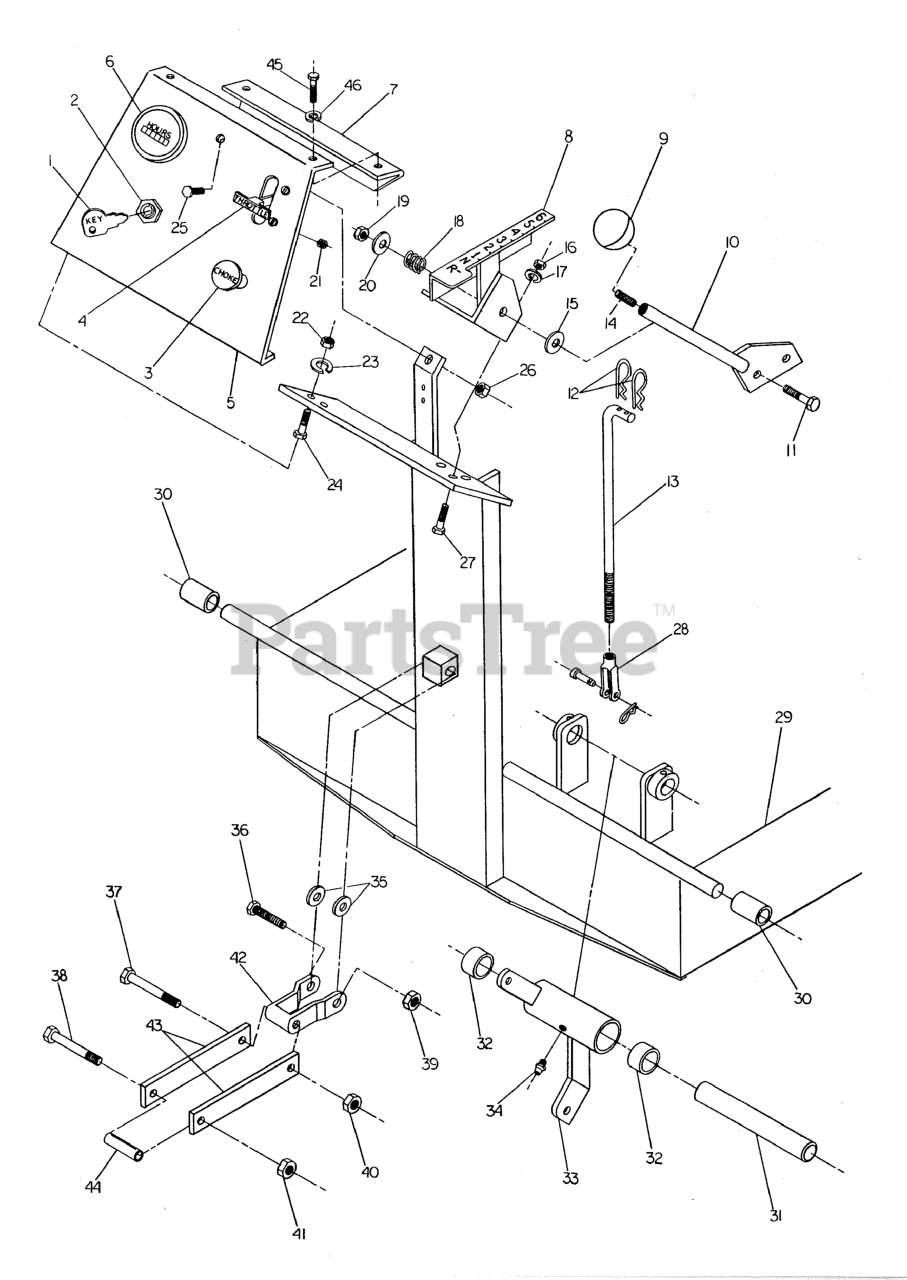

G 1818 - Ferris 48" Front Mount Mower, Gear Drive, 18hp Kohler (SN: G1530 & Above) Instrument & Control Panel Group Parts Diagram

48" Front Mount Mower, Gear Drive, 18hp Kohler

Instrument & Control Panel Group Parts Diagram

  • Title

1

Ferris 5020878

Ignition Key
(Superseded to 1717163SM)

$9.49

$

In Stock, Qty 5

0

2

Ferris 5020836

SWITCH, Ignition

$54.99

$

Usually ships in 2-12 days

0

3

Ferris 5021675

CABLE, CHOKE CONTROL, 45

$67.99

$

Usually ships in 2-12 days

0

4

Ferris 5021151

CABLE, Throttle, 31"

$55.99

$

Usually ships in 2-12 days

0

5

Ferris 41766

Control Panel

$

$

Currently unavailable

6

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

7

Ferris 41818

Kohler Control Panel Cover
(Superseded to 7041818YP)

$11.99

$

In Stock, only 1 left!

0

8

Ferris 42064

Shifter Guide

$

$

Currently unavailable

9

Ferris 5010551

Black Knob

$

$

Currently unavailable

10

Ferris 42051

Shifter Handle
(Superseded to 7042051YP)

$3.99

$

Usually ships in 2-12 days

0

11

3/8-16 x 2 GD 5 Bolt

$

$

Not available

12

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5042344

Shifter Adjustment Rod

$

$

Currently unavailable

14

Ferris 5025117

STUD, 5/16-18 x 1"

$2.49

$

Usually ships in 2-12 days

0

15

3/8 Flat Washer

$

$

Not available

16

1/4-20 Nut

$

$

Not available

17

1/4" Lock Washer

$

$

Not available

18

Ferris 5020808

SPRING, Compression

$

$

Currently unavailable

19

3/8-16 Locknut

$

$

Not available

20

3/8 Flat Washer

$

$

Not available

21

10/32 Nut

$

$

Not available

22

1/4 Nut

$

$

Not available

23

1/4" Lock Washer

$

$

Not available

24

1/4-20 x 3/4 HHCS

$

$

Not available

25

5/16-18 x 1 HHCS

$

$

Not available

26

5/16-18 SFN

$

$

Not available

27

1/4-20 x 1 HHCS

$

$

Not available

28

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

29

Ferris 30416

Engine Deck

$

$

Currently unavailable

30

5/8 Heater Hose 1-1/2" Long

$

$

Not available

31

Ferris 5050501X22

3/4" Diameter Shafting 6-1/4"

$

$

Currently unavailable

32

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 42074

Transmission Bell Crank
(Superseded to 7042074YP)

$4.49

$

Usually ships in 2-12 days

0

34

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

35

3/8 Flat WAsher

$

$

Not available

36

3/8-16 x 2 GD 5 Bolt

$

$

Not available

37

5/16-18 x 2-1/4 GD 8 Bolt

$

$

Not available

38

5/16-18 x 2-1/4 GD 8 Bolt

$

$

Not available

39

3/8-16 Lock Nut

$

$

Not available

40

5/16-18 Lock Nut

$

$

Not available

41

5/16-18 Lock Nut

$

$

Not available

42

Ferris 5041767

Coupler Link

$

$

Currently unavailable

43

Ferris 5042049B

Electric Lift Linkage

$

$

Currently unavailable

44

Ferris 5041730

Actuator Spacer

$

$

Currently unavailable
