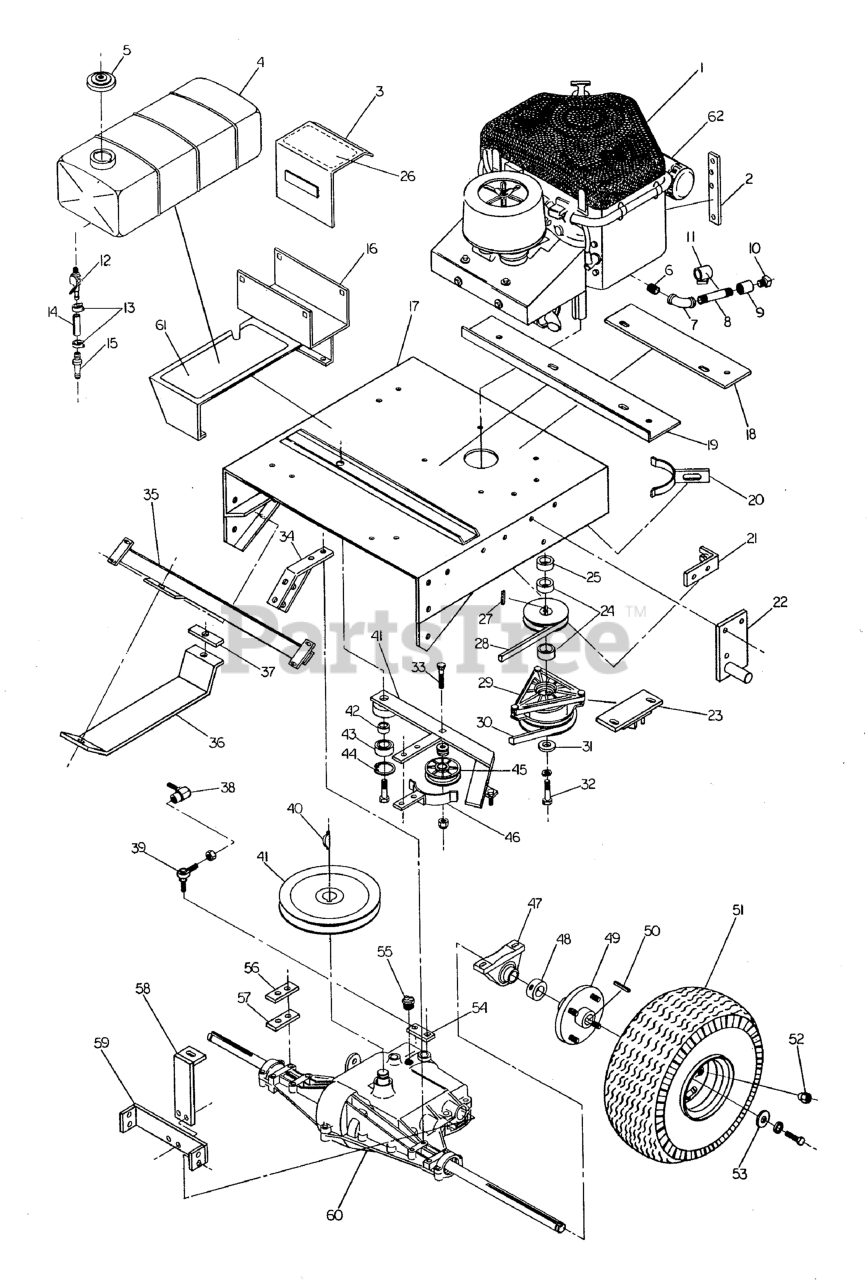

G 1820 - Ferris 61" Front Mount Mower, Gear Drive, 18hp Kohler (SN: G1530 & Above) Engine & PTO Group Parts Diagram

61" Front Mount Mower, Gear Drive, 18hp Kohler

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, 18HP Kohler (Model MV185)

$

$

Not available

2

Ferris 5042194

Oil Filter Mount

$

$

Currently unavailable

3

Ferris 5041773

Battery Cover

$55.99

$

Usually ships in 2-12 days

0

4

Ferris 5020796

Fuel Tank, 4 Gallon

$

$

Currently unavailable

4

Ferris 5041606B

Gas Tank Strap

$19.99

$

Usually ships in 2-12 days

0

5

Ferris 5020797

Gas Cap
(Superseded to 5020797FS)

$60.99

$

In Stock, only 1 left!

0

6

Ferris 21120

Close Nipple

$

$

Currently unavailable

7

Ferris 21121

Elbow 45 Degree

$

$

Currently unavailable

8

Ferris 21122

Pipe Nipple

$

$

Currently unavailable

9

Ferris 20862

Coupler

$

$

Currently unavailable

10

Ferris 5025049

Pipe Plug

$

$

Currently unavailable

11

Ferris 42332

Oil Drain Hold Down

$

$

Currently unavailable

12

Ferris 5020983

Fuel Shut-Off Valve

$36.99

$

Usually ships in 2-12 days

0

13

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

14

Fuel Line

$

$

Not available

15

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$13.99

$

In Stock, only 3 left!

0

16

Ferris 30422

Gas Tank Mount

$

$

Not available

17

Ferris 30416

Engine Deck

$

$

Currently unavailable

18

Ferris 5042368

Rear Engine Deck Support

$

$

Currently unavailable

19

Ferris 5042364

Front Engine Deck Support

$

$

Currently unavailable

20

Ferris 5042362B

Engine Belt Guide

$

$

Currently unavailable

21

Ferris 5042398

Clutch Cable Bracket

$

$

Currently unavailable

22

Ferris 5041580

Pivot Bracket - LH
(Superseded to 5045570B)

$47.99

$

Usually ships in 2-12 days

0

22

Ferris 5041582B

Pivot Bracket - RH
(Superseded to 5045571B)

$51.99

$

Usually ships in 2-12 days

0

23

Ferris 5042164

Electric Clutch Anchor

$

$

Currently unavailable

24

Ferris 5042133

SPACER, 1.01 x 1.50 x .37
(Superseded to 5042133YP)

$13.99

$

Usually ships in 2-12 days

0

25

Ferris 5020845

Transaxle Pulley

$

$

Currently unavailable

26

Ferris 5041775

SAFETY WALK

$

$

Currently unavailable

27

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

28

Ferris 5021176

Belt Ground Drive

$26.99

$

Usually ships in 2-12 days

0

29

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

$724.99

$

Usually ships in 2-12 days

0

30

Ferris 5021106

BELT, B-Section

$96.99

$

Usually ships in 2-12 days

0

30

Ferris 5021162

Belt 48" Deck

$71.99

$

Usually ships in 2-12 days

0

31

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$24.99

$

Usually ships in 2-12 days

0

32

7/16 - 20 x 3" Bolt GD 5

$

$

Not available

33

3/8-16 x 1-1/2 Carriage Bolt GD 5

$

$

Not available

34

Ferris 5042287

Torque Arm

$

$

Currently unavailable

35

Ferris 5042160B

Engine Deck Cross Member

$

$

Currently unavailable

36

Ferris 42243

Skid Plate

$

$

Currently unavailable

37

Ferris 5042363

Skid Plate Spacer

$

$

Currently unavailable

38

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$18.99

$

Usually ships in 2-12 days

0

39

Ferris 5021049

BALL JOINT, 3/8-24 Male, Studded

$28.99

$

Usually ships in 2-12 days

0

40

Ferris 5020133

Hy Pro Key

$4.99

$

Usually ships in 2-12 days

0

41

Ferris 5021027

Ground Drive Pulley

$

$

Currently unavailable

42

Ferris 5021168

INSERT, Bearing Shoulder
(Superseded to 5021168FS)

$10.99

$

In Stock, only 1 left!

0

43

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

44

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$4.49

$

In Stock, only 2 left!

0

45

Ferris 5021172

Idler Pulley

$

$

Currently unavailable

46

Ferris 5042371

Belt Guide

$

$

Currently unavailable

47

Ferris 5021095

BEARING, PILLOW BLOCK, 1
(Superseded to 5021095SM)

$77.99

$

In Stock, only 1 left!

0

48

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$23.99

$

In Stock, only 1 left!

0

49

Ferris 5020603

4-Bolt Hub
(Superseded to 5030480)

$107.99

$

Usually ships in 2-12 days

0

50

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$6.49

$

In Stock, only 1 left!

0

51

Ferris 5021094

WHEEL & TIRE ASSEMBLY, 20 x 10 x 8, Complete

$228.99

$

Usually ships in 2-12 days

0

51

Ferris 5021045

TIRE & WHEEL ASSEMBLY, 18 X 8.5 X 8

$251.99

$

Usually ships in 2-12 days

0

52

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

Usually ships in 2-12 days

0

53

Ferris 5042131

Retaining Spacer
(Superseded to 5042131FS)

$6.99

$

Usually ships in 2-12 days

0

54

Ferris 5042052

Shifting Lever

$

$

Currently unavailable

55

Ferris 5020832

Neutral Safety Switch

$

$

Currently unavailable

56

Ferris 5042367

3/16 Transmission Spacer

$

$

Currently unavailable

57

Ferris 5042366

1/4 Transmission Spacer

$

$

Currently unavailable

58

Ferris 5042385B

Transmission Support Arm

$

$

Currently unavailable

59

Ferris 5042067

Transmission Support Bracket

$

$

Currently unavailable

60

Ferris 5021069

6 Speed Transaxle

$1837.99

$

Usually ships in 2-12 days

0

61

Ferris 5042029

Gas Tank Safety Walk

$24.99

$

Usually ships in 2-12 days

0

62

Ferris 5020922X1

AIR FILTER (45 083 02)

$

$

Currently unavailable
