G 30000 (84746) - Snapper 3,250 Watt Portable Generator, 6.5hp GENERATOR MAIN UNIT Parts Diagram

3,250 Watt Portable Generator, 6.5hp

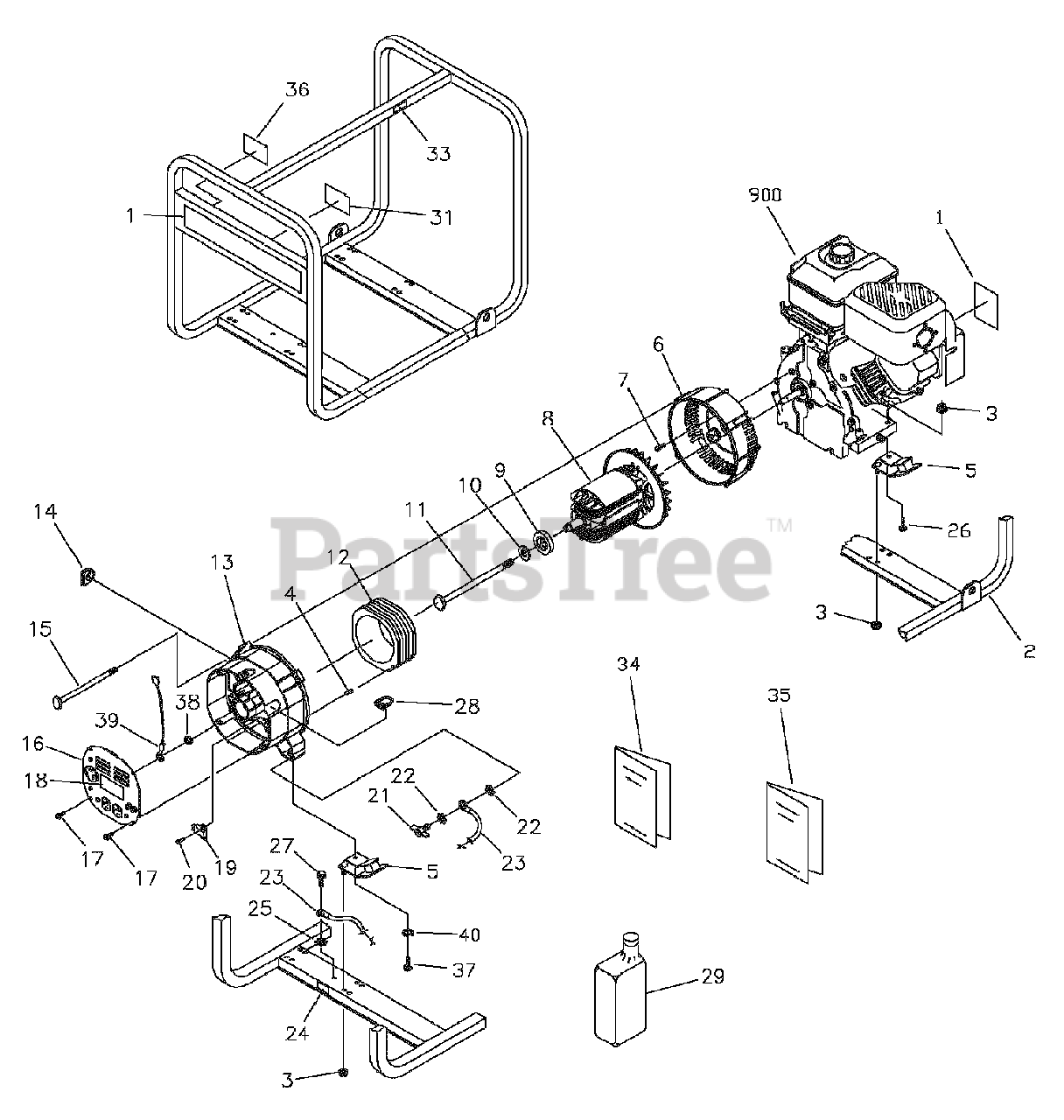

GENERATOR MAIN UNIT Parts Diagram

  • Title

1

Snapper 190103GS

SET, Decal, Unit & Air Cover

$36.99

$

Usually ships in 2-12 days

0

2

Snapper M190341GS

ASSY, Cradle

$262.99

$

Usually ships in 2-12 days

0

3

Snapper 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

4

Snapper 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 70642GS

MOUNT, Vibe

$31.99

$

In Stock, only 3 left!

0

6

Snapper 66365GS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

7

Snapper 86307GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

8

Snapper B2816JGS

ASSY, Rotor (Includes Item 9)

$170.99

$

Usually ships in 2-12 days

0

9

Snapper 65791GS

BEARING, Ball

$34.99

$

Usually ships in 2-12 days

0

10

Snapper 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 24823GS

SCREW

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 190488AGS

ASSY, Stator

$267.99

$

Usually ships in 2-12 days

0

13

Snapper SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

14

Snapper 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 86308GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 189645GS

ASSY, Control Pan (see page 18)

$104.99

$

Usually ships in 2-12 days

0

17

Snapper 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

18

Snapper 189999GS

DECAL, Control Panel

$8.49

$

Usually ships in 2-12 days

0

19

Snapper 91825GS

RECTIFIER, Brush & Bridge

$54.99

$

In Stock, only 1 left!

0

20

Snapper 66849GS

SCREW

$4.99

$

In Stock, only 1 left!

0

21

Snapper 86494GS

SCREW, Wing

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

In Stock, only 1 left!

0

23

Snapper 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

24

Snapper B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

25

Snapper 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

27

Snapper 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

28

Snapper 84242GS

GROMMET, Plastic RBC

$4.99

$

Usually ships in 2-12 days

0

29

Snapper BB3061GS

BOTTLE, Oil

$13.99

$

In Stock, only 1 left!

0

31

Snapper 191775GS

DECAL, Start Instructions

$5.99

$

Usually ships in 2-12 days

0

33

Snapper 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

34

Snapper 190675GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

35

Snapper 275092

MANUAL, Engine

$

$

Not available

36

Snapper 93639GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

37

Snapper 70644GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

39

Snapper 55199JGS

WIRE, Ground, Panel

$1.49

$

Usually ships in 2-12 days

0

40

Snapper 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

900

* ENGINE, NSP

$

$

Not available
