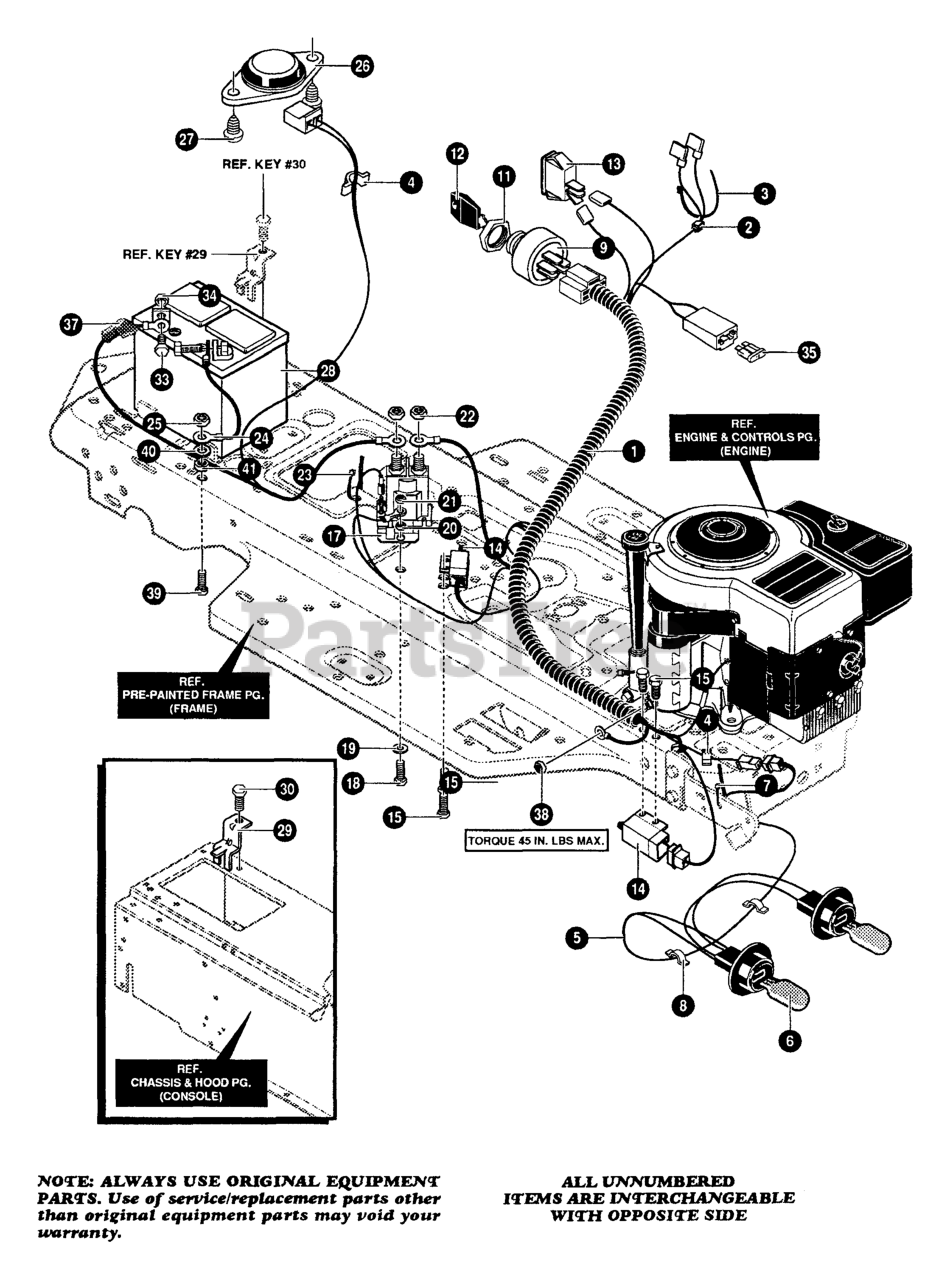

G 3554160 - Murray 40" Lawn Tractor (1997) Electrical Assembly Parts Diagram

40" Lawn Tractor

Electrical Assembly Parts Diagram

  • Title

1

Murray 331450

WIRE HARNESS

$

$

Currently unavailable

2

Murray 322298

SPLICER

$

$

Currently unavailable

3

Murray 57444

TIE, CABLE BLACK

$

$

Not available

4

Murray 41482

PRESS CLIP
(Superseded to 5041482)

$28.99

$

Usually ships in 2-12 days

0

5

Murray 303064

ASSEMBLY, LIGHT WIRE

$

$

Currently unavailable

6

Murray 52572

BULB, HEADLAMP
(Superseded to 52572GS)

$14.99

$

Usually ships in 2-12 days

0

7

Murray 57444

TIE, CABLE BLACK

$

$

Not available

8

Murray 41482

PRESS CLIP
(Superseded to 5041482)

$28.99

$

Usually ships in 2-12 days

0

9

Murray 327355MA

SWITCH-IGNITION

$20.99

$

Usually ships in 2-12 days

0

11

Murray 327352MA

NUT, 5/8.8

$

$

Not available

12

Murray 327350MA

KEY, IGNITION
(Superseded to 1714054SM)

$7.49

$

Usually ships in 2-12 days

0

13

Murray 300334MA

LIGHT SWITCH ON/OFF

$5.99

$

Usually ships in 2-12 days

0

14

Murray 57476MA

SWITCH, SCREW MOUNT

$21.99

$

Usually ships in 2-12 days

0

15

Murray 300302

SCREW, #10 X .50

$1.49

$

Usually ships in 2-12 days

0

17

Murray 53716

SOLENOID

$9.49

$

Usually ships in 2-12 days

0

18

Murray 187745

SCREW, 1/4-20 x .75
(Superseded to 187745GS)

$

$

Not available

19

Murray 1084

WASHER, FLAT .281 X 1.00 x .063

$

$

Currently unavailable

20

Murray 1502

NUT, 1/4-20

$

$

Not available

20

Murray 1502

NUT, 1/4-20

$

$

Not available

21

Murray 271172

NUT, 1/4-20

$42.99

$

Usually ships in 2-12 days

0

22

Murray 271187

NUT, 5/16-24

$

$

Currently unavailable

23

Murray 57444

TIE, CABLE BLACK

$

$

Not available

24

Murray 55511

WIRE, GROUND, 12.5"
(Superseded to 555601)

$5.49

$

Usually ships in 2-12 days

0

25

Murray 271184

NUT, 5/16-18

$1.99

$

Usually ships in 2-12 days

0

26

Murray 57547MA

SWITCH, SEAT
(Superseded to 1716368SM)

$20.99

$

In Stock, only 1 left!

0

27

Murray 160505

SCREW, 1/4-20 X .38

$1.99

$

Usually ships in 2-12 days

0

28

Murray 302257

BATTERY, 12V

$

$

Currently unavailable

29

Murray 329175

BATTERY BRACKET

$6.49

$

Usually ships in 2-12 days

0

30

Murray 995346

SCREW, 1/4-20 x .50

$1.49

$

Usually ships in 2-12 days

0

33

Murray 180020

SCREW, 1/4-20 X .75

$

$

Not available

34

Murray 271172

NUT, 1/4-20

$42.99

$

Usually ships in 2-12 days

0

35

Murray 302031MA

FUSE

Note: (INCLUDED IN WIRE HARNESS)

$6.49

$

Usually ships in 2-12 days

0

37

Murray 308201

INSULATOR, BATTERY BOOT

$10.99

$

Usually ships in 2-12 days

0

38

Murray 124818

NUT, 1/4-20

$

$

Currently unavailable

39

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

40

Murray 138485MA

WASHER, .320 X .61 X .03

$4.99

$

Usually ships in 2-12 days

0

41

Murray 1498

NUT, 5/16-18

$

$

Not available
