G 3554160 - Murray 40" Lawn Tractor (1997) Final Deck Assembly Parts Diagram

40" Lawn Tractor

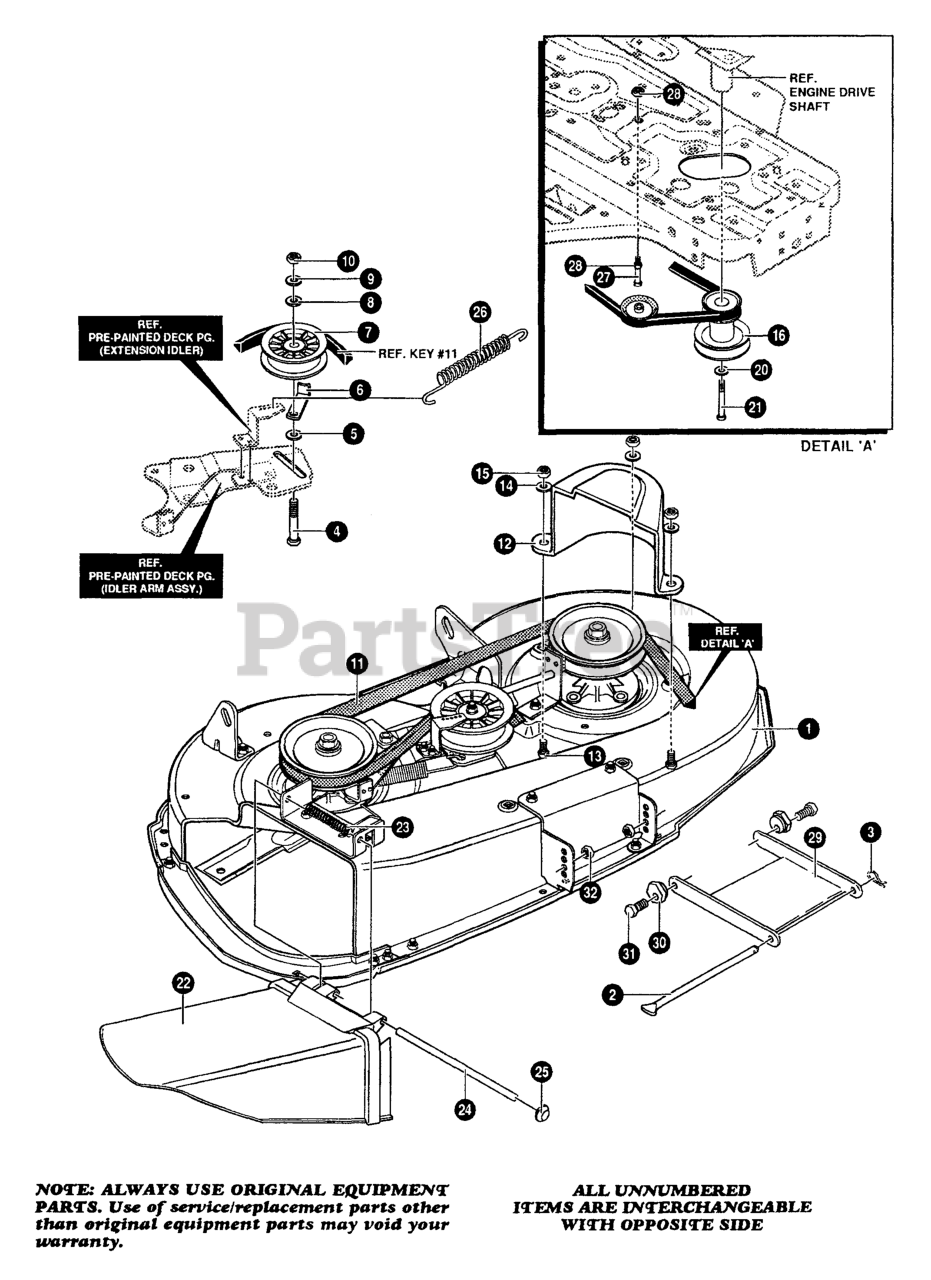

Final Deck Assembly Parts Diagram

  • Title

1

ASSEMBLY, 40" DECK

Note: (Reference Only)

$

$

Not available

2

Murray 58306MA

ROD, DECK HITCH

$67.99

$

Usually ships in 2-12 days

0

3

Murray 8260

PIN, HAIR

$

$

Currently unavailable

4

Murray 57325MA

BOLT, 3/8-16 X 2.00

$3.99

$

Usually ships in 2-12 days

0

5

Murray 25210MA

WASHER, FLAT .386 X 1.25 X .09

$3.99

$

Usually ships in 2-12 days

0

6

Murray 1346

RETAINER, BELT

$

$

Currently unavailable

7

Murray 310326MA

PULLEY, IDLER

$17.99

$

Usually ships in 2-12 days

0

8

Murray 996307MA

WASHER, FLAT .391 X 1.00 x .209

$3.49

$

Usually ships in 2-12 days

0

9

Murray 120382

WASHER, .393 X .68 X .10

$

$

Currently unavailable

10

Murray 120377

NUT, 3/8-16

$

$

Currently unavailable

11

Murray 319005MA

BELT, V 5L 81.00

$48.99

$

Usually ships in 2-12 days

0

12

Murray 328257MA

GUARD, BELT LH

$13.99

$

Usually ships in 2-12 days

0

13

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

14

Murray 120393

WASHER, FLAT .344 x .69 X .065

$

$

Not available

15

Murray 1498

NUT, 5/16-18 R

$

$

Not available

16

Murray 328034

PULLEY, ENGINE

$

$

Currently unavailable

20

Murray 120383

WASHER, .459 X .78 X.1 2

$

$

Not available

21

Murray 433146MA

SCREW, 7/16-20 x 4.25

$

$

Not available

22

Murray 304422MA

CHUTE DEFLECTOR

$

$

Not available

23

Murray 314975MA

SPRING, TORSION CHUTE DEFLECTOR

$14.99

$

Usually ships in 2-12 days

0

24

Murray 304424MA

ROD, PIVOT DECK

$51.99

$

Usually ships in 2-12 days

0

25

Murray 3535MA

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

26

Murray 337738MA

SPRING, TENSION

$11.99

$

In Stock, only 1 left!

0

27

Murray 49930

SCREW, 3/8-16 x 7.50

$3.49

$

Usually ships in 2-12 days

0

28

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

29

Murray 58305-853

BRACKET, LINK DECK FRONT

$

$

Currently unavailable

30

Murray 58247MA

NUT, ADJUST

$1.99

$

Usually ships in 2-12 days

0

31

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

32

Murray 1498

NUT, 5/16-18

$

$

Not available
