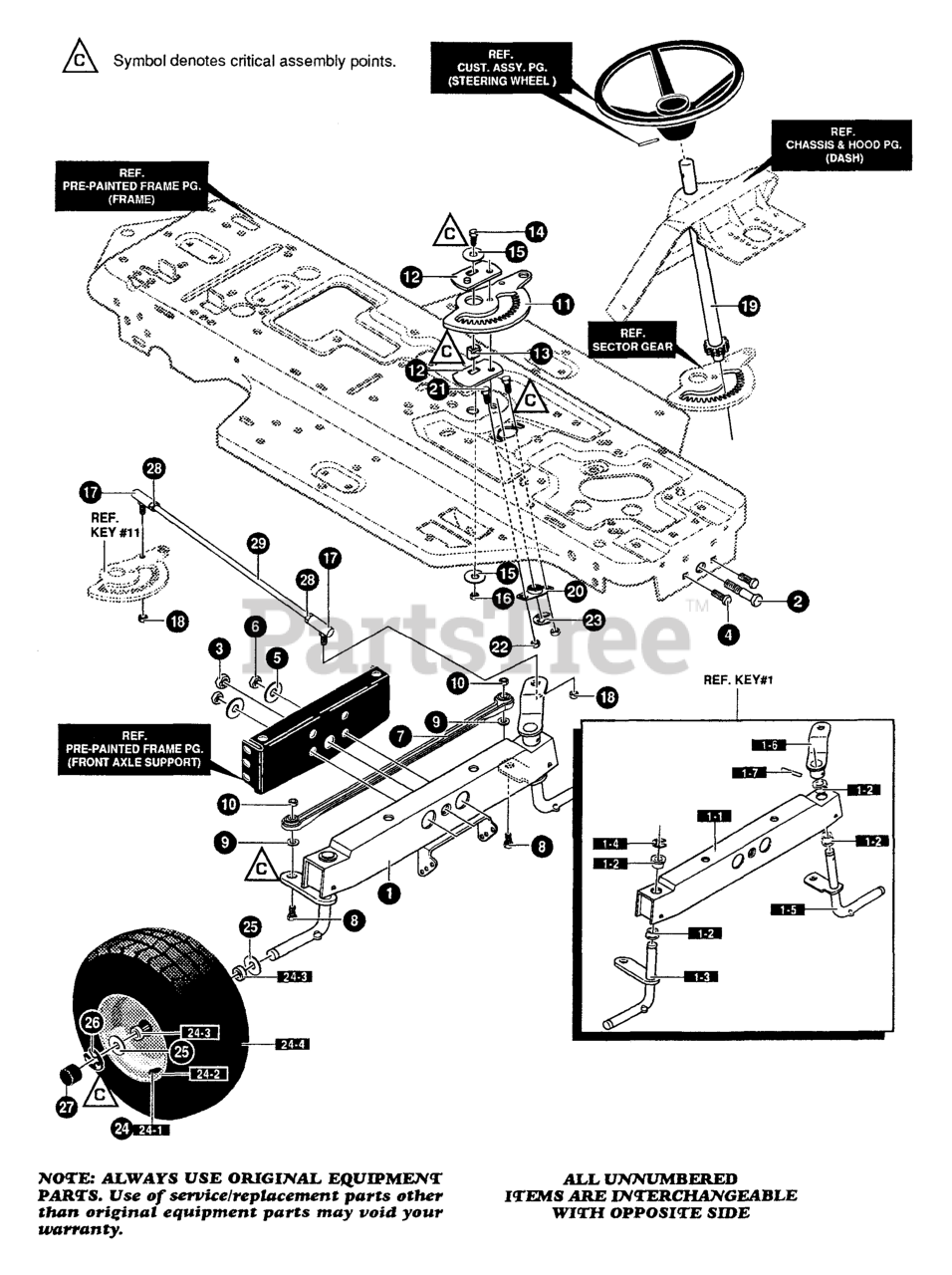

G 3554160 - Murray 40" Lawn Tractor (1997) Front Steering Assembly Parts Diagram

40" Lawn Tractor

Front Steering Assembly Parts Diagram

  • Title

1

AXLE FRONT ASSEMBLY

Note: (Order individual parts - Assembly not available)

$

$

Not available

1-1

Murray 324915

ASSEMBLY, FRONT AXLE

$

$

Currently unavailable

1-2

Murray 50546MA

BEARING, FLANGE

$11.99

$

Usually ships in 2-12 days

0

1-3

Murray 310368

SPINDLE, ASSEMBLY, RH

$

$

Currently unavailable

1-4

Murray 36625

RING, RETEX

$

$

Currently unavailable

1-5

Murray 310367

SPINDLE, ASSEMBLY, LH

$

$

Currently unavailable

1-6

Murray 327619

ARM ASSEMBLY

$

$

Currently unavailable

1-7

Murray 454565MA

PIN, SPRING

$

$

Not available

2

Murray 29616

BOLT, .625 X 1.890

$3.49

$

Usually ships in 2-12 days

0

3

Murray 274654MA

NUT, 1/2-20
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 180138MA

SCREW, 3/8-16 x 3.00

$3.99

$

Usually ships in 2-12 days

0

5

Murray 2483

WASHER, .391D X 1.25D X .07

$

$

Currently unavailable

6

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

7

Murray 302688MA

TIE ROD, 19.31

$35.99

$

Usually ships in 2-12 days

0

8

Murray 180124

SCREW, 3/8-16 X 1.25

$1.49

$

Usually ships in 2-12 days

0

9

Murray 120382

WASHER, .393 X .68 X .10

$

$

Currently unavailable

10

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 327399MA

GEAR, SECTOR

$75.99

$

Usually ships in 2-12 days

0

12

Murray 333289MA

PLATE SECTOR

$28.99

$

Usually ships in 2-12 days

0

13

Murray 330021MA

BUSHING, SECTOR

$3.99

$

Usually ships in 2-12 days

0

14

Murray 181643MA

SCREW, 3/8-24 X 1.50

$4.99

$

Usually ships in 2-12 days

0

15

Murray 000845

WASHER, FLAT .390 X 1.25 X .119

$6.49

$

Usually ships in 2-12 days

0

16

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

17

Murray 57158

BALL JOINT 3/8

$

$

Currently unavailable

18

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

19

Murray 327834MA

SHAFT, PIN-STEER

$76.99

$

Usually ships in 2-12 days

0

20

Murray 325692MA

BEARING, FLANGE

$6.49

$

In Stock, only 1 left!

0

21

Murray 326505MA

SCREW, 1/4-2020.75

$3.99

$

Usually ships in 2-12 days

0

22

Murray 46931MA

NUT, 114-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 020864

RING, RET E

$3.99

$

Usually ships in 2-12 days

0

24

Murray 692287

TIRE 6: RIM ASSEMBLY, 15 X 6.-6

$10.99

$

Usually ships in 2-12 days

0

24-1

Murray 338512

VALVE STEM

$

$

Not available

24-2

Murray 338517MA

RIM, WHEEL

$93.99

$

In Stock, only 1 left!

0

24-3

Murray 338513

BEARING

$

$

Not available

24-4

Murray 338516

TIRE, 15 X 6-6

$

$

Currently unavailable

25

Murray 642

WASHER, FLAT .755 X 1.31 X .075

$

$

Currently unavailable

26

Murray 36625

RING, RETEX

$

$

Currently unavailable

27

Murray 40394MA

HUB CAP

$3.99

$

Usually ships in 2-12 days

0

28

Murray 124925MA

NUT, 3/8-24

$3.99

$

Usually ships in 2-12 days

0

29

Murray 56190MA

DRAG LINK

$33.99

$

Usually ships in 2-12 days
