G 3554160 - Murray 40" Lawn Tractor (1997) Motion Drive Assembly (part 1) Parts Diagram

40" Lawn Tractor

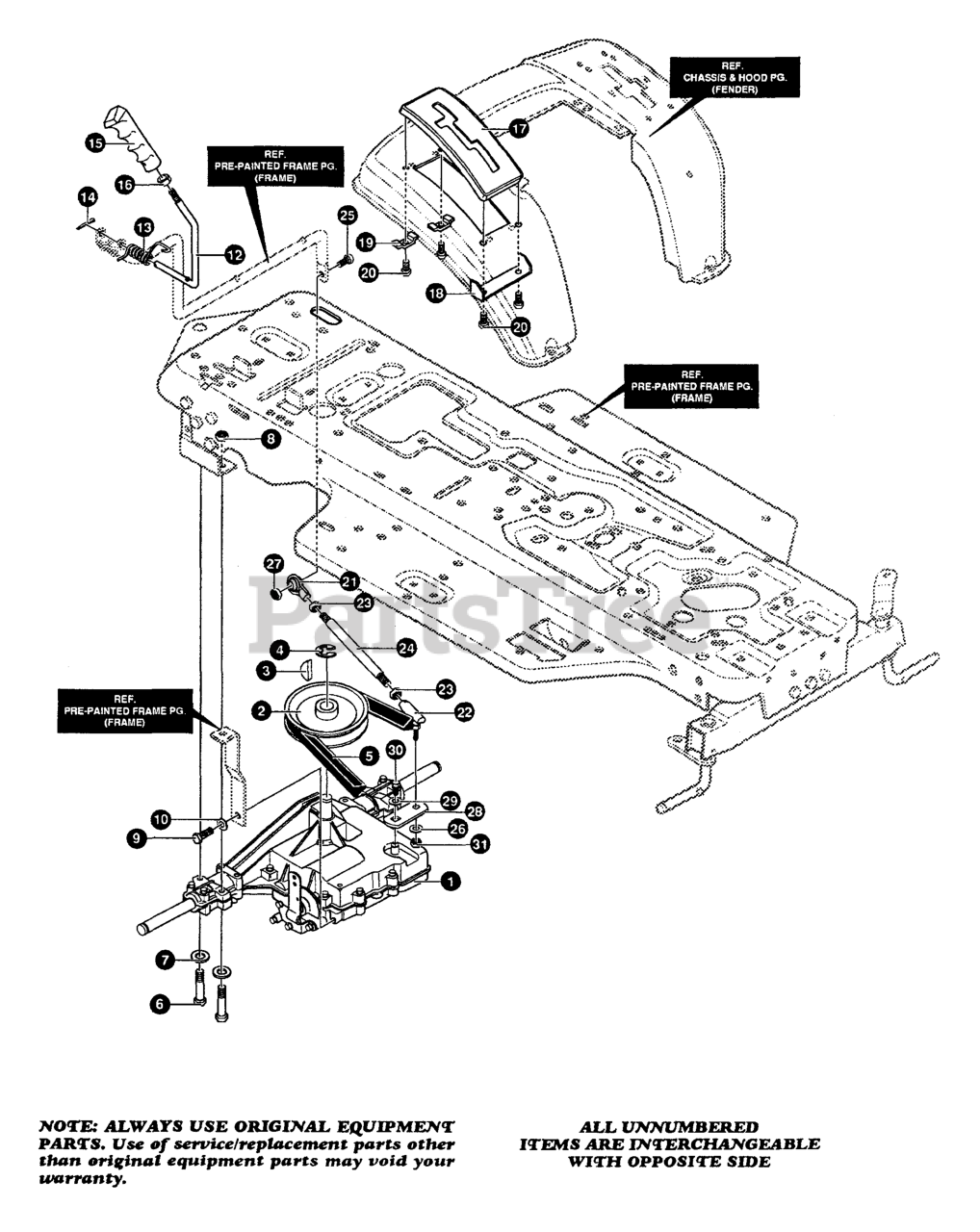

Motion Drive Assembly (part 1) Parts Diagram

  • Title

1

TRANSAXLE **

$

$

Not available

2

Murray 303109MA

PULLEY, 6.6

$54.99

$

Usually ships in 2-12 days

0

3

Murray 50795MA

KEY, HI-PRO

$5.99

$

In Stock, only 2 left!

0

4

Murray 22053

RING, RETEX
(Superseded to 5022053)

$6.49

$

Usually ships in 2-12 days

0

5

Murray 338017MA

BELT, V 4L 85.00

$35.99

$

Usually ships in 2-12 days

0

6

Murray 180091

SCREW, 5/16-18 x 2.50

$

$

Not available

7

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

8

Murray 1498

NUT, 5/16-18

$

$

Not available

9

Murray 35498

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

10

Murray 120638

WASHER, .328 X .60 X .09

$

$

Not available

12

Murray 309635

LEVER, SHIFT UPPER

$

$

Currently unavailable

13

Murray 310265

SPRING, TORSION

$3.49

$

Usually ships in 2-12 days

0

14

Murray 137185MA

PIN, COTTER

$3.49

$

In Stock, only 2 left!

0

15

Murray 331624MA

KNOB, ROUND

$5.99

$

In Stock, only 1 left!

0

16

NOT REQUIRED ON THIS UNIT

$

$

Not available

17

Murray 311209

COVER, PLASTIC

$12.99

$

Usually ships in 2-12 days

0

18

Murray 311257-853

BRACKET COVER

$1.99

$

Usually ships in 2-12 days

0

19

Murray 1341

CLAMP, SPRING

$1.99

$

Usually ships in 2-12 days

0

20

Murray 311331

SCREW, 1/4-15 x .441.53

$1.99

$

Usually ships in 2-12 days

0

21

Murray 304260

BALL JOINT, RH 3/8-24

$7.49

$

Usually ships in 2-12 days

0

22

Murray 57158

BALL JOINT, 3/8 THD SHORT STUD

$

$

Currently unavailable

23

Murray 124925MA

NUT, 3/8-24

$3.99

$

Usually ships in 2-12 days

0

24

Murray 329056

SHIFT ROD

$

$

Currently unavailable

25

Murray 39573MA

SCREW, 3/8-24 X 1.00
(Superseded to 001X20MA)

$4.49

$

In Stock, only 4 left!

0

26

Murray 120382

WASHER, .393 x .68 x .10

$

$

Currently unavailable

27

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

28

Murray 309637

BRACKET, SHIFT

$4.99

$

Usually ships in 2-12 days

0

29

Murray 57157MA

WASHER, .750 X .250

$18.99

$

Usually ships in 2-12 days

0

30

Murray 56255

SCREW, 1/4-28 X .75

$

$

Currently unavailable

31

Murray 120369

NUT, 3/8-24

$1.99

$

Usually ships in 2-12 days

0
