G 3554160 - Murray 40" Lawn Tractor (1997) Motion Drive Assembly (part 2) Parts Diagram

40" Lawn Tractor

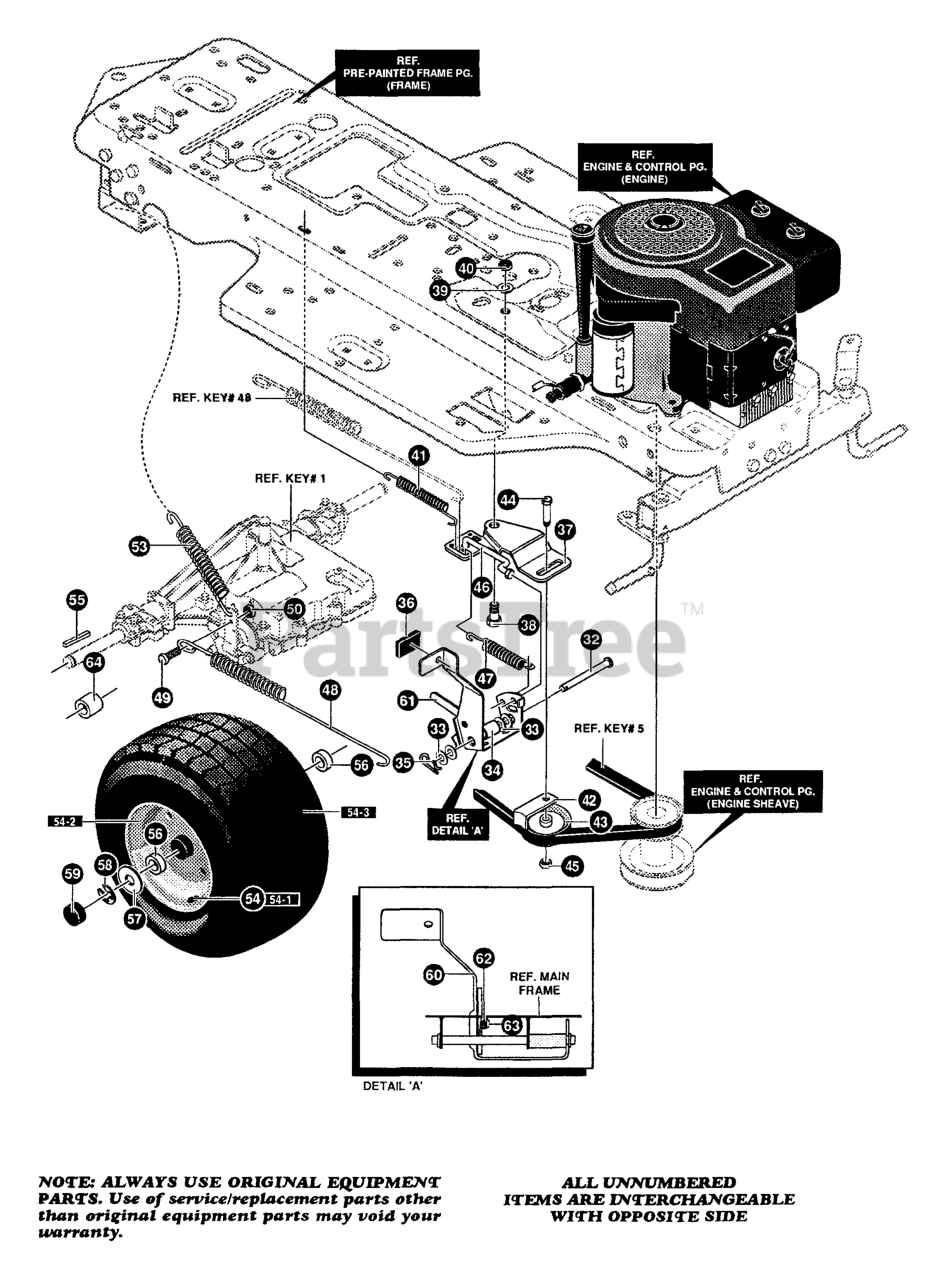

Motion Drive Assembly (part 2) Parts Diagram

  • Title

32

Murray 319676

PIN, CLEVIS

$3.49

$

Usually ships in 2-12 days

0

33

Murray 2968

WASHER, FLAT 504 X .75 X .059

$3.49

$

Usually ships in 2-12 days

0

34

Murray 331972

SPACER, SLEEVE

$1.99

$

Usually ships in 2-12 days

0

35

Murray 56180MA

PIN, HAIR

$7.99

$

Usually ships in 2-12 days

0

36

Murray 48761MA

PAD, CLUTCH/BRAKE PEDAL

$5.49

$

Usually ships in 2-12 days

0

37

Murray 321969

IDLER ARM BRACKET

$

$

Currently unavailable

38

Murray 329989MA

BOLT, .625 X .135

$3.99

$

Usually ships in 2-12 days

0

39

Murray 45602MA

WASHER, FLAT .333 X .87 X .119

$3.99

$

Usually ships in 2-12 days

0

40

Murray 1498

NUT, 5/16-18

$

$

Not available

41

Murray 327867MA

SPRING, TENSION

$17.99

$

Usually ships in 2-12 days

0

42

Murray 39659MA

RETAINER, BELT

$14.99

$

Usually ships in 2-12 days

0

43

Murray 35374

PULLEY, IDLER

$

$

Currently unavailable

44

Murray 45892MA

BOLT, 3/8-16 X 1.50

$4.49

$

Usually ships in 2-12 days

0

45

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

46

Murray 333175

CLUTCH ROD ASSEMBLY

$4.99

$

Usually ships in 2-12 days

0

47

Murray 326780MA

SPRING, TENSION

$3.99

$

Usually ships in 2-12 days

0

48

Murray 334175MA

SPRING, BRAKE

$45.99

$

Usually ships in 2-12 days

0

49

Murray 326131

BOLT, .495 X .31

$

$

Currently unavailable

50

Murray 1498

NUT, 5/16-18

$

$

Not available

53

Murray 35410

SPRING

$

$

Currently unavailable

54

Murray 692288

TIRE & RIM ASSEMBLY, 18 X 8.50-8
(Superseded to 698717)

$5.99

$

In Stock, only 1 left!

0

54-1

Murray 338512

VALVE STEM

$

$

Not available

54-2

Murray 338524

RIM, WHEEL

$

$

Currently unavailable

54-3

Murray 338549

TIRE, 18 X 8.5-8

$

$

Currently unavailable

55

Murray 52928MA

KEY, SQUARE

$1.99

$

Usually ships in 2-12 days

0

56

Murray 642

WASHER, FLAT .755 X 1.31 X .075

$

$

Currently unavailable

57

Murray 42815MA

WASHER, FLAT .755 X 1.53 X .07

$3.99

$

Usually ships in 2-12 days

0

58

Murray 36625

RING, RETEX

$

$

Currently unavailable

59

Murray 40394MA

HUB CAP

$3.99

$

Usually ships in 2-12 days

0

60

Murray 331438-853

PEDAL, BRAKE, CLUTCH

$

$

Currently unavailable

61

Murray 9016

LEVER, PARK BRAKE

$2.49

$

Usually ships in 2-12 days

0

62

Murray 57828MA

SPRING, PARKING BRAKE

$16.99

$

Usually ships in 2-12 days

0

63

Murray 57829

RIVET

$

$

Currently unavailable

64

Murray 338184

SPACER, .87 X 1.12

$

$

Currently unavailable
