G 3554160 - Murray 40" Lawn Tractor (1997) Mower Suspension Assembly Parts Diagram

40" Lawn Tractor

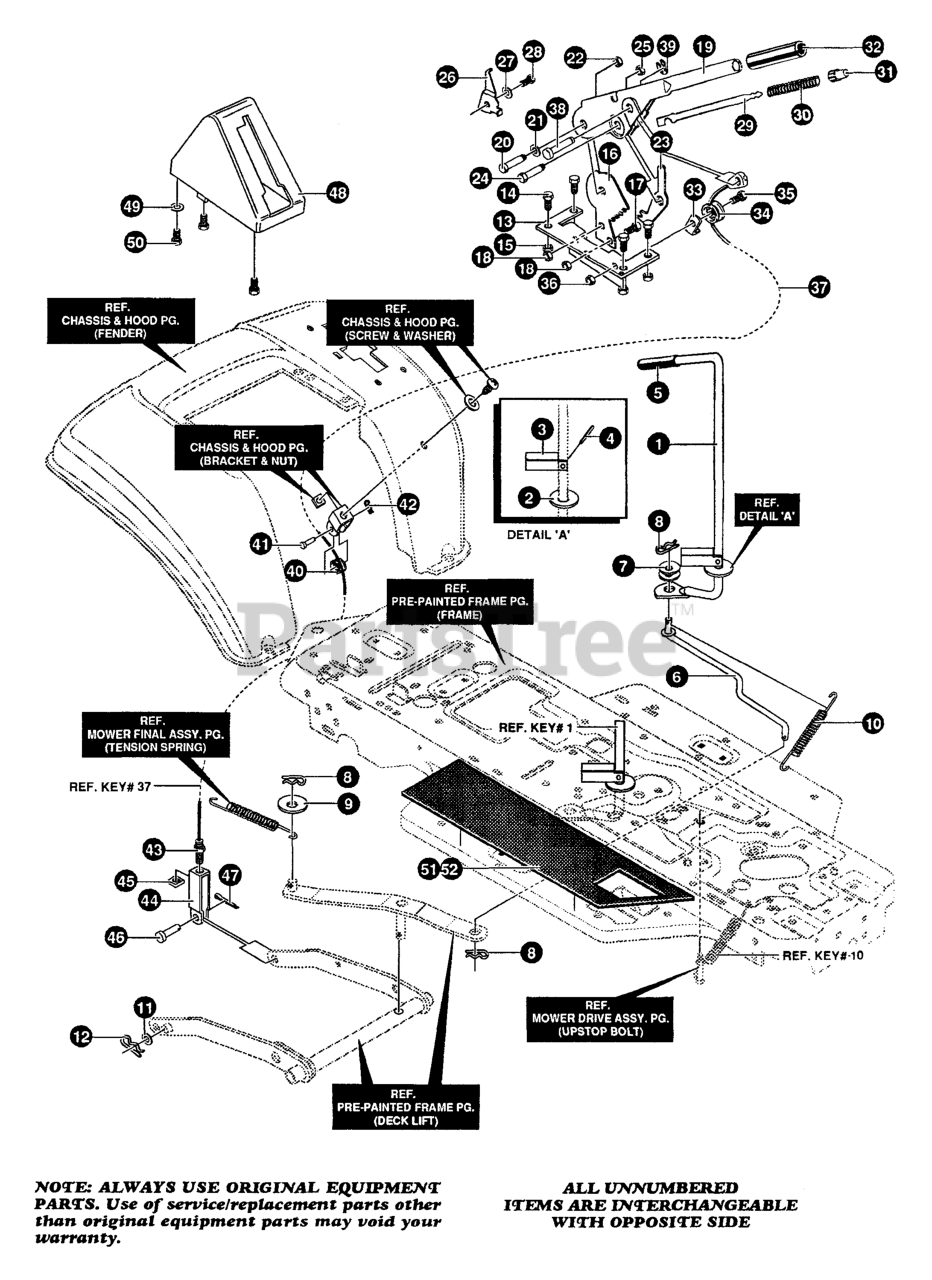

Mower Suspension Assembly Parts Diagram

  • Title

1

Murray 325591

LEVER, CLUTCH RH, PTO

$

$

Currently unavailable

2

Murray 22265MA

WASHER, FLAT .515 X 1.38 X .119

$4.99

$

Usually ships in 2-12 days

0

3

Murray 305225MA

STOP, PTO ENGAGE

$75.99

$

Usually ships in 2-12 days

0

4

Murray 326386

PIN, SPRING

$1.49

$

Usually ships in 2-12 days

0

5

Murray 321837MA

KNOB, ROUND 1.50 DIA

$6.49

$

Usually ships in 2-12 days

0

6

Murray 325590

ROD, BELCRANK LINK

$11.99

$

Usually ships in 2-12 days

0

7

Murray 274517

WASHER, FLAT .406 X .73 X .063

$1.49

$

Usually ships in 2-12 days

0

8

Murray 8260

PIN, HAIR

$

$

Currently unavailable

9

Murray 25210MA

WASHER, FLAT .386 X 1.25 X .09

$3.99

$

Usually ships in 2-12 days

0

10

Murray 325802MA

SPRING, TENSION

$33.99

$

Usually ships in 2-12 days

0

11

Murray 417098MA

WASHER, FLAT .531 X 1.06 X .063

$3.99

$

Usually ships in 2-12 days

0

12

Murray 8260

PIN, HAIR

$

$

Currently unavailable

13

Murray 313926

BRACKET, HEIGHT ADJUST

$8.49

$

Usually ships in 2-12 days

0

14

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

15

Murray 1498

NUT, 5/16-18

$

$

Not available

16

Murray 301238

QUADRANT, HEIGHT ADJUST

$

$

Currently unavailable

17

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

18

Murray 1498

NUT, 5/16-18

$

$

Not available

19

Murray 322292-853

HANDLE, LIFT

$

$

Currently unavailable

20

Murray 300171MA

BOLT, .500 X .270

$1.99

$

Usually ships in 2-12 days

0

21

Murray 996418

WASHER, FLAT .506 X .75 X .024

$

$

Currently unavailable

22

Murray 44108

NUT, 5/16-18
(Superseded to 7044108YP)

$6.99

$

In Stock, only 1 left!

0

23

Murray 301239MA

PAWL, SQUARE

$5.99

$

Usually ships in 2-12 days

0

24

Murray 300171MA

BOLT, .500 X .270

$1.99

$

Usually ships in 2-12 days

0

25

Murray 44108

NUT, 5/16-18
(Superseded to 7044108YP)

$6.99

$

In Stock, only 1 left!

0

26

Murray 9435MA

POINTER, HEIGHT ADJUST

$119.99

$

Usually ships in 2-12 days

0

27

Murray 138479

WASHER, .195 X .41 X .03

$1.99

$

Usually ships in 2-12 days

0

28

Murray 35287

SCREW, #8-32 X .38

$

$

Currently unavailable

29

Murray 303027MA

ROD, ACTUATOR-SHORT

$27.99

$

Usually ships in 2-12 days

0

30

Murray 58326MA

SPRING, HEIGHT ADJUST

$25.99

$

Usually ships in 2-12 days

0

31

Murray 58325MA

KNOB, HEIGHT ADJ PUSH BUTTON

$5.99

$

Usually ships in 2-12 days

0

32

Murray 58329MA

GRIP BRACKET, CABLE RETAINER

$5.99

$

In Stock, only 1 left!

0

33

UNKNOWN

$

$

Not available

34

Murray 48306MA

PULLEY

$24.99

$

Usually ships in 2-12 days

0

35

Murray 58336

BOLT, .375 X .375

$

$

Not available

36

Murray 1502

NUT, 1/4-20

$

$

Not available

37

Murray 57511MA

LIFT CABLE 20.75

$16.99

$

Usually ships in 2-12 days

0

38

Murray 300310MA

PIN, CLEVIS

$5.99

$

In Stock, only 1 left!

0

39

Murray 300311MA

RING, RET E

$3.49

$

Usually ships in 2-12 days

0

40

Murray 48306MA

PULLEY

$24.99

$

Usually ships in 2-12 days

0

41

Murray 300317

PIN, CLEVIS

$1.49

$

Usually ships in 2-12 days

0

42

Murray 8260

PIN, HAIR

$

$

Currently unavailable

43

Murray 120375

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

44

Murray 9405

CLEVIS, LIFT CABLE

$

$

Not available

45

Murray 120372

NUT, 1/4-20 REGSQ

$1.99

$

Usually ships in 2-12 days

0

46

Murray 39522MA

PIN, CLEVIS

$3.99

$

Usually ships in 2-12 days

0

47

Murray 121222

PIN, COTTER

$

$

Not available

48

Murray 333903MA

LIFT COVER

$8.99

$

Usually ships in 2-12 days

0

49

Murray 120392

WASHER, FLAT .281 X .63 X .065

$

$

Not available

50

Murray 300340

SCREW, #10 X .75

$1.99

$

Usually ships in 2-12 days

0

51

Murray 331834

FOOT PAD, RH, GRIT

$3.99

$

Usually ships in 2-12 days

0

52

Murray 331835

FOOT PAD, LH, GRIT

$4.49

$

Usually ships in 2-12 days

0
