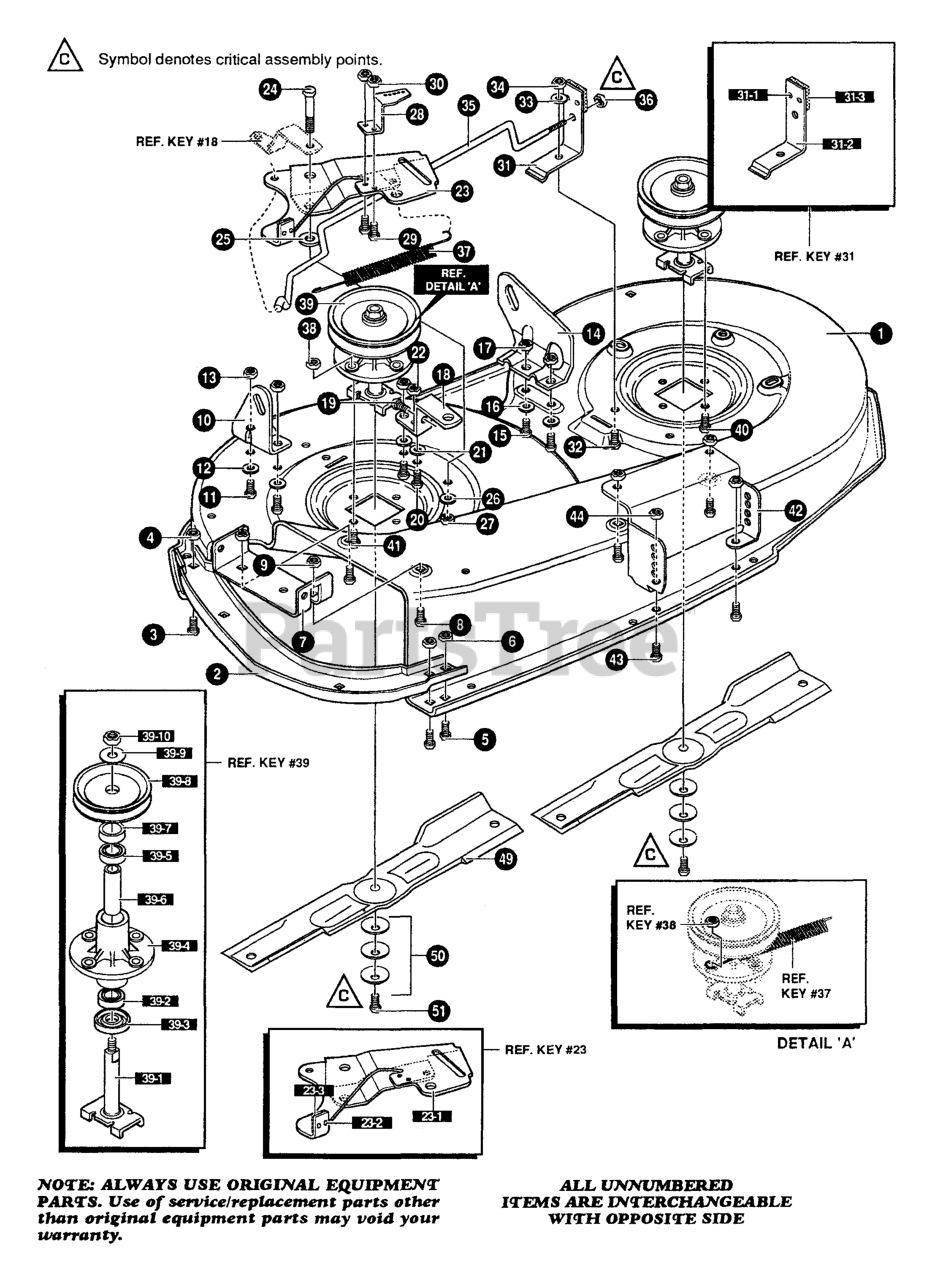

G 3554160 - Murray 40" Lawn Tractor (1997) Pre-painted Deck Assembly Parts Diagram

40" Lawn Tractor

Pre-painted Deck Assembly Parts Diagram

  • Title

1

Murray 325103

40" DECK KIT

$

$

Currently unavailable

2

Murray 326480

TOE GUARD

$

$

Currently unavailable

3

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

4

Murray 1498

NUT, 5/16-18

$

$

Not available

5

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

6

Murray 1498

NUT, 5/16-18

$

$

Not available

7

Murray 317017MA

BRACKET CHUTE MOUNT

$44.99

$

Usually ships in 2-12 days

0

8

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

9

Murray 1498

NUT, 5/16-18

$

$

Not available

10

Murray 313929MA

BRACKET, RH LIFT REAR

$56.99

$

Usually ships in 2-12 days

0

11

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

12

Murray 120393

WASHER, FLAT .344 X .69 X .065

$

$

Not available

13

Murray 1498

NUT, 5/16-18

$

$

Not available

14

Murray 310667MA

BRACKET, LH LIFT REAR

$64.99

$

Usually ships in 2-12 days

0

15

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

16

Murray 120393

WASHER, FLAT .344 X .69 x .065

$

$

Not available

17

Murray 1498

NUT, 5/16-18

$

$

Not available

18

Murray 326893

BRACE, IDLER SUPPORT

$

$

Currently unavailable

19

Murray 308231

SCREW, 1/4-20 x 1.25

$

$

Not available

20

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

21

Murray 120393

WASHER, FLAT .344 x .69 X .065

$

$

Not available

22

Murray 336171

NUT, 5/16-18

$

$

Currently unavailable

23

Murray 322120

IDLER ARM ASSEMBLY

$

$

Currently unavailable

23-1

Murray 322116

ARM IDLER

$

$

Currently unavailable

23-2

Murray 41601

RIVET

$1.49

$

Usually ships in 2-12 days

0

23-3

Murray 306973MA

BRAKE PAD - HARD

$

$

Not available

24

Murray 304420MA

BOLT, .500 X 2.15

$5.49

$

Usually ships in 2-12 days

0

25

Murray 996307MA

WASHER, FLAT .391 X 1.00 X .209

$3.49

$

Usually ships in 2-12 days

0

26

Murray 996416

WASHER, FLAT .391 X 1.00 X. 125

$

$

Currently unavailable

27

Murray 45171MA

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

28

Murray 326249

BRACKET, EXTENSION IDLER

$

$

Currently unavailable

29

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

30

Murray 1498

NUT, 5/16-18

$

$

Not available

31

Murray 321828

BLADE BRAKE ASSEMBLY

$

$

Not available

31-1

Murray 135624

RIVET

$

$

Currently unavailable

31-2

Murray 304119

BRAKE ARM

$

$

Currently unavailable

31-3

Murray 306973MA

BRAKE PAD - HARD

$

$

Not available

32

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

33

Murray 120393

WASHER, FLAT .344 X .69 X .065

$

$

Not available

34

Murray 1498

NUT, 5/16-18

$

$

Not available

35

Murray 302714MA

ROD, BRAKE

$20.99

$

Usually ships in 2-12 days

0

36

Murray 1502

NUT, 1/4-20

$

$

Not available

37

Murray 35410

SPRING

$

$

Currently unavailable

38

Murray 1498

NUT, 5/16-18

$

$

Not available

39

Murray 337734

QUILL ASSEMBLY

$

$

Currently unavailable

39-1

Murray 56425MA

SHAFT/SADDLE

$62.99

$

Usually ships in 2-12 days

0

39-2

Murray 49562MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

39-3

Murray 50616MA

DUST SHIELD

$4.99

$

In Stock, only 2 left!

0

39-4

Murray 055547MA

QUILL CASTING

$8.99

$

In Stock, only 2 left!

0

39-5

Murray 49562MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

39-6

Murray 50818MA

SPACER, SLEEVE

$11.99

$

Usually ships in 2-12 days

0

39-7

Murray 331067MA

SPACER, QUILL

$15.99

$

Usually ships in 2-12 days

0

39-8

Murray 333132

PULLEY, QUILL V5L

$

$

Currently unavailable

39-9

Murray 56365MA

WASHER, SPECIAL QUILL

$5.49

$

Usually ships in 2-12 days

0

39-10

Murray 1282MA

NUT, 7/16-20

$4.49

$

Usually ships in 2-12 days

0

40

Murray 35498

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

41

Murray 300345MA

SCREW, 5/16-18 x 1.38

$

$

Not available

42

Murray 318445

BRACKET, FRONT DECK

$

$

Currently unavailable

43

Murray 180077MA

SCREW, 5/16-1 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

44

Murray 1498

NUT, 5/16-18

$

$

Not available

49

Murray 313316MA

BLADE, 20.32

$22.99

$

Usually ships in 2-12 days

0

50

Murray 2483

WASHER, .391D X 1.25D X .07

$

$

Currently unavailable

51

Murray 39573MA

SCREW, 3/8-24 X 1.00
(Superseded to 001X20MA)

$4.49

$

In Stock, only 4 left!

0
