G 4000 - Shindaiwa Generator Generator 4000 Parts Diagram

Generator

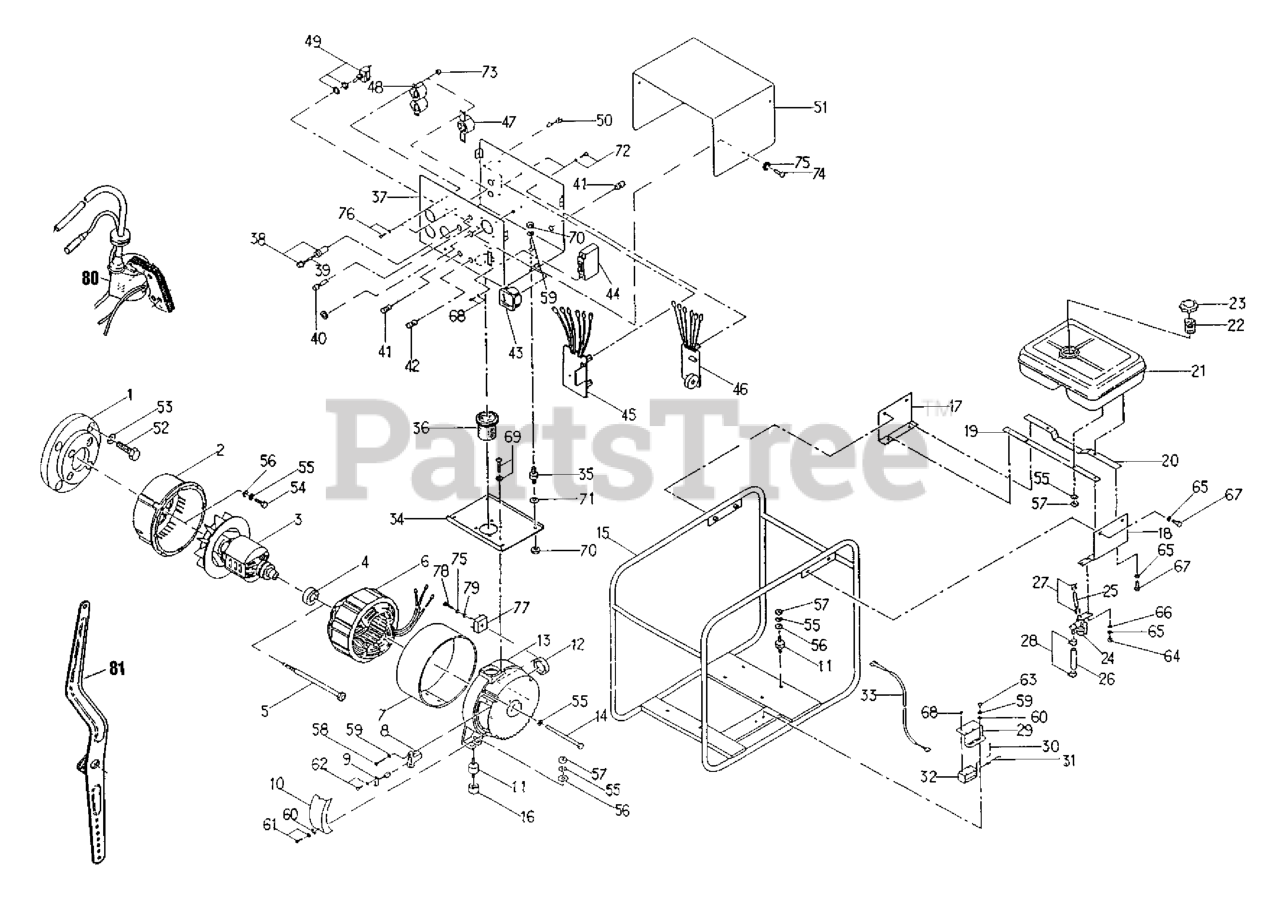

Generator 4000 Parts Diagram

  • Title

1

Echo G1600-00010

FLANGE
(Superseded to Discontinued)

$

$

Not available

2

Echo G0100-00060

BRACKET - FRONT
(Superseded to Discontinued)

$

$

Not available

3

Echo G0200-00150

ROTOR ASSY

$

$

Currently unavailable

4

Echo 00062-05DDU

BEARING, BALL
(Superseded to 02006-06205)

$14.99

$

In Stock, only 2 left!

0

5

Echo G0300-00130

THRU BOLT
(Superseded to Discontinued)

Note: UNF 5/16" 24 x 200

$

$

Not available

6

Echo G0400-00610

STATOR ASSY

$

$

Currently unavailable

7

Echo G1200-00080

STATOR COVER
(Superseded to Discontinued)

$

$

Not available

8

Echo G1000-00030

HOLDER, BRUSH

$

$

Currently unavailable

9

Echo 9114433120

BRUSH UNIT

$

$

Currently unavailable

10

Echo G1100-00020

COVER, BRUSH
(Superseded to Discontinued)

$

$

Not available

11

Echo G0600-00070

RUBBER MOUNT UNIT

$

$

Currently unavailable

12

Echo G0820-00012

CAP
(Superseded to Discontinued)

$

$

Not available

13

Echo G0800-00080

BRACKET - REAR
(Superseded to Discontinued)

Note: M8 X 135

$

$

Not available

14

Echo 00100-08135

BOLT
(Superseded to Discontinued)

$

$

Not available

15

Echo F0110-00160

TUBE, FRAME

$

$

Currently unavailable

16

Echo G1500-00030

SPACER
(Superseded to Discontinued)

$

$

Not available

17

Echo F1500-00020

BRACKET, TANK
(Superseded to Discontinued)

$

$

Not available

18

Echo F1500-00030

BRACKET, TANK
(Superseded to Discontinued)

$

$

Not available

19

Echo T0700-00010

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

20

Echo T0700-00020

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

21

Echo T0100-00070

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

22

Echo T0120-00020

FILTER, FUEL

$

$

Currently unavailable

23

Echo T0110-00010

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

24

Echo T0600-00050

STRAINER, FUEL
(Superseded to Discontinued)

$

$

Not available

25

Echo T0500-00110

HOSE - RUBBER
(Superseded to Discontinued)

$

$

Not available

26

Echo T0500-00126

HOSE - RUBBER
(Superseded to Discontinued)

$

$

Not available

27

Echo T0400-00060

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

28

Echo T0400-00030

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

29

Echo F1620-00020

BRACKET, SOLENOID
(Superseded to Discontinued)

$

$

Not available

30

Echo 0282-50160

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

31

Echo F1700-00020

SPRING
(Superseded to Discontinued)

$

$

Not available

32

Echo 9111881140

SOLENOID

Note: SB 11

$

$

Currently unavailable

33

Echo C1900-00040

WIRE ASSY
(Superseded to Discontinued)

$

$

Not available

34

Echo F1400-00020

BOX BASE
(Superseded to Discontinued)

$

$

Not available

35

Echo G0600-00130

RUBBER MOUNT
(Superseded to Discontinued)

$

$

Not available

36

Echo G0700-00020

BUSHING
(Superseded to Discontinued)

$

$

Not available

37

Echo C0211-00170

CONTROL BOX ASSY

$

$

Currently unavailable

38

Echo 01100-00010

HOLDER, FUSE
(Superseded to Discontinued)

$

$

Not available

39

Echo 01200-00010

FUSE
(Superseded to Discontinued)

Note: 10A

$

$

Not available

40

Echo 01400-220R0

NEON LAMP - 110V

$

$

Currently unavailable

41

Echo 00920-1201B

OUTPUT TERMINAL - BLACK

Note: BLACK

$

$

Currently unavailable

42

Echo 00920-1201R

OUTPUT TERMINAL - RED
(Superseded to Discontinued)

Note: RED

$

$

Not available

43

Echo 00400-300A0

METER - 150V

$

$

Currently unavailable

44

Echo 00806-01020

BREAKER - 40A
(Superseded to Discontinued)

Note: 40A

$

$

Not available

45

Echo C0310-00320

AVR UNIT
(Superseded to Discontinued)

$

$

Not available

46

Echo C1500-00010

AUTOMATIC IDLE RETURN

$

$

Currently unavailable

47

Echo 00603-25015

OUTLET - 250V 15A
(Superseded to Discontinued)

Note: 250V 15A

$

$

Not available

48

Echo 00603-12515

OUTLET - 125V 15A X 2
(Superseded to Discontinued)

Note: (125V 15A) x 2

$

$

Not available

49

Echo 01300-00003

SWITCH

$

$

Currently unavailable

50

Echo 02000-00000

CORD BUSHING

$

$

Currently unavailable

51

Echo C1000-00050

BOX COVER
(Superseded to Discontinued)

$

$

Not available

52

Echo G0900-00130

BOLT

Note: UNC 3/8" 16 x 25

$

$

Currently unavailable

53

Echo G0650-00010

LOCKWASHER
(Superseded to Discontinued)

Note: 3/8"

$

$

Not available

54

Echo 00105-08200

BOLT - 8X20
(Superseded to Discontinued)

$

$

Not available

55

Echo 00303-08000

LOCKWASHER - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

56

Echo 00300-08000

WASHER - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

57

Echo 00200-08000

NUT - 8
(Superseded to Discontinued)

Note: M8

$

$

Not available

58

Echo 00100-05200

SCREW - 5X20
(Superseded to Discontinued)

Note: M5 x 20

$

$

Not available

59

Echo 00303-05000

LOCKWASHER - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

60

Echo 00300-05000

WASHER - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

61

Echo 00112-05100

SCREW - 5X10 -- TAPPING
(Superseded to Discontinued)

Note: M5 x 10

$

$

Not available

62

Echo 00113-04060

SCREW 4X6 -- TAPPING - BRASS
(Superseded to Discontinued)

Note: M4 x 6

$

$

Not available

63

Echo 00105-05120

BOLT - 5X12
(Superseded to Discontinued)

$

$

Not available

64

Echo 00105-06120

BOLT - 6X12
(Superseded to Discontinued)

$

$

Not available

65

Echo 60303-06000

LOCKWASHER

Note: M6

$

$

Currently unavailable

66

Echo 00300-06000

WASHER - 6
(Superseded to Discontinued)

Note: M6

$

$

Not available

67

Echo 00105-06150

BOLT - 6X15
(Superseded to Discontinued)

$

$

Not available

68

Echo 00112-03080

SCREW - 3X8 -- TAPPING
(Superseded to Discontinued)

Note: M3 x 8

$

$

Not available

69

Echo 00112-05150

SCREW - 5X15 -- TAPPING
(Superseded to Discontinued)

Note: M5 x 15

$

$

Not available

70

Echo 00200-05000

NUT - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

71

Echo 00308-05000

LOCKWASHER - 5
(Superseded to Discontinued)

Note: M5

$

$

Not available

72

Echo 00112-04060

SCREW - 4X6 -- TAPPING
(Superseded to Discontinued)

Note: M4 x 6

$

$

Not available

73

Echo 00200-04000

NUT - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

74

Echo 00105-04100

BOLT - 4X10
(Superseded to Discontinued)

$

$

Not available

75

Echo 00303-04000

LOCKWASHER - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

76

Echo 00112-04100

SCREW - 4X10 -- TAPPING
(Superseded to Discontinued)

Note: M4 x 10

$

$

Not available

77

Echo 015S1-5VB10

BLOCK, DIODE

$

$

Currently unavailable

78

Echo 00100-04180

SCREW - 4X18
(Superseded to Discontinued)

Note: M4 x 18

$

$

Not available

79

Echo 00300-04000

WASHER - 4
(Superseded to Discontinued)

Note: M4

$

$

Not available

80

Echo 224-72203-01

IGNITION UNIT

Note: (Robin America part number)

$

$

Currently unavailable

81

Echo 22442-30201

LEVER, GOVERNOR
(Superseded to Discontinued)

$

$

Not available
