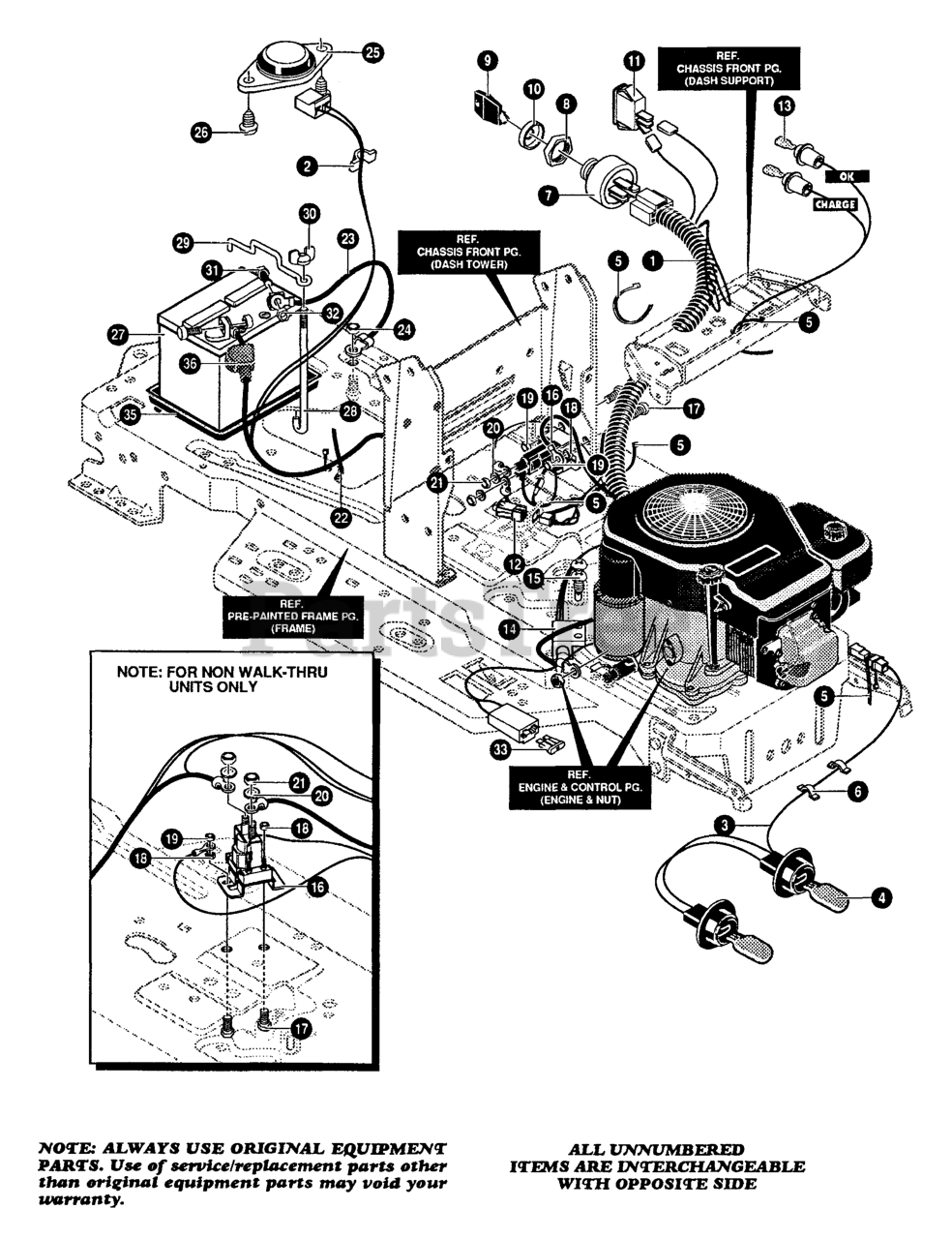

G 4315010 - Murray 43" Lawn Tractor (1997) Electrical Assembly Parts Diagram

43" Lawn Tractor

Electrical Assembly Parts Diagram

  • Title

1

Murray 334713

HARNESS

$81.99

$

Usually ships in 2-12 days

0

2

Murray 41482

PRESS CLIP, 1.380LG .255ID
(Superseded to 5041482)

$28.99

$

Usually ships in 2-12 days

0

3

Murray 303064

ASSY, LIGHT WIRE-1/4 TURN

$

$

Currently unavailable

4

Murray 52572

BULB, HEADLAMP
(Superseded to 52572GS)

$14.99

$

Usually ships in 2-12 days

0

5

Murray 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Not available

6

Murray 41482

PRESS CLIP, 1.380LG .255ID
(Superseded to 5041482)

$28.99

$

Usually ships in 2-12 days

0

7

Murray 327355MA

SWITCH-IGN. (AFTER FIRE) 3 POSN

$20.99

$

Usually ships in 2-12 days

0

8

Murray 327352MA

NUT, 5/8-8 ACME DELTA FOR BOOT

$

$

Not available

9

Murray 327350MA

KEY, IGNITION
(Superseded to 1714054SM)

$7.49

$

Usually ships in 2-12 days

0

10

Murray 300194MA

BOOT, IGN SWITCH

$6.49

$

Usually ships in 2-12 days

0

11

Murray 328826

LIGHT SWITCH PANEL MNT

$4.99

$

Usually ships in 2-12 days

0

12

Murray 320082MA

SWITCH, DOUBLE POLE NO/NC GRAY

$

$

Not available

13

Murray 57769MA

BULB, INDICATOR

$4.49

$

Usually ships in 2-12 days

0

14

Murray 57476MA

SWITCH, SCR MNT DP NC NO BLK

$21.99

$

Usually ships in 2-12 days

0

15

Murray 57220

SCREW, #12 x .50 PHPNHTAP

$1.49

$

Usually ships in 2-12 days

0

16

Murray 53716

SOLENOID

$9.49

$

Usually ships in 2-12 days

0

17

Murray 187745

SCREW, 1/4-20 x .75 HXSEMMA
(Superseded to 187745GS)

$

$

Not available

18

Murray 1502

NUT, 1/4-20 REGHEXCTRLK

$

$

Not available

19

Murray 271172

NUT, 1/4-20 REGHEXKEPS

$42.99

$

Usually ships in 2-12 days

0

20

Murray 138485MA

WASHER, EXLK .320 x .61 x .03

$4.99

$

Usually ships in 2-12 days

0

21

Murray 120368

NUT, 5/16-24 REGHEX

$1.49

$

Usually ships in 2-12 days

0

22

Murray 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Not available

23

Murray 55511

WIRE, GROUND, 12.5"
(Superseded to 555601)

$5.49

$

Usually ships in 2-12 days

0

24

Murray 271184

NUT, 5/16-18 HEXKEPS

$1.99

$

Usually ships in 2-12 days

0

25

Murray 57547MA

SWITCH, SEAT
(Superseded to 1716368SM)

$20.99

$

In Stock, only 1 left!

0

26

Murray 160505

SCREW, 1/4-20 x .38 PHPNHMA

$1.99

$

Usually ships in 2-12 days

0

27

Murray 302257

BATTERY, 12V 7 PLATE (DRY BATTERY)

$

$

Currently unavailable

28

Murray 57551MA

ROD, BATTERY

$11.99

$

Usually ships in 2-12 days

0

29

Murray 57552MA

ROD, BATTERY, TOP

$26.99

$

Usually ships in 2-12 days

0

30

Murray 325232MA

NUT, WING 1/4-20 NYLON

$4.49

$

Usually ships in 2-12 days

0

31

Murray 180020

SCREW, 1/4-20 x .75 HHC

$

$

Not available

32

Murray 271172

NUT, 1/4-20 REGHEXKEPS

$42.99

$

Usually ships in 2-12 days

0

33

UNKNOWN

$

$

Not available

35

Murray 091895MA

TRAY-BATTERY

$

$

Not available

36

Murray 335417

BOOT, BATTERY MURRAY #54148

$5.49

$

Usually ships in 2-12 days

0
