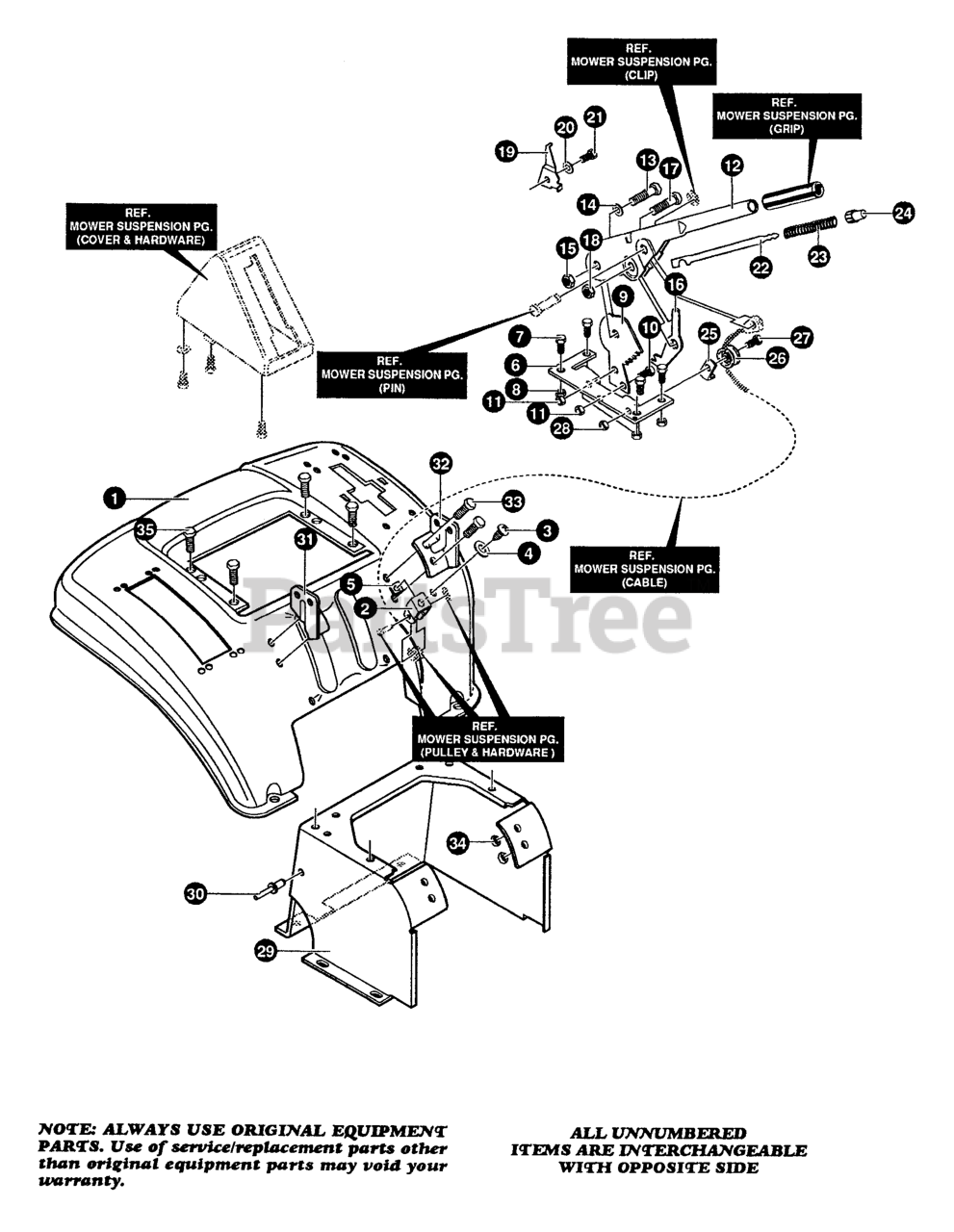

G 4315010 - Murray 43" Lawn Tractor (1997) Fender Assembly Parts Diagram

43" Lawn Tractor

Fender Assembly Parts Diagram

  • Title

1

Murray 327581-898

FENDER, WALK-THRU

$

$

Currently unavailable

2

Murray 9239

CLEVIS

$

$

Currently unavailable

3

Murray 439455

SCREW, 5/16-18 x 0.56

$1.49

$

Usually ships in 2-12 days

0

4

Murray 301551

WASHER, .344ID x 1.50D x .09

$1.49

$

Usually ships in 2-12 days

0

5

Murray 120373

NUT, 5/16-18 SQ

$1.99

$

Usually ships in 2-12 days

0

6

Murray 313926

BRACKET, HEIGHT ADJUST

$8.49

$

Usually ships in 2-12 days

0

7

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

8

Murray 1498

NUT, 5/16-18

$

$

Not available

9

Murray 301238

QUADRANT, HEIGHT ADJUST

$

$

Currently unavailable

10

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

11

Murray 1498

NUT, 5/16-18

$

$

Not available

12

Murray 322292

HANDLE, LIFT SHORT

$

$

Currently unavailable

13

Murray 300171MA

BOLT, .500 X .270

$1.99

$

Usually ships in 2-12 days

0

14

Murray 996418

WASHER, FLAT .506 x .75 x .024

$

$

Currently unavailable

15

Murray 336171

NUT, 5/16-18

$

$

Currently unavailable

16

Murray 301239MA

PAWL, SQUARE

$5.99

$

Usually ships in 2-12 days

0

17

Murray 300171MA

BOLT, .500 x .270

$1.99

$

Usually ships in 2-12 days

0

18

Murray 336171

NUT, 5/16-18

$

$

Currently unavailable

19

Murray 9435MA

POINTER

$119.99

$

Usually ships in 2-12 days

0

20

Murray 138479

WASHER, .195 x .41 x .03

$1.99

$

Usually ships in 2-12 days

0

21

Murray 35287

SCREW, #8-32 x .38

$

$

Currently unavailable

22

Murray 303027MA

ROD, ACTUATOR-SHORT

$27.99

$

Usually ships in 2-12 days

0

23

Murray 58326MA

SPRING, HEIGHT ADJUST

$25.99

$

Usually ships in 2-12 days

0

24

Murray 58325MA

KNOB, HEIGHT ADJUST PUSH BUTTON

$5.99

$

Usually ships in 2-12 days

0

25

Murray 9149

CABLE RETAINING BRACKET

$

$

Currently unavailable

26

Murray 48306MA

PULLEY, METAL

$24.99

$

Usually ships in 2-12 days

0

27

Murray 58336

BOLT, .375 x .375

$

$

Not available

28

Murray 1502

NUT, 1/4-20

$

$

Not available

29

Murray 324912

SEAT/FENDER SUPPORT

$

$

Currently unavailable

30

Murray 46763

RIVET, POP
(Superseded to 5046763)

$116.99

$

Usually ships in 2-12 days

0

31

Murray 325053

BRACKET SEAT, RH

$

$

Currently unavailable

32

Murray 325054

BRACKET SEAT, LH

$

$

Currently unavailable

33

Murray 48901

SCREW, 5/16-18 x 0.63
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

34

Murray 1498

NUT, 5/16-18

$

$

Not available

35

Murray 995346

SCREW, 1/4-20 x .50

$1.49

$

Usually ships in 2-12 days

0
