G 4315010 - Murray 43" Lawn Tractor (1997) Final Deck Assembly Parts Diagram

43" Lawn Tractor

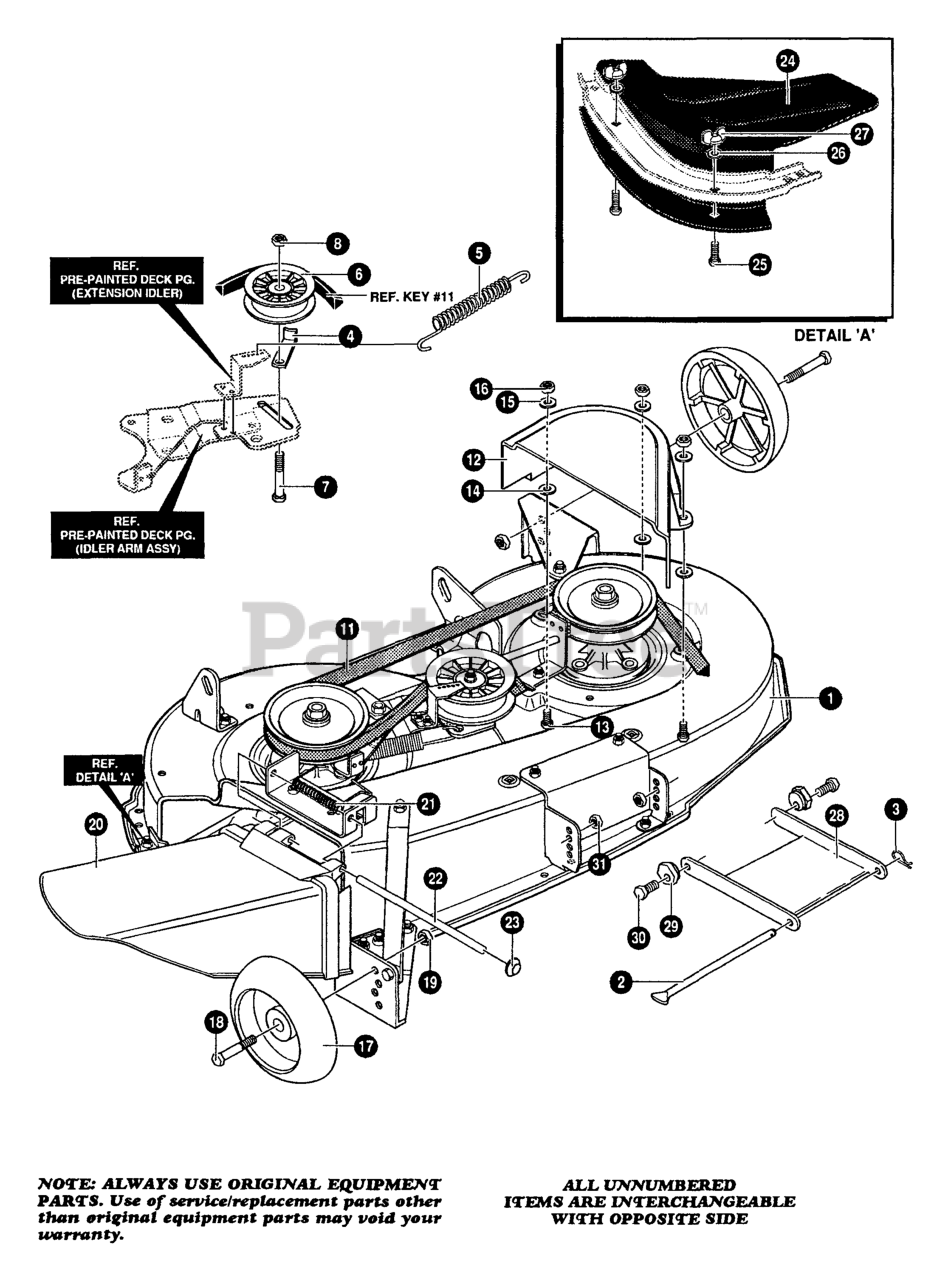

Final Deck Assembly Parts Diagram

  • Title

1

43" DECK, W/ZIRKS

Note: (Reference Only)

$

$

Not available

2

Murray 58306MA

ROD, DECK HITCH

$67.99

$

Usually ships in 2-12 days

0

3

Murray 8260

PIN, HAIR

$

$

Currently unavailable

4

Murray 1346

RETAINER, BELT

$

$

Currently unavailable

5

Murray 314107MA

SPRING, TENSION

$10.99

$

Usually ships in 2-12 days

0

6

Murray 310326MA

PULLEY, IDLER

$17.99

$

Usually ships in 2-12 days

0

7

Murray 126416MA

BOLT, 3/8-16 x 1.75
(Superseded to 002X92MA)

$4.99

$

In Stock, only 4 left!

0

8

Murray 45171MA

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

11

Murray 314108MA

BELT, V 5L 86.00

$60.99

$

Usually ships in 2-12 days

0

12

Murray 333073MA

GUARD, BELT, LH

$27.99

$

Usually ships in 2-12 days

0

13

Murray 57101

BOLT, 5/16-18 x .75

$

$

Currently unavailable

14

Murray 309436MA

PUSHNUT, BOLT RETAINER

$3.99

$

Usually ships in 2-12 days

0

15

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

16

Murray 1498

NUT, 5/16-18

$

$

Not available

17

Murray 302611MA

GAUGE WHEEL

$26.99

$

Usually ships in 2-12 days

0

18

Murray 23763

BOLT, .500 X 1.390

$

$

Currently unavailable

19

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

20

Murray 304422MA

CHUTE DEFLECTOR

$

$

Not available

21

Murray 314975MA

SPRING, TORSION

$14.99

$

Usually ships in 2-12 days

0

22

Murray 304424MA

ROD, PIVOT DECK

$51.99

$

Usually ships in 2-12 days

0

23

Murray 3535MA

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

24

Murray 326369-830

MULCHER PLUG

$

$

Currently unavailable

25

Murray 126216

BOLT, 5/16-18 x .75

$

$

Currently unavailable

26

Murray 138485MA

WASHER, .320 x .61 x .03

$4.99

$

Usually ships in 2-12 days

0

27

Murray 327457MA

NUT, WING

$3.49

$

Usually ships in 2-12 days

0

28

Murray 58305-830

BRACKET, LINK DECK FRONT

$

$

Currently unavailable

29

Murray 58247MA

NUT, ADJUST

$1.99

$

Usually ships in 2-12 days

0

30

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

31

Murray 1498

NUT, 5/16-18

$

$

Not available
