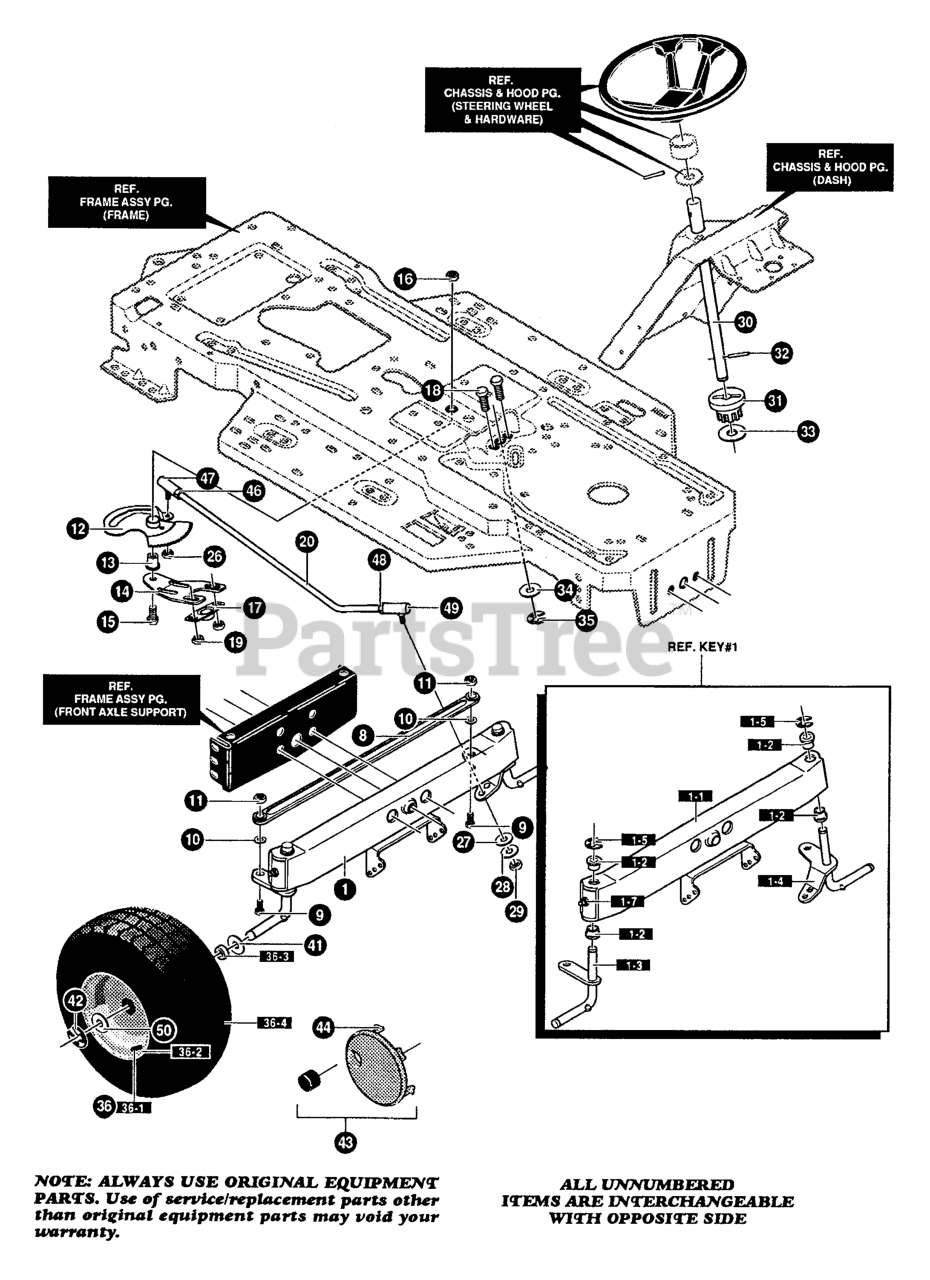

G 4315010 - Murray 43" Lawn Tractor (1997) Front Steering Assembly Parts Diagram

43" Lawn Tractor

Front Steering Assembly Parts Diagram

  • Title

1

ASSEMBLY, AXLE FRONT

Note: (Order individual parts - Assembly not available)

$

$

Not available

1-1

Murray 333136

ASSEMBLY, FRONT AXLE SUSPENDED

$

$

Currently unavailable

1-2

Murray 52407MA

SPINDLE BEARING

$12.99

$

Usually ships in 2-12 days

0

1-3

Murray 338475

ASSEMBLY, SPINDLE, RH

$

$

Currently unavailable

1-4

Murray 338474

ASSEMBLY, SPINDLE, LH

$

$

Currently unavailable

1-5

Murray 36625

RING, RETEX

$

$

Currently unavailable

1-7

Murray 706

ZERK, GREASE FITTING

$2.49

$

Usually ships in 2-12 days

0

8

Murray 304590MA

TIE ROD ASSEMBL

$37.99

$

Usually ships in 2-12 days

0

9

Murray 180128MA

SCREW, 3/8-16 X 1.75

$3.99

$

Usually ships in 2-12 days

0

10

Murray 120382

WASHER, .393 x .68 x .10

$

$

Currently unavailable

11

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

12

Murray 313634MA

ASSEMBLY, SECTOR GEAR

$198.99

$

Usually ships in 2-12 days

0

13

Murray 313629MA

BEARING, SLEEVE

$18.99

$

Usually ships in 2-12 days

0

14

Murray 313671-830

SUPPORT, SECTOR GEAR

$

$

Currently unavailable

15

Murray 315196

SCREW, 1/2-20 x 3.00

$2.49

$

Usually ships in 2-12 days

0

16

Murray 274654MA

NUT, 1/2-20
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

17

Murray 302498MA

BEARING, SEAL

$12.99

$

Usually ships in 2-12 days

0

18

Murray 323731

SCREW, 5/16-24 x 0.75

$1.99

$

Usually ships in 2-12 days

0

19

Murray 71100MA

NUT, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, only 2 left!

0

20

Murray 321449MA

DRAG LINK

$99.99

$

Usually ships in 2-12 days

0

26

Murray 412349MA

NUT, 3/8-24

$4.99

$

Usually ships in 2-12 days

0

27

Murray 120396

WASHER, FLAT .531 X 1.06 X .095

$

$

Not available

28

Murray 120383

WASHER, .459 X .78 X. 12

$

$

Not available

29

Murray 271506

NUT, 7/16-20

$1.99

$

Usually ships in 2-12 days

0

30

Murray 332530

SHAFT, STEERING

$

$

Currently unavailable

31

Murray 302314MA

PINION, STEERING

$13.99

$

Usually ships in 2-12 days

0

32

Murray 302524MA

PIN, DOWEL STEER

$6.49

$

Usually ships in 2-12 days

0

33

Murray 315194

WASHER, FLAT .51 x 1.38 x .043

$2.49

$

Usually ships in 2-12 days

0

34

Murray 996418

WASHER, FLAT .506 x .75 x .024

$

$

Currently unavailable

35

Murray 020864

RING, RET E

$3.99

$

Usually ships in 2-12 days

0

36

Murray 338127

TIRE & RIM ASSEMBLY, PU 15 X 6.0 X 6

$

$

Currently unavailable

36-1

Murray 338512

VALVE STEM

$

$

Not available

36-2

Murray 338517MA

RIM, WHEEL

$93.99

$

In Stock, only 1 left!

0

36-3

Murray 338513

BEARING

$

$

Not available

36-4

Murray 338515

TIRE, 15 X 6-6

$

$

Currently unavailable

41

Murray 642

WASHER, FLAT .755 x 1.31 x .075

$

$

Currently unavailable

42

Murray 36625

RING, RETEX

$

$

Currently unavailable

43

Murray 304444

HUB CAP, 6"

$

$

Currently unavailable

44

Murray 306669

CLIP, HUBCAP TINN

$

$

Not available

46

Murray 124925MA

NUT, 3/8-24

$3.99

$

Usually ships in 2-12 days

0

47

Murray 57158

BALL JOINT, 3/8

$

$

Currently unavailable

48

Murray 272123MA

NUT, 7/16-20

$3.99

$

Usually ships in 2-12 days

0

49

Murray 302865MA

BALL JOINT, 7/16-20

$37.99

$

Usually ships in 2-12 days

0

50

Murray 42815MA

WASHER, FLAT .755 x 1.53 x .07

$3.99

$

Usually ships in 2-12 days

0
