G 4315010 - Murray 43" Lawn Tractor (1997) Motion Drive Assembly (part 1) Parts Diagram

43" Lawn Tractor

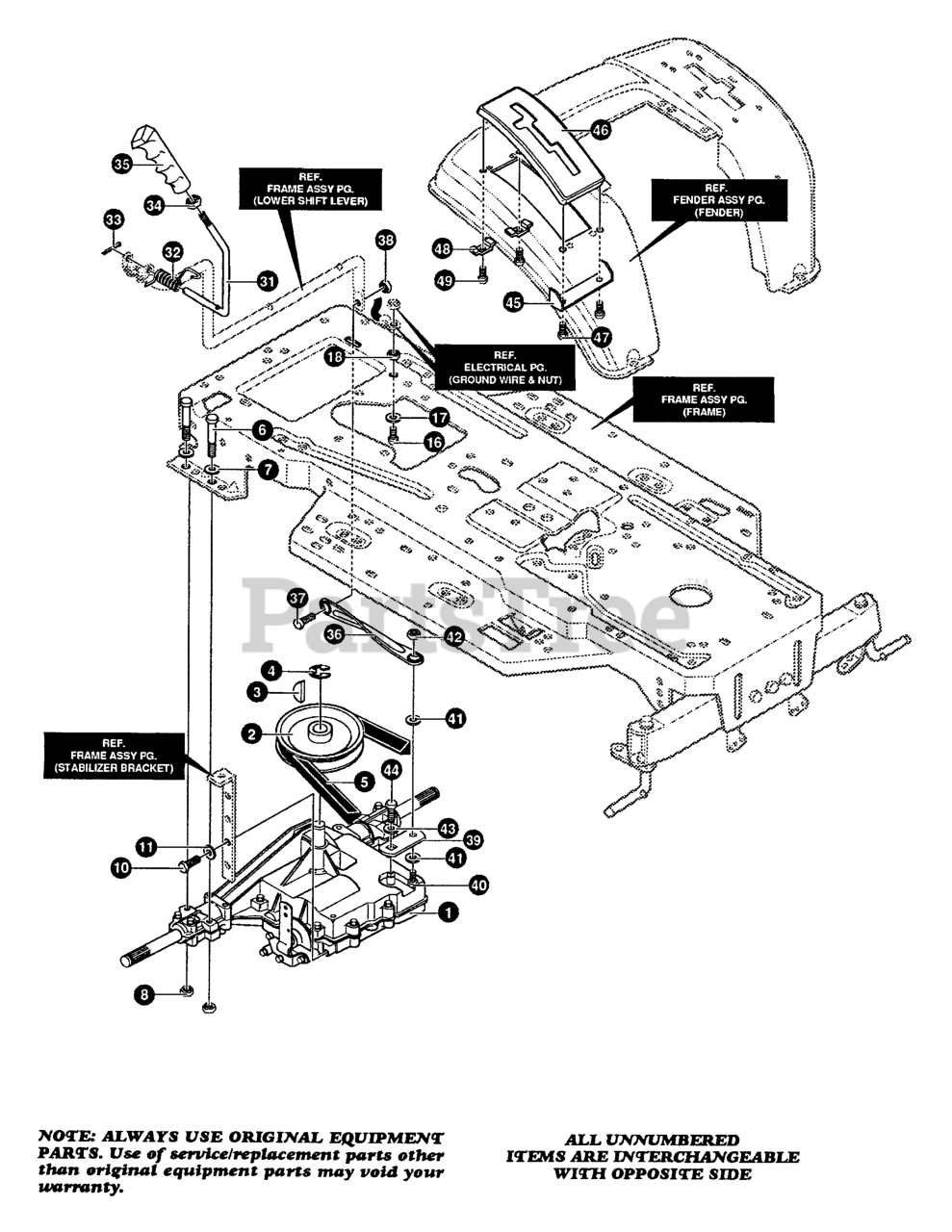

Motion Drive Assembly (part 1) Parts Diagram

  • Title

1

TRANSAXLE, 4WS **

$

$

Not available

2

Murray 303109MA

PULLEY, 6.6

$54.99

$

Usually ships in 2-12 days

0

3

Murray 50795MA

KEY, HI-PRO 606

$5.99

$

In Stock, only 2 left!

0

4

Murray 22053

RING, RETEX
(Superseded to 5022053)

$6.49

$

Usually ships in 2-12 days

0

5

Murray 314120MA

BELT, V 4L 87.25

$39.99

$

Usually ships in 2-12 days

0

6

Murray 180091

SCREW, 5/16-18 x 2.50

$

$

Not available

7

Murray 120393

WASHER, FLAT .344 x .69 x .065

$

$

Not available

8

Murray 1498

NUT, 5/16-18

$

$

Not available

10

Murray 35498

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

11

Murray 120638

WASHER, .328 x .60 x .09

$

$

Not available

16

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

17

Murray 138538

WASHER, .320 x .61 x .03

$1.49

$

Usually ships in 2-12 days

0

18

Murray 1498

NUT, 5/16-18

$

$

Not available

31

Murray 324798

LEVER, SHIFT UPPER

$17.99

$

Usually ships in 2-12 days

0

32

Murray 310265

SPRING, TORSION

$3.49

$

Usually ships in 2-12 days

0

33

Murray 137185MA

PIN, COTTER

$3.49

$

In Stock, only 2 left!

0

34

Murray 120238

NUT, 1/2-13

$

$

Not available

35

Murray 306690MA

HANDLE 1/2-13

$5.49

$

Usually ships in 2-12 days

0

36

Murray 314965

LINK, TIE ROD SHIFT

$19.99

$

Usually ships in 2-12 days

0

37

Murray 180124

SCREW, 3/8-16 x 1.25

$1.49

$

Usually ships in 2-12 days

0

38

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

39

Murray 309637

BRACKET, SHIFT

$4.99

$

Usually ships in 2-12 days

0

40

Murray 180124

SCREW, 3/8-16 x 1.25

$1.49

$

Usually ships in 2-12 days

0

41

Murray 120394

WASHER, FLAT .406 x .81 x .065

$1.99

$

Usually ships in 2-12 days

0

42

Murray 1499MA

NUT, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

43

Murray 57157MA

WASHER, .750 x .250

$18.99

$

Usually ships in 2-12 days

0

44

Murray 56255

SCREW, 1/4-28 x .75

$

$

Currently unavailable

45

Murray 311257-830

BRACKET COVER

$

$

Currently unavailable

46

Murray 311209

COVER PLASTIC

$12.99

$

Usually ships in 2-12 days

0

47

Murray 311331

SCREW, 1/4-15 x .44/.53

$1.99

$

Usually ships in 2-12 days

0

48

Murray 1341

CLAMP, SPRING

$1.99

$

Usually ships in 2-12 days

0

49

Murray 311331

SCREW, 1/4-15 x .44/.53

$1.99

$

Usually ships in 2-12 days

0
