G 4315010 - Murray 43" Lawn Tractor (1997) Mower Suspension Assembly Parts Diagram

43" Lawn Tractor

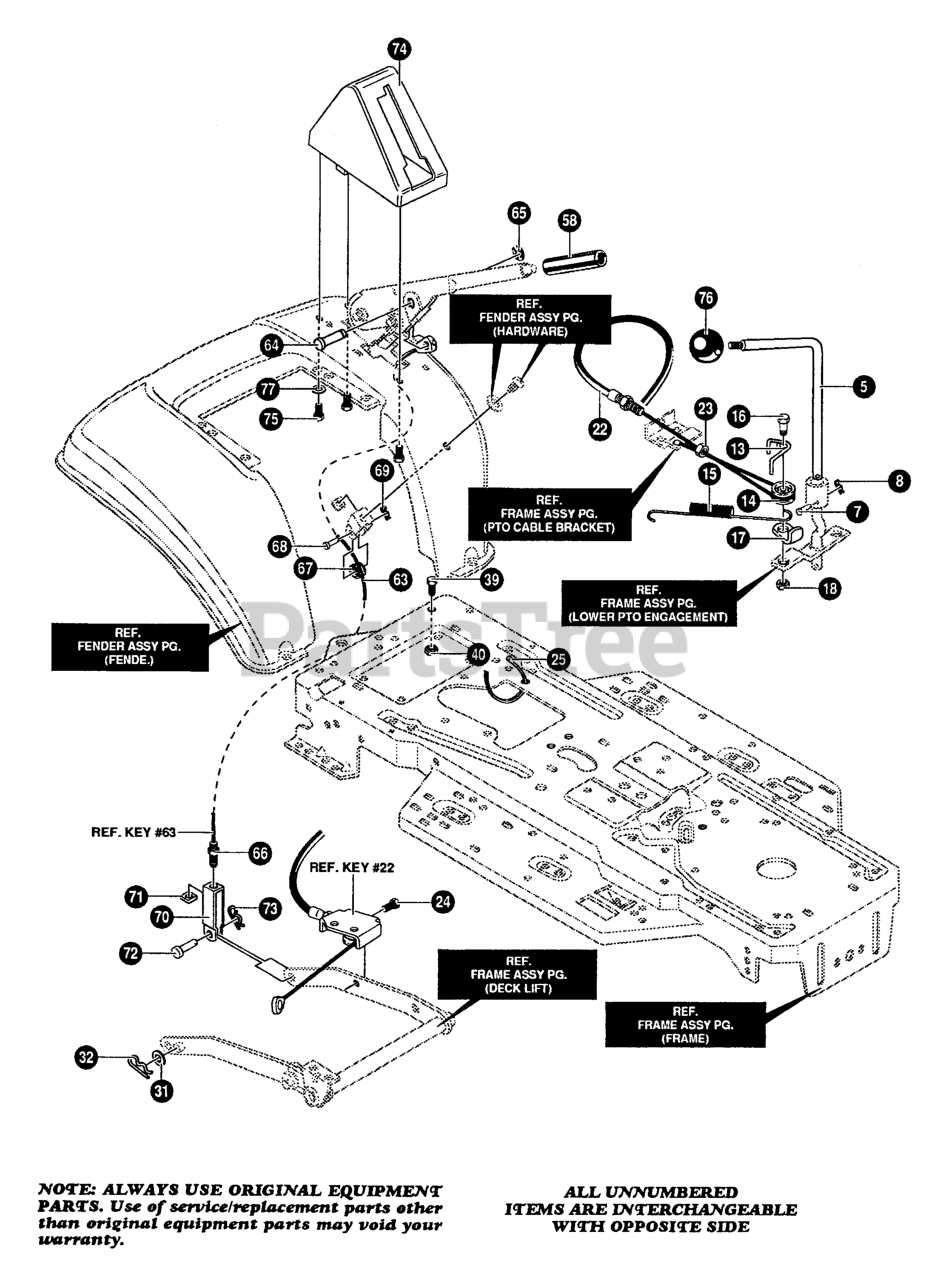

Mower Suspension Assembly Parts Diagram

  • Title

5

Murray 338049

LEVER, PTO UPPER

$6.49

$

Usually ships in 2-12 days

0

7

Murray 578309MA

PIN, CLEVIS

$5.49

$

Usually ships in 2-12 days

0

8

Murray 36368MA

PIN, HAIR

$3.99

$

Usually ships in 2-12 days

0

13

Murray 324032MA

SPRING, CABLE KEEPER

$3.99

$

Usually ships in 2-12 days

0

14

Murray 48306MA

PULLEY, METAL

$24.99

$

Usually ships in 2-12 days

0

15

Murray 316648MA

SPRING

$6.49

$

Usually ships in 2-12 days

0

16

Murray 324045

BOLT, .375 x .565

$4.99

$

Usually ships in 2-12 days

0

17

Murray 1288MA

BRACKET, CABLE RETAINER

$

$

Not available

18

Murray 1502

NUT, 1/4-20

$

$

Not available

22

Murray 324055MA

ASSEMBLY, CABLE PTO ENGAGE

$74.99

$

Usually ships in 2-12 days

0

23

Murray 120613

NUT, 1/4-28

$1.99

$

Usually ships in 2-12 days

0

24

Murray 35498

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

25

Murray 57444

TIE, CABLE

$

$

Not available

31

Murray 417098MA

WASHER, FLAT .531 x 1.06 x .063

$3.99

$

Usually ships in 2-12 days

0

32

Murray 8260

PIN, HAIR

$

$

Currently unavailable

39

Murray 180077MA

SCREW, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

40

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

58

Murray 58329MA

GRIP, W/HOLE BLACK

$5.99

$

In Stock, only 1 left!

0

63

Murray 314177MA

ASSEMBLY, CABLE LIFT

$31.99

$

Usually ships in 2-12 days

0

64

Murray 300310MA

PIN, CLEVIS

$5.99

$

In Stock, only 1 left!

0

65

Murray 300311MA

RING, RET E

$3.49

$

Usually ships in 2-12 days

0

66

Murray 120375

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

67

Murray 48306MA

PULLEY, METAL

$24.99

$

Usually ships in 2-12 days

0

68

Murray 300317

PIN, CLEVIS

$1.49

$

Usually ships in 2-12 days

0

69

Murray 8260

PIN, HAIR

$

$

Currently unavailable

70

Murray 9405

CLEVIS, LIFT CABLE

$

$

Not available

71

Murray 120372

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

72

Murray 39522MA

PIN, CLEVIS

$3.99

$

Usually ships in 2-12 days

0

73

Murray 121222

PIN, COTTER

$

$

Not available

74

Murray 333903MA

LIFT COVER

$8.99

$

Usually ships in 2-12 days

0

75

Murray 300340

SCREW, #10 x .75

$1.99

$

Usually ships in 2-12 days

0

76

Murray 321837MA

KNOB, ROUND

$6.49

$

Usually ships in 2-12 days

0

77

Murray 120392

WASHER, FLAT .281 x .63 x .065

$

$

Not available
